Core Understanding

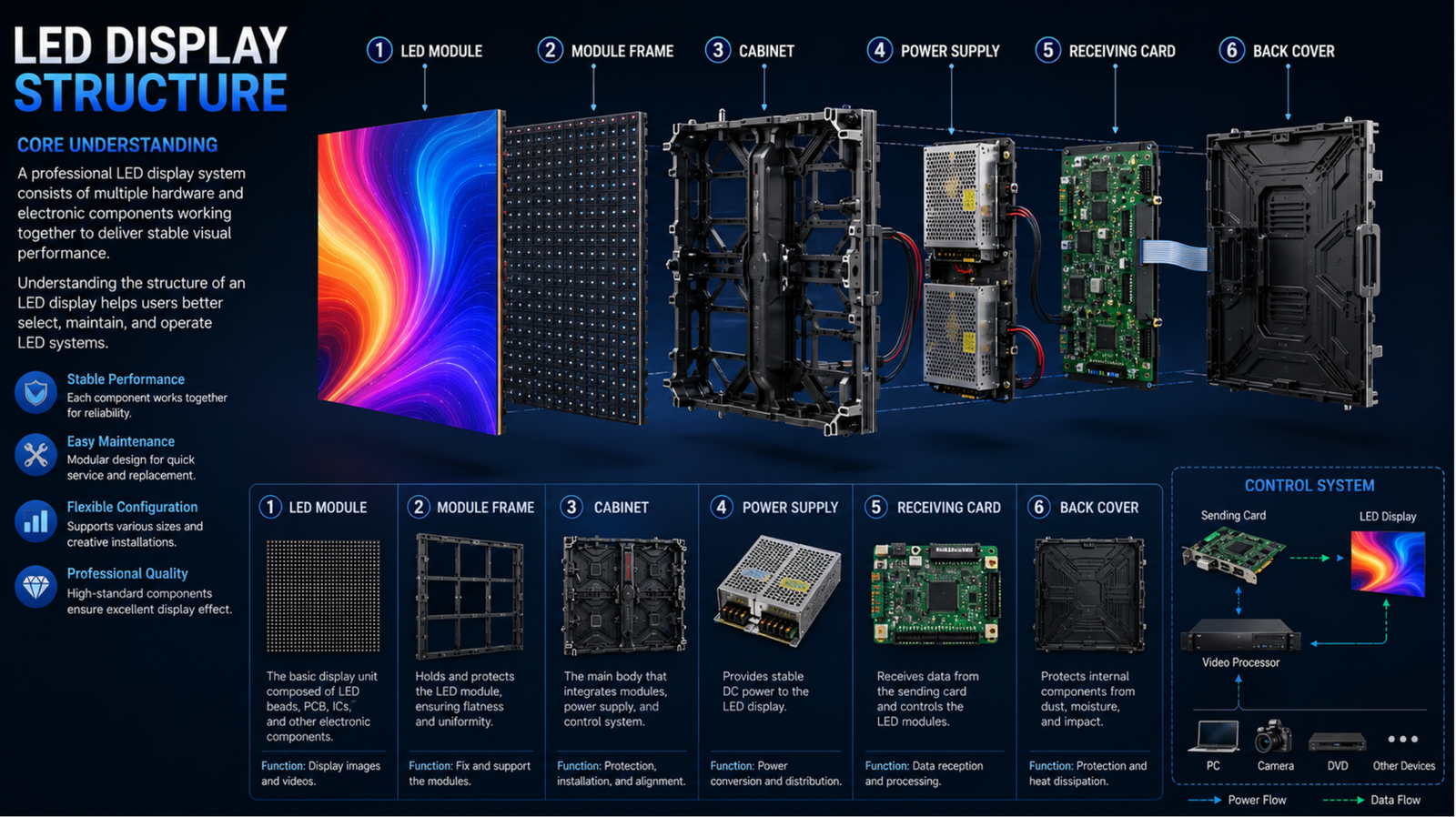

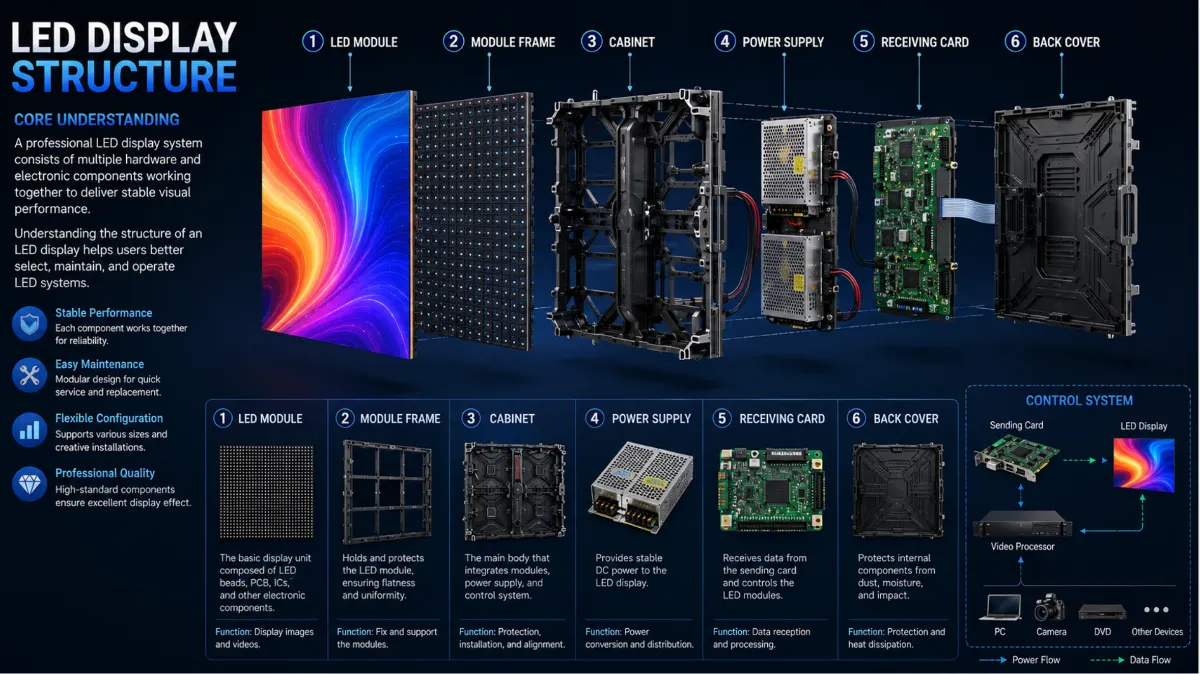

A professional LED display system consists of multiple hardware and electronic components working together to deliver stable visual performance.
Understanding the structure of an LED display helps users better select, maintain, and operate LED systems.
Main Components of an LED Display

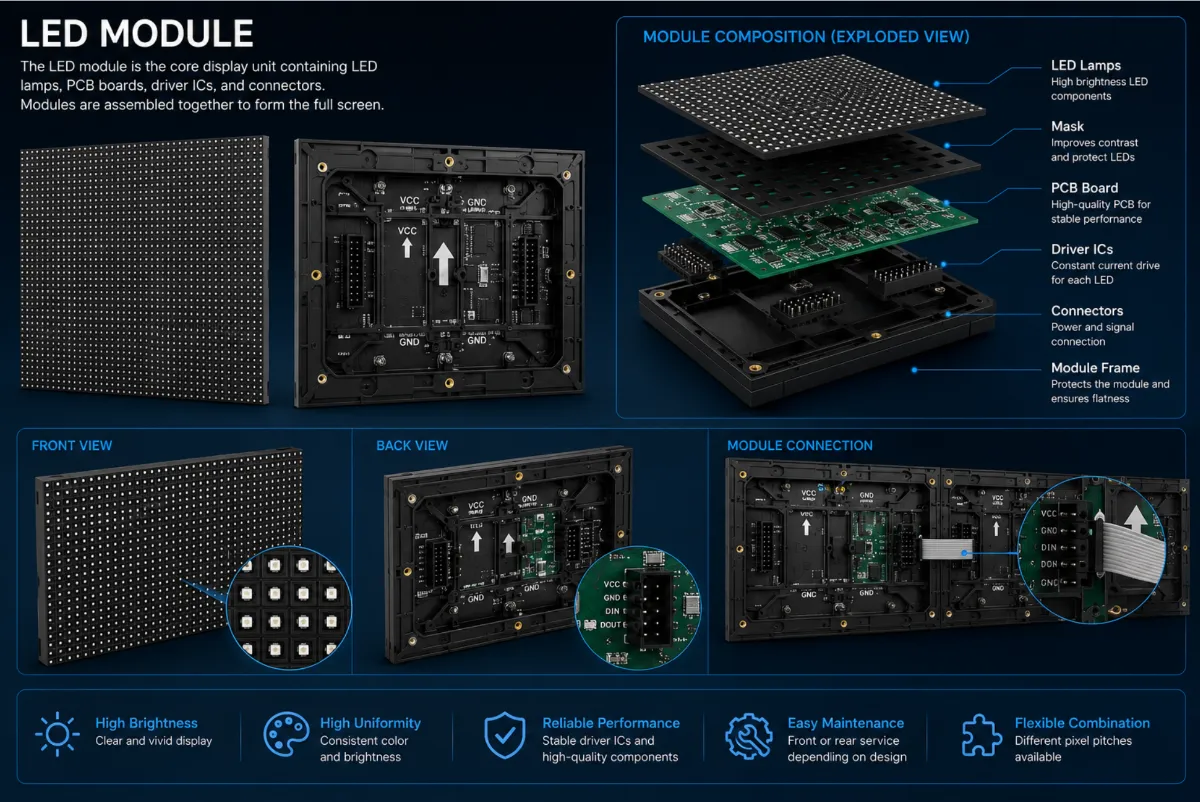

LED Module
The LED module is the core display unit containing LED lamps, PCB boards, driver ICs, and connectors.
Modules are assembled together to form the full screen.
Cabinet
Cabinets provide structural support and integrate modules, power supplies, and receiving cards.
Common cabinet materials include:
- Steel
- Aluminum
- Die-casting aluminum
- Magnesium alloy

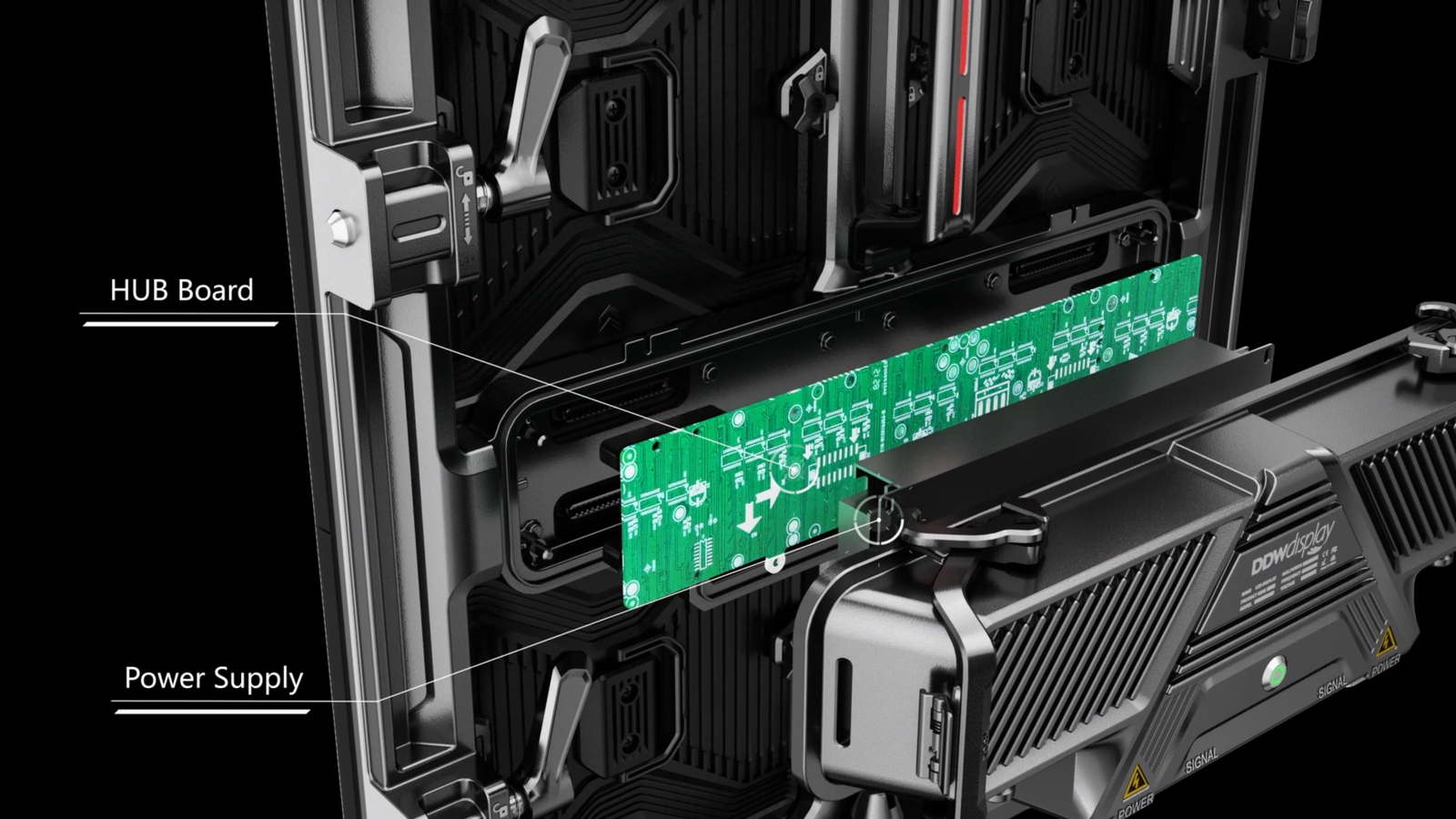

Power Supply
The power supply converts AC electricity into stable DC power for LED modules.
High-quality power supplies improve:
- Stability
- Lifespan
- Energy efficiency
Receiving Card
Receiving cards process image data from the control system and distribute signals to modules.
They are essential for:
- Color accuracy
- Signal stability
- Image synchronization
Sending Controller
The sending controller transmits video data from the processor or computer to the receiving cards.

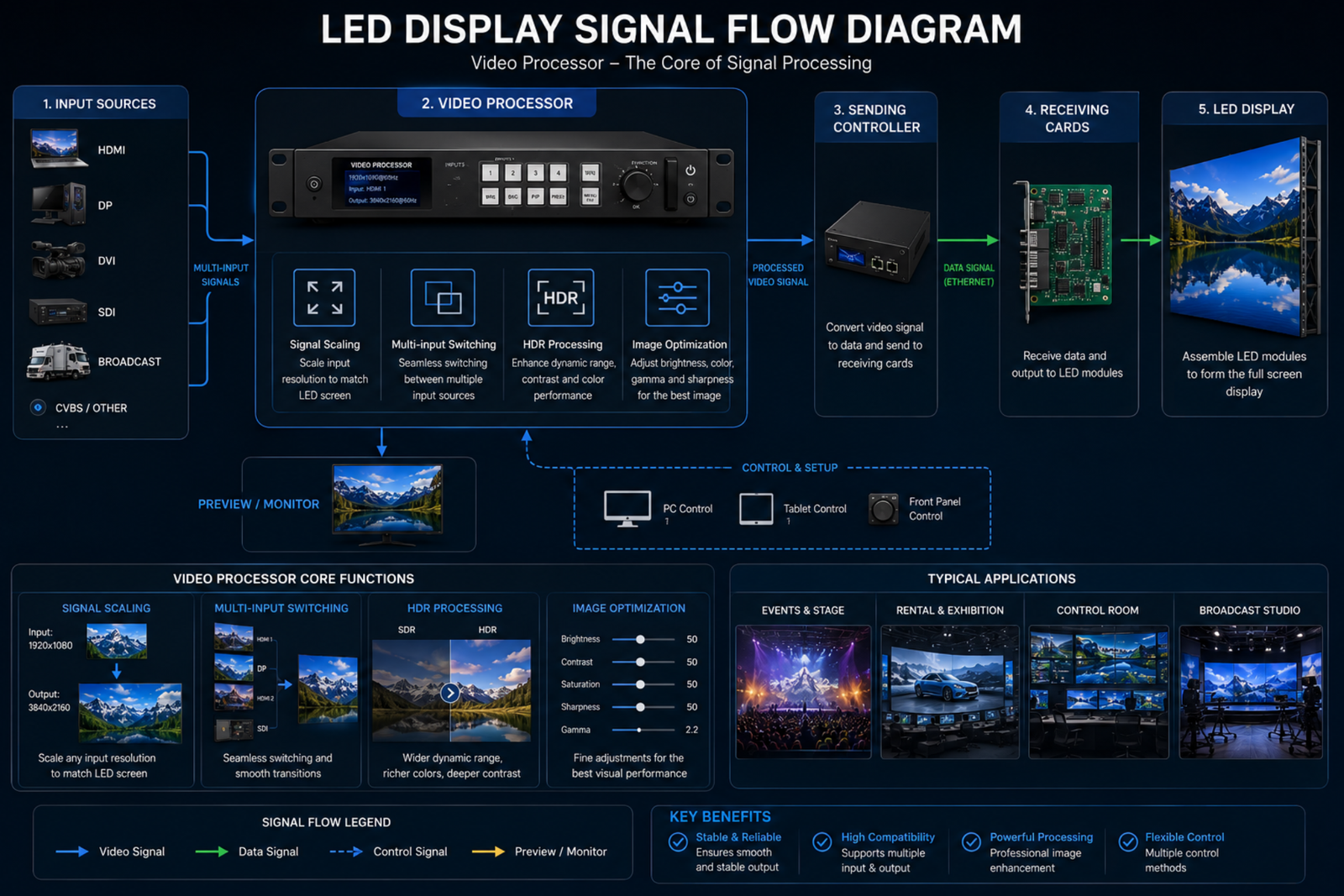

Video Processor
Video processors handle:
- Signal scaling
- Multi-input switching
- HDR processing
- Image optimization
Supporting Systems
Additional components include:
- Signal cables
- Power cables
- Structural systems
- Cooling systems
- Backup systems
- Flight cases

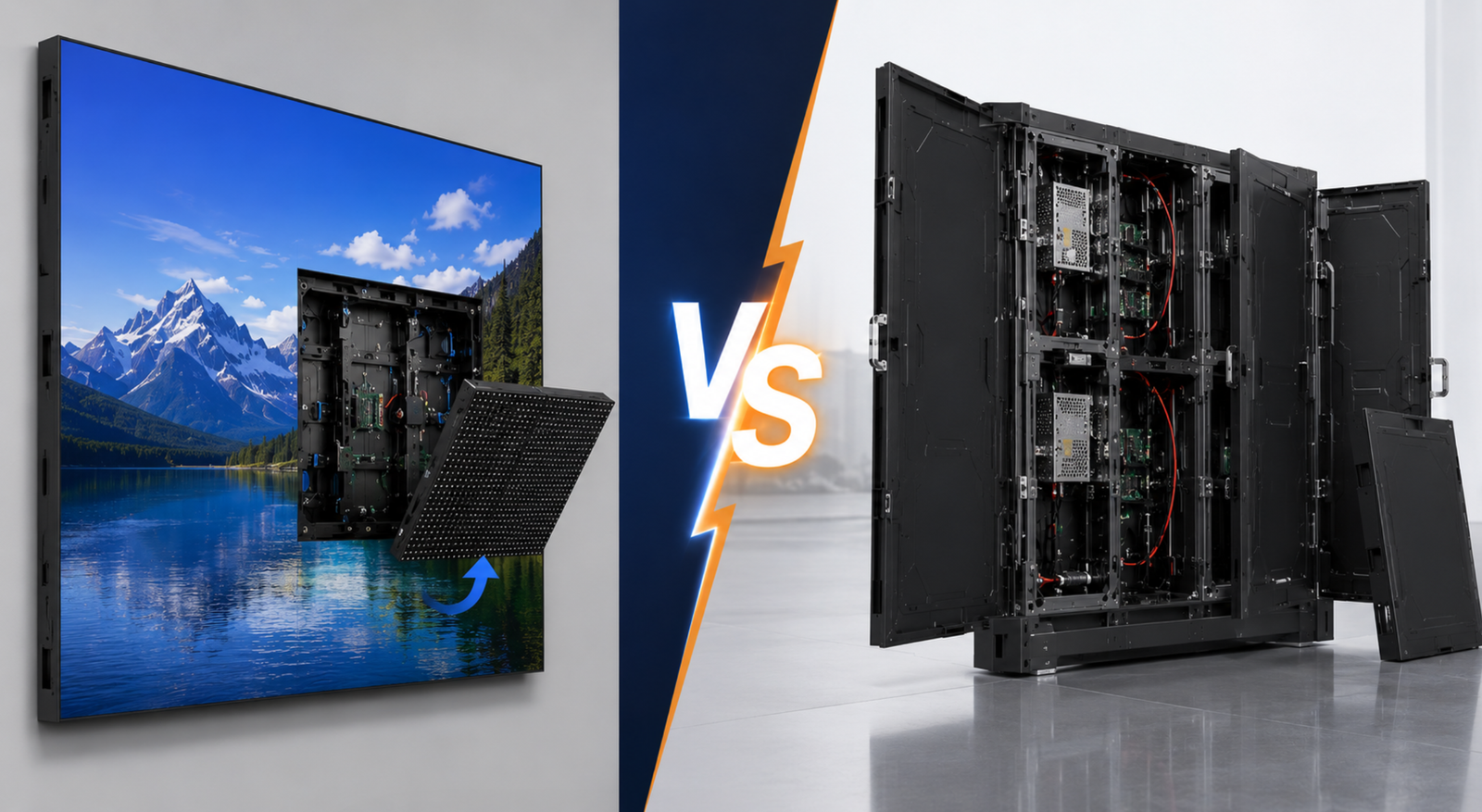

Front Service vs Rear Service Structure
Front Service
Maintenance can be performed from the front side.
Suitable for:
- Wall-mounted installations
- Limited rear access environments
Rear Service
Maintenance is performed from the rear side.
Suitable for:
- Large outdoor structures
- Traditional fixed installations
DDW Technical Insight
A high-quality LED display is not only about image quality but also about system structure, reliability, and engineering design.
Professional structural design ensures long-term stable operation and easier maintenance.
