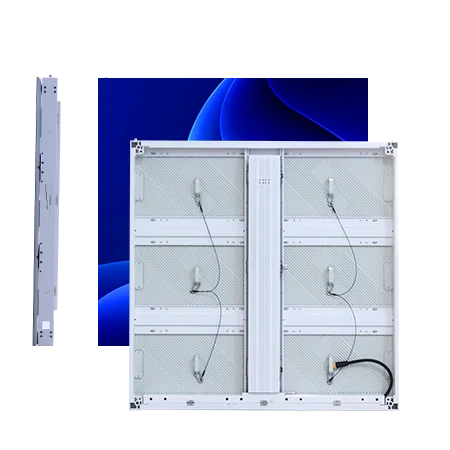

FA SERIES
3840-7680Hz High refresh rate
Key Product Features
Lightweight Structure
Front & Rear Maintenance
High Thermal Conductivity
Ultra-High Brightness
Smart Module Technology
True Color Performance
Application Scenario

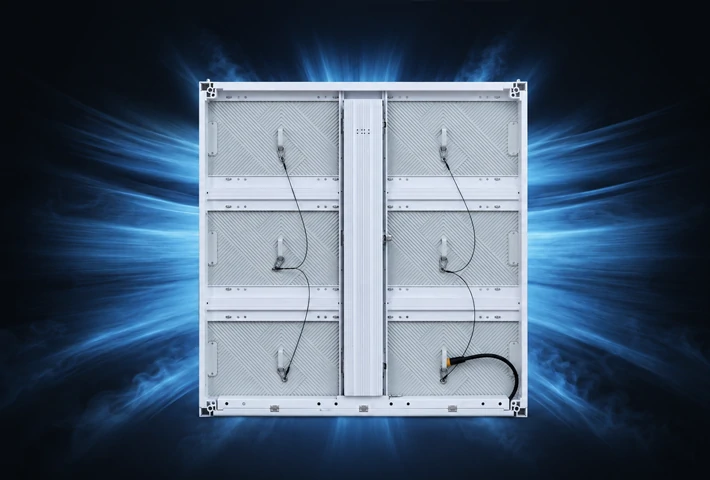

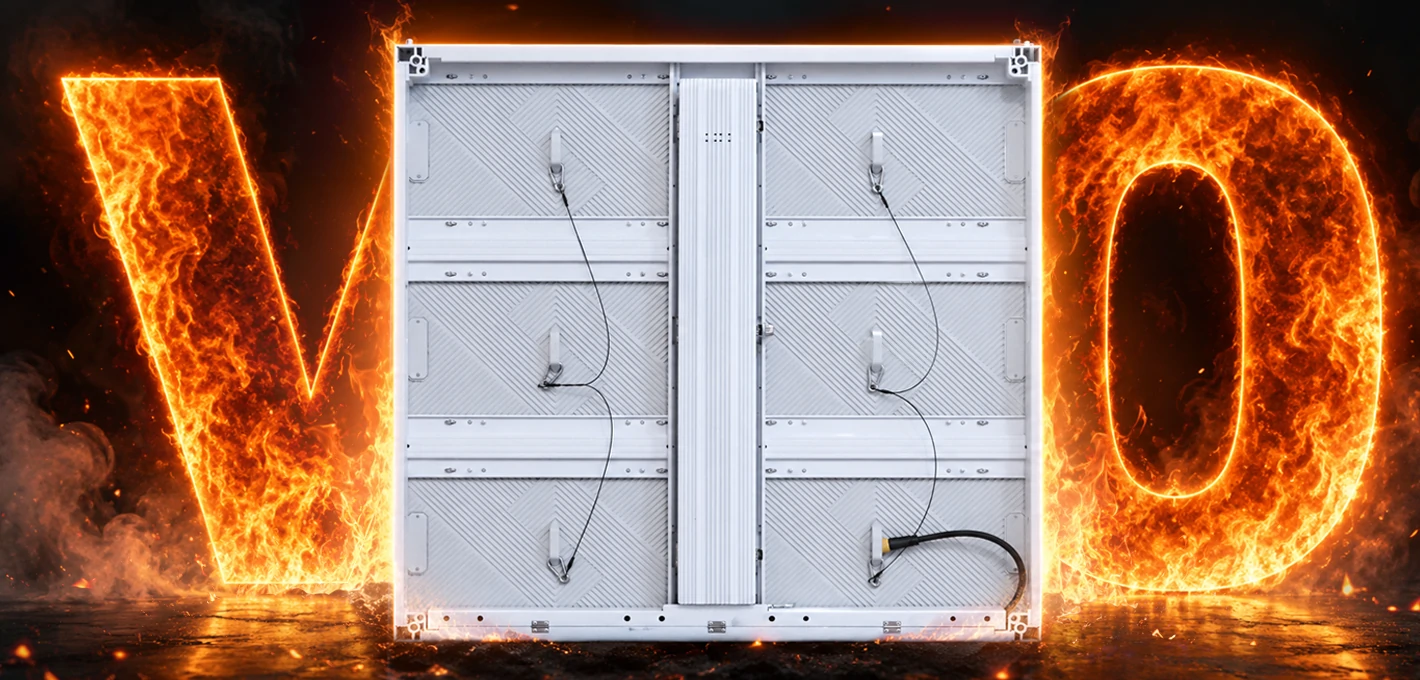

Full-Aluminum Cabinet Design
Front & Rear Maintenance

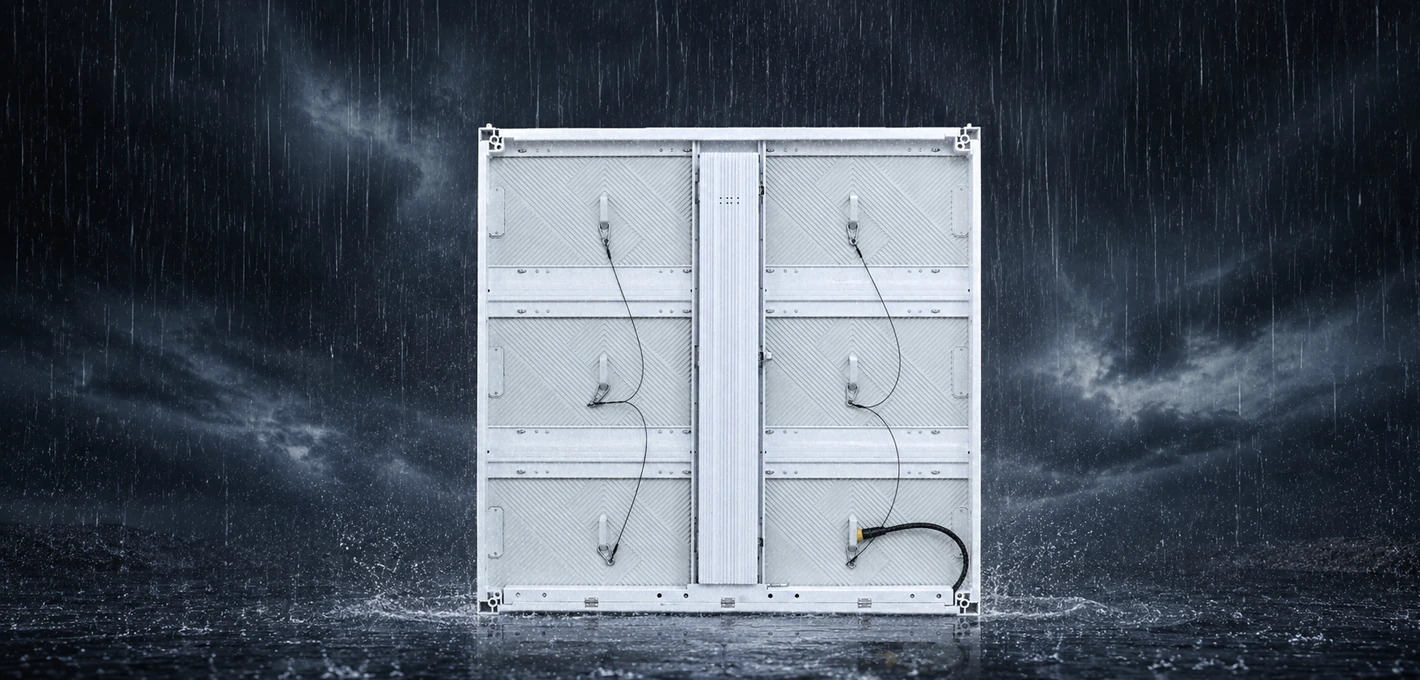

IP65 Waterproof Protection
Special waterproof design delivers up to IP65 protection, making it suitable for outdoor rain, dust, and harsh weather conditions.
Key factors for outdoor advertising screens
Safe & Reliable
High Brightness & Uniformity
High Stability & Long Lifespan
Ultra-High Refresh Rate
High Contrast Ratio
Energy-Efficient Design

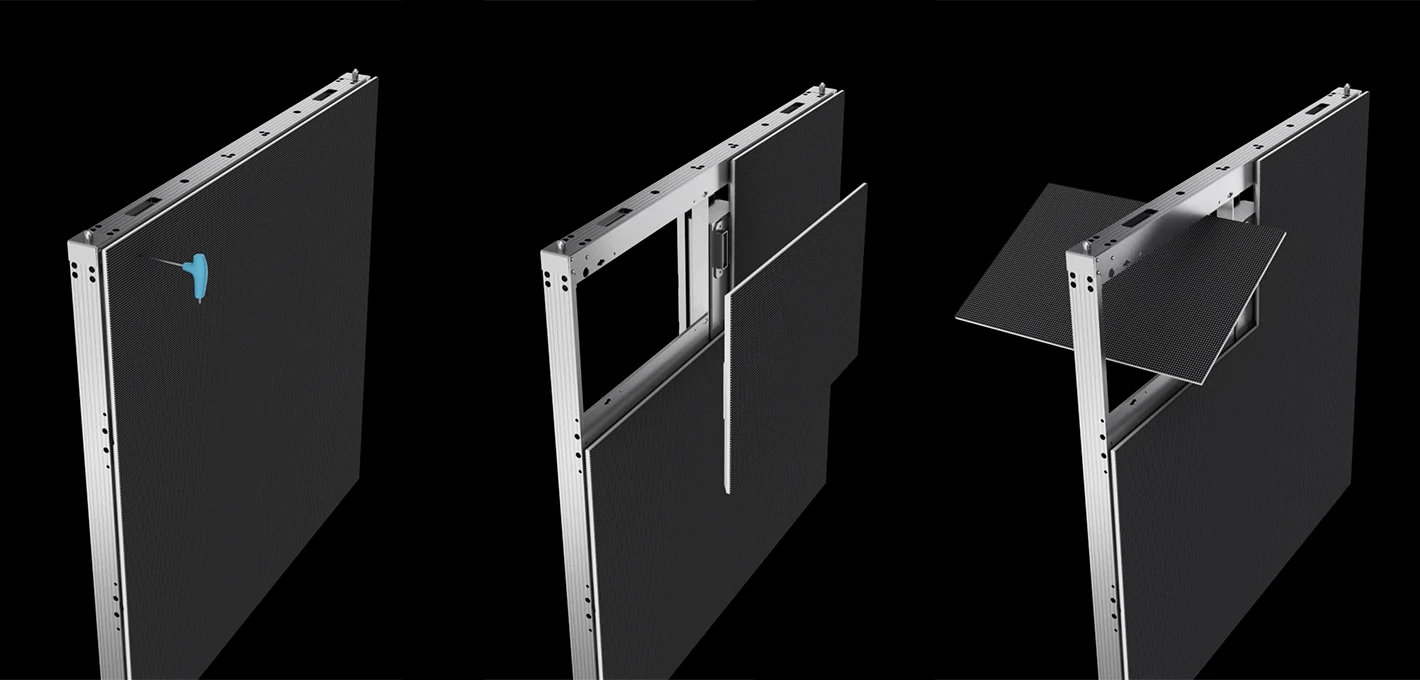

Front & Rear Maintenance
Reliability Tested
Product Advantages
Modules are easy to maintain and can be assembled more freely.

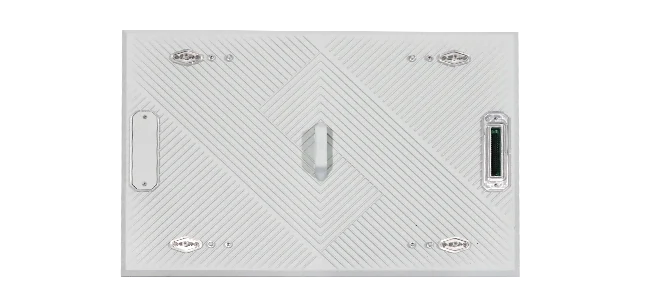

Aluminum Module

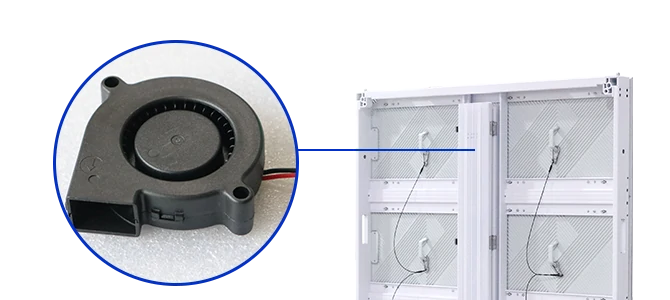

Built in cooling fan

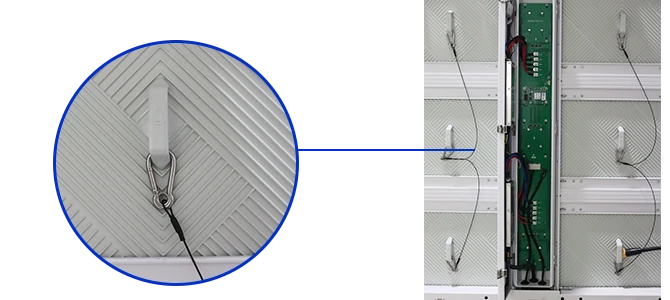

Safety rope

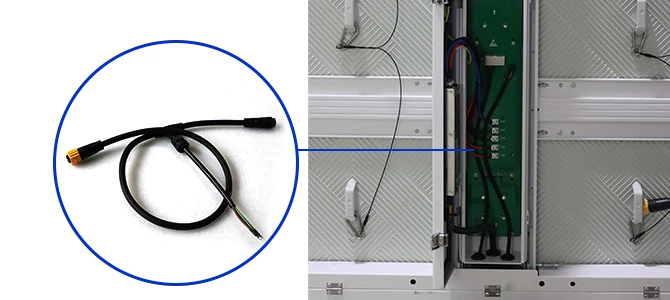

Customized waterproof wire

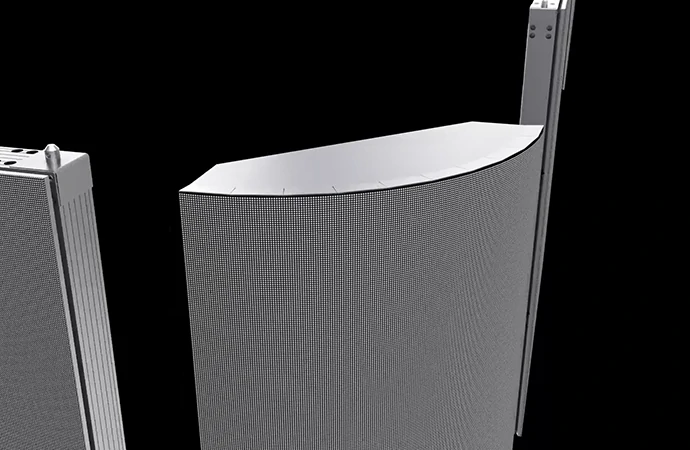

Creative styling
Supports splicing and installation in various ways, including right angles and arcs, and can be used for
naked-eye 3D solutions.
Product Features
Excellent display, immersive experience, clear true colors, wide viewing angle.

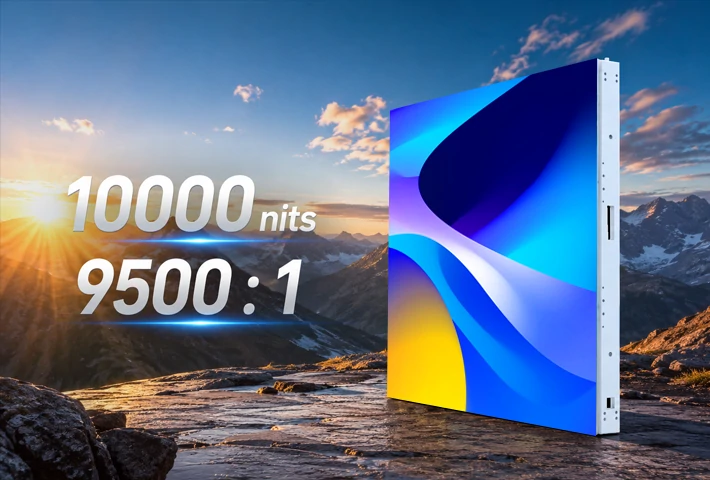

10,000-level Brightness & contrast, details fully revealed
Clear, bright and high-contrast display even in direct strong sunlight.

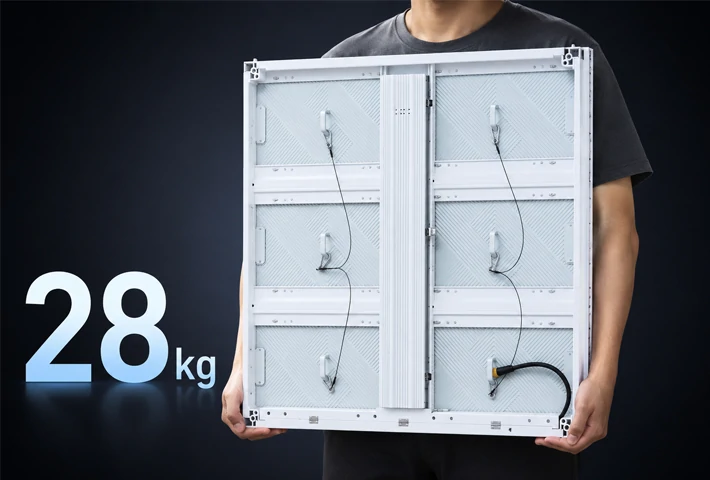

Slim & Lightweight Design
The screen weighs only about 30kg/㎡, with a cabinet thickness of just 77mm, ideal for wall-mounted and outdoor fixed installations.
Efficient Heat Dissipation
The full-aluminum cabinet with special grain design improves heat dissipation, reduces operating temperature, and ensures long-term stable performance.
Voltage Division Energy Saving
The partial voltage design helps reduce heat generation and power consumption, extending the service life of the LED display.
Product Parameter
Click and long-press on the form to swipe left orright.
| Part Number | P5.7 | P6.66 | P8 | P10 |
| Pixel Pitch | 5.7mm | 6.66mm | 8mm | 10mm |
| LED Configuration | SMD2727 | |||
| Pixel Density | 30625dot/m2 | 22500dot/m2 | 15625dot/m2 | 10000dot/m2 |
| Module size | 480*320mm | |||
| Module Resolution | 84*56 dot | 72*48 dot | 60*40 dot | 48*32dot |
| Cabinet Size | 960*960*77mm | |||
| Cabinet Resolution | 168*168dot | 144*144dot | 120*120dot | 96*96dot |
| Cabinet Weight | 28kg | |||
| IP Rating ( front/back) | IP65 | |||
| Brightness Intensity | 10000≥6500 CD/m2 | |||
| Viewing Angle (H/V) | 140°/140° | |||
| View Distance | ＞5m | |||
| Gray Scale | 14bit | |||
| Display Scale | 16.7M | |||
| Brightness Adjustment | 0-100 levels adjustable | |||
| Max.Power Consumption | 650W/㎡ | |||
| Ave.Power Consumption | 200W/㎡ | |||
| Drive Mode | 1/7S | 1/6S | 1/4S | 1/2S |
| Refresh Frequency | ≥3840HZ | |||
| Gamma Correction | -5.0~+5.0 | |||
| Environmental | OUTDOOR | |||
| Control Mode | Synchronous display with control PC by DVI | |||
| Support Input | Composite,S-Vido,Component,VGA,DVI,HDMI,HD_SDI | |||
| Operation Power | AC100~240 50/60HZ | |||
| Operating Temperature | -20℃~+50℃ | |||
| Operating Humidity | 10~95% RH | |||
| Operating Life | 100,000hours | |||
