AIOF SERIES

AIOF SERIES

AIOF SERIES

AIOF SERIES

AIOF SERIES

No color difference

Tag:

COB Led Display Micro Led Display Quantum Dot Cob Led Quantum Dot Cob Led Display

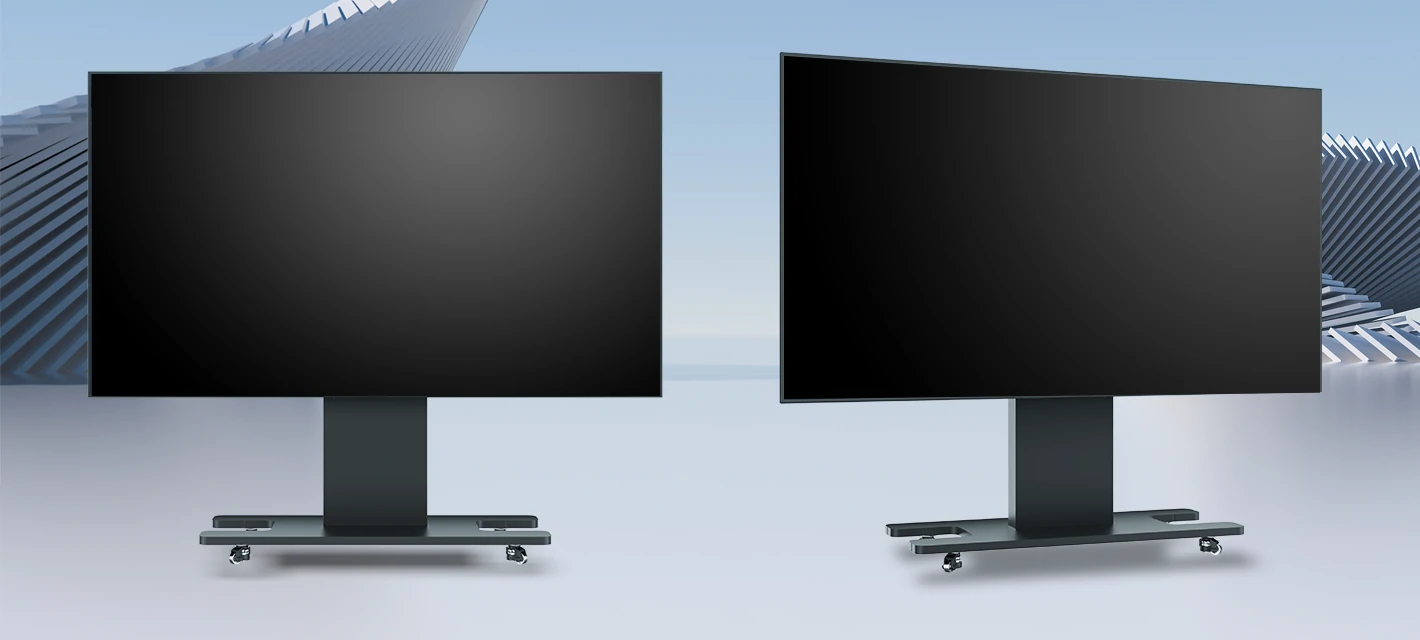

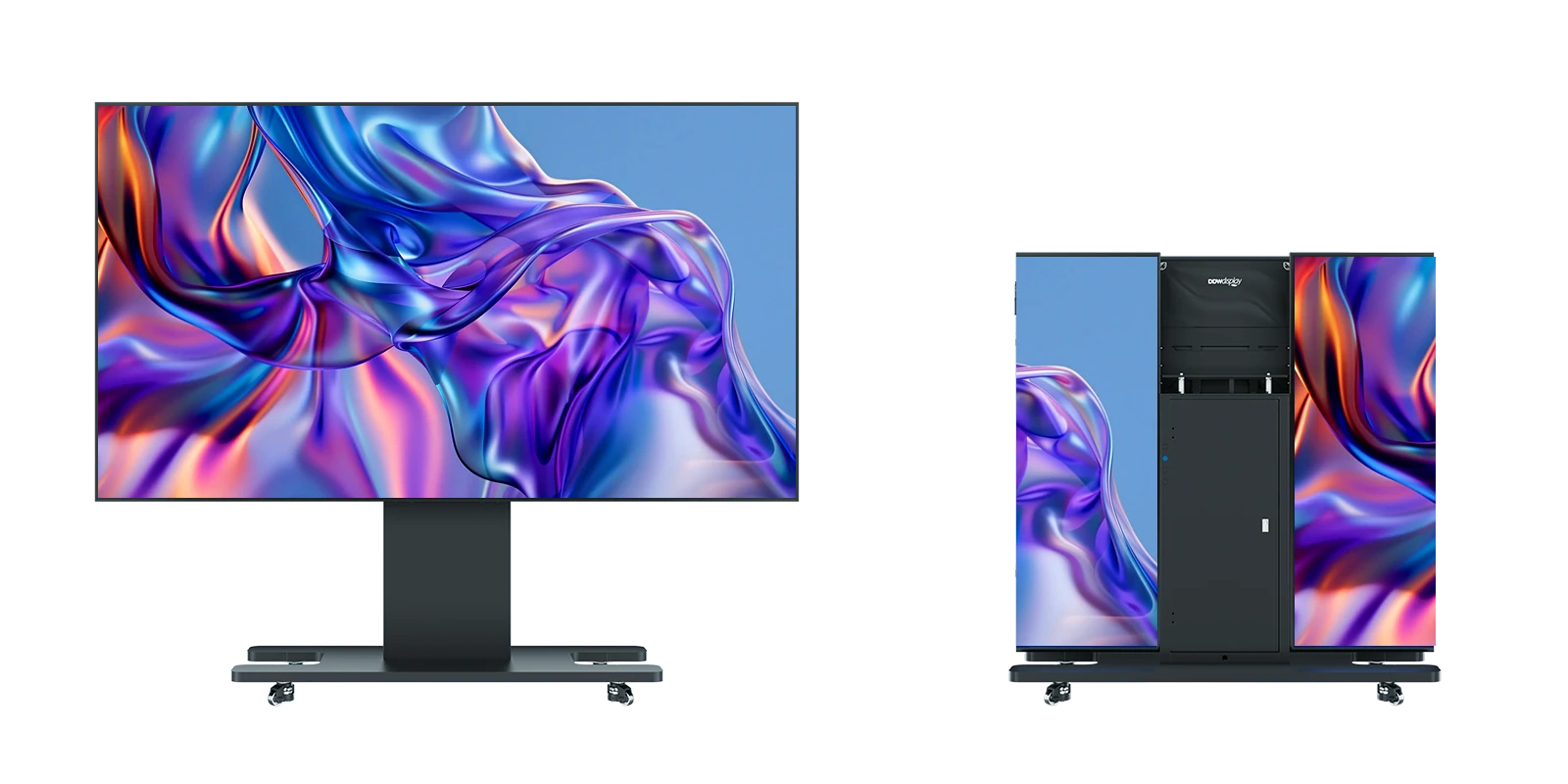

Lifting & Folding Design

Built-in lifting function allows height adjustment for different usage scenarios. The folding structure makes storage, transportation, and movement more convenient.

Quantum Dot COB Technology

Adopts Quantum Dot COB technology to deliver more stable colors, finer image quality, and a comfortable close-viewing experience.

180° Viewing Without Color Shift

Maintains consistent colors from different viewing angles, with minimal color temperature deviation, making it ideal for multi-person meetings.

High Contrast & Better Black Performance

Delivers deeper blacks, higher contrast, and clearer image layers for premium presentation and display performance.

3840Hz / 7680Hz High Refresh Rate

Provides smoother and more stable visuals, reducing flicker, scan lines, and moiré during presentations, video playback, filming, and live streaming.

Full Front Maintenance

Modules, power supplies, and receiving cards can be serviced from the front, making maintenance easier for all-in-one and space-limited installations.

IP65 Surface Protection

The COB surface offers protection against water, dust, static, and impact, improving durability and safety for daily use.

Smart Split Screen & Wireless Screen Sharing

Supports one-click wireless screen sharing from laptops, mobile phones, and tablets, making meetings, training, collaboration, and business presentations more efficient.

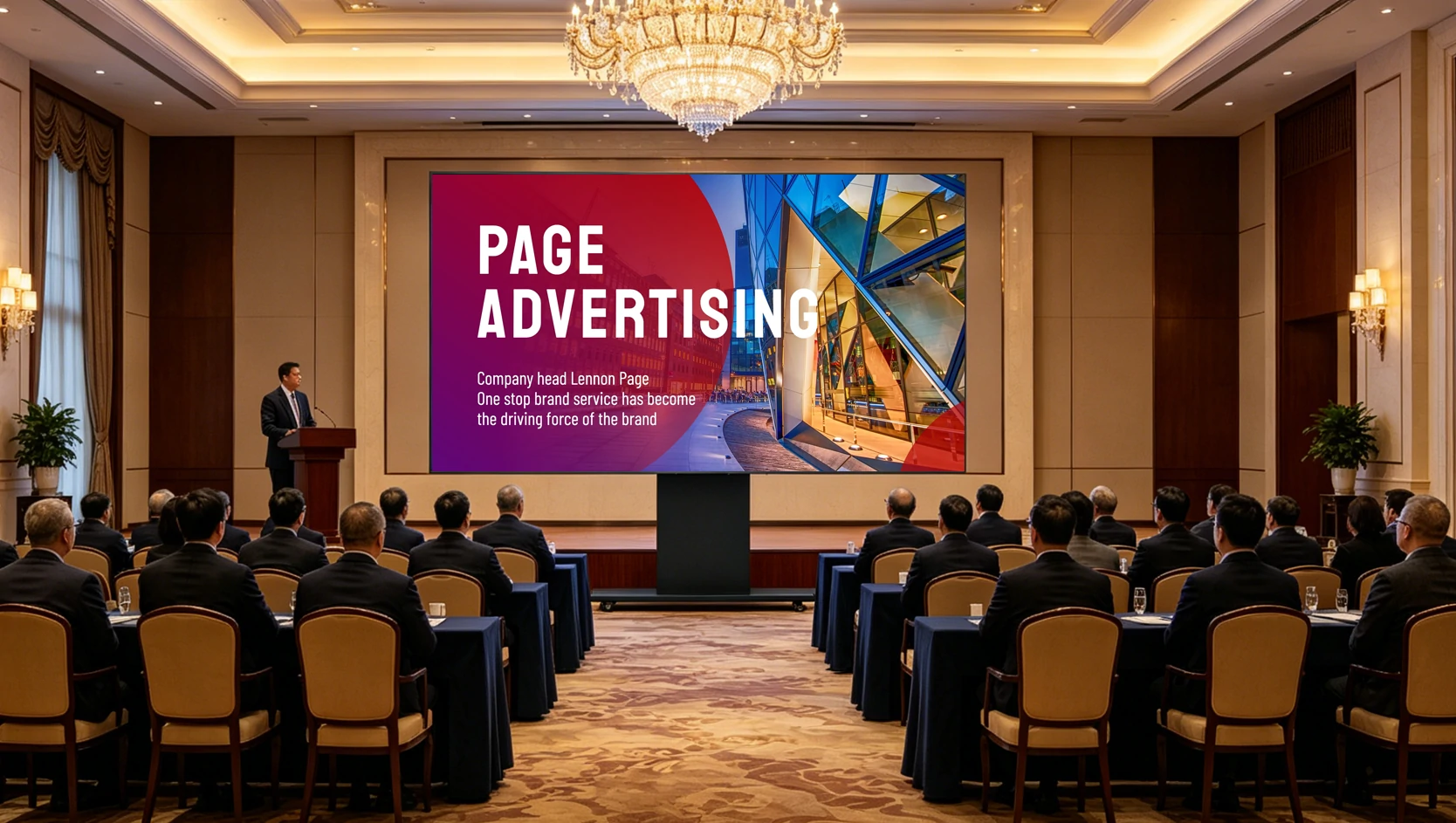

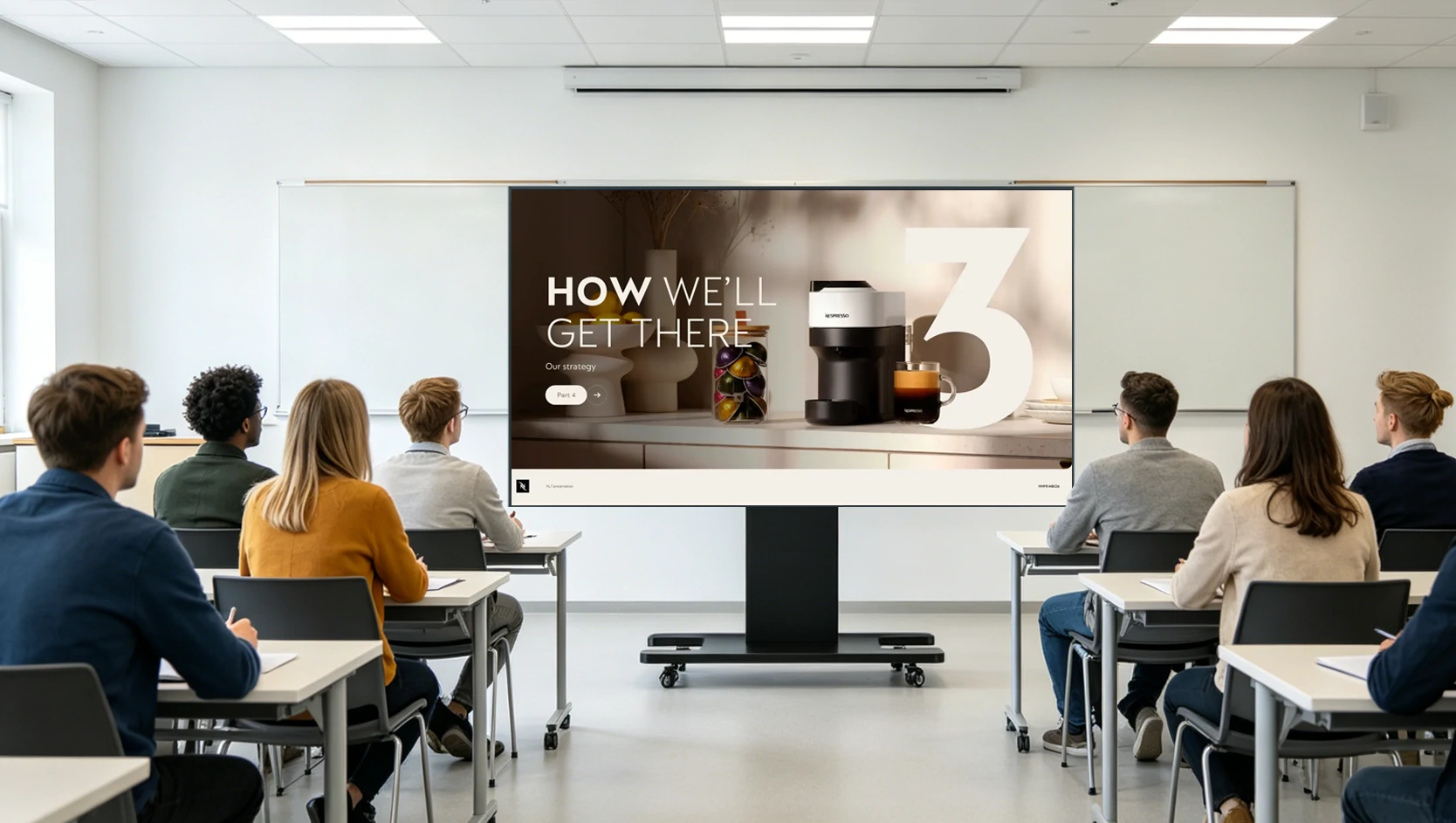

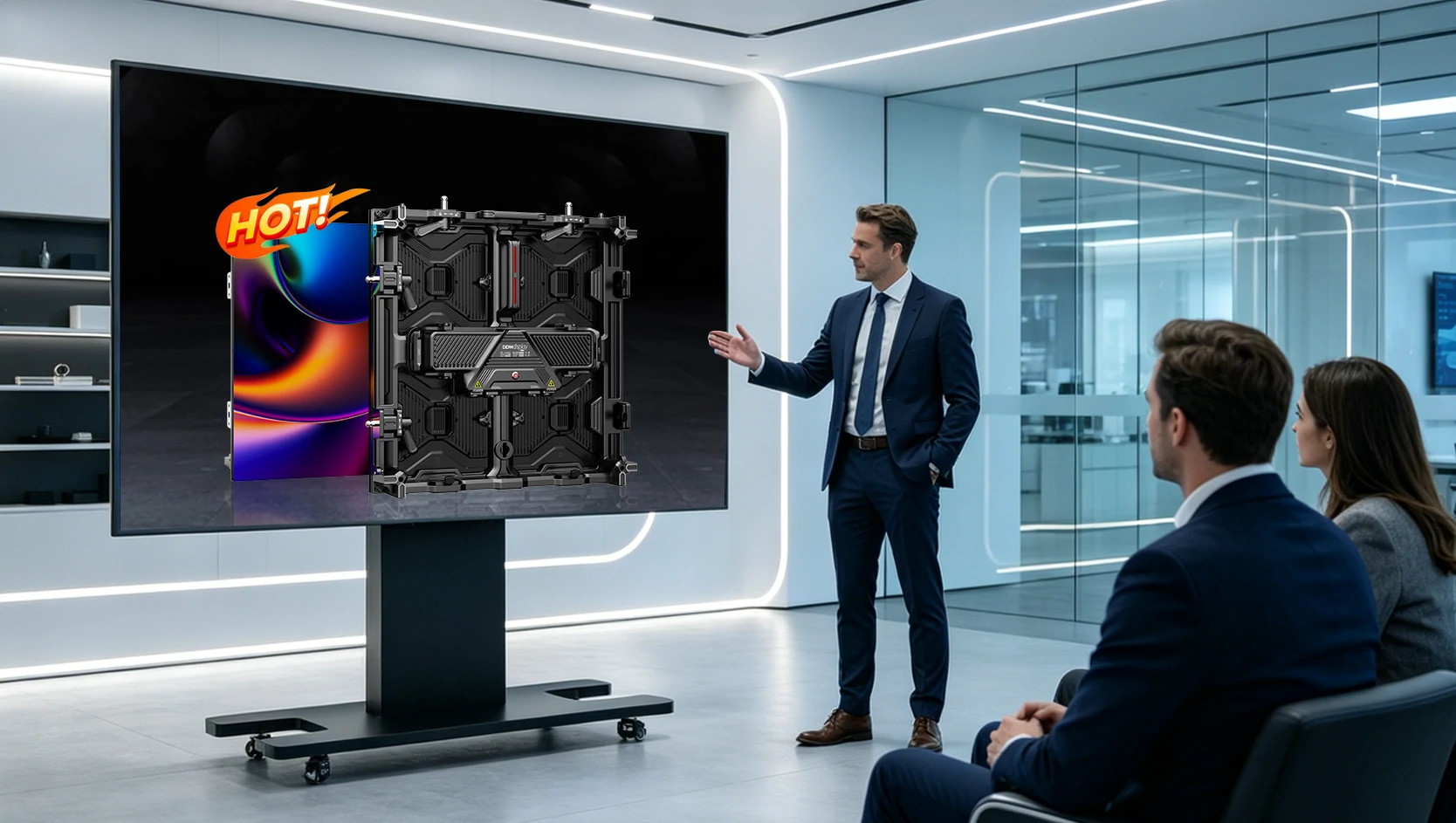

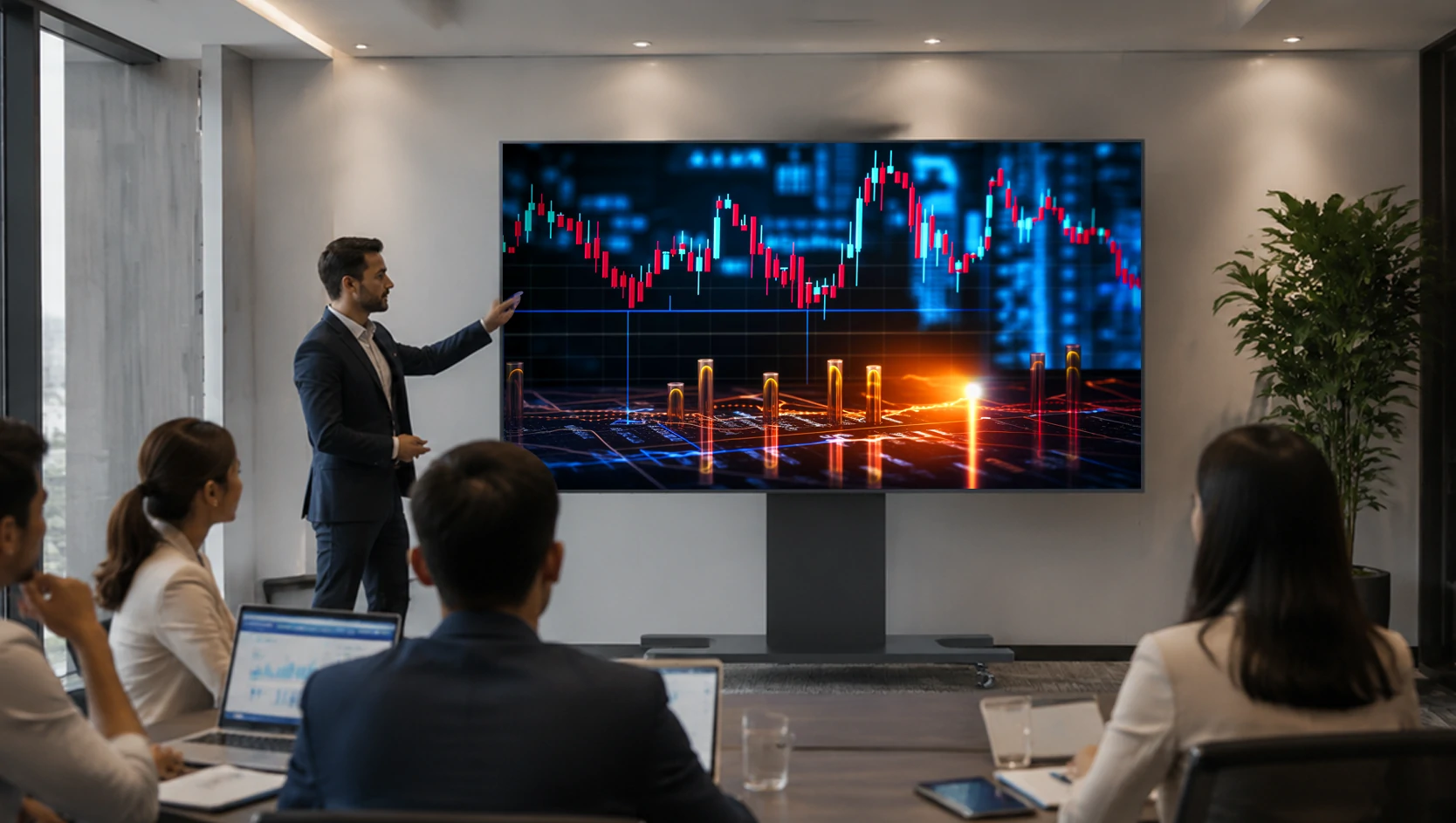

Application Scenario

1~2

ddw-display-20260623_092630

ddw-display-20260623_092224

ddw-display-20260623_092816

ddw-display-20260623_092228

AIOF series

Pixel Pitch

P0.78 P0.93 P1.25 P1.56

Display size

135inch/3020*1687.5mm 162inch/3620*2025mm

Module size

150*168.75mm

Brightness

600-1000cd/m²

Refresh rate

3840-7680Hz

Blacker and Higher Contrast

High contrast, excellent black field effect, no light leakage, and no color cast problem from multiple angles

3840Hz / 7680Hz High Refresh Rate

Provides smoother and more stable visuals, helping reduce flicker, scan lines, and moiré during filming or live broadcasting.

NEW ARSENIC-FREE ENVIRONMENTAL STANDARDS

Quantum dot COB is arsenic-free and non-toxic, more environmentally friendly and safer: Implement corporate social responsibility
The cadmium concentration in quantum dot coB is less than 0.03ug/mm?, which complies with international safety standards.

Ink Color Consistency

The surface is made of high light transmittance coating material with consistent ink color,Higher brightness and better heat dissipation

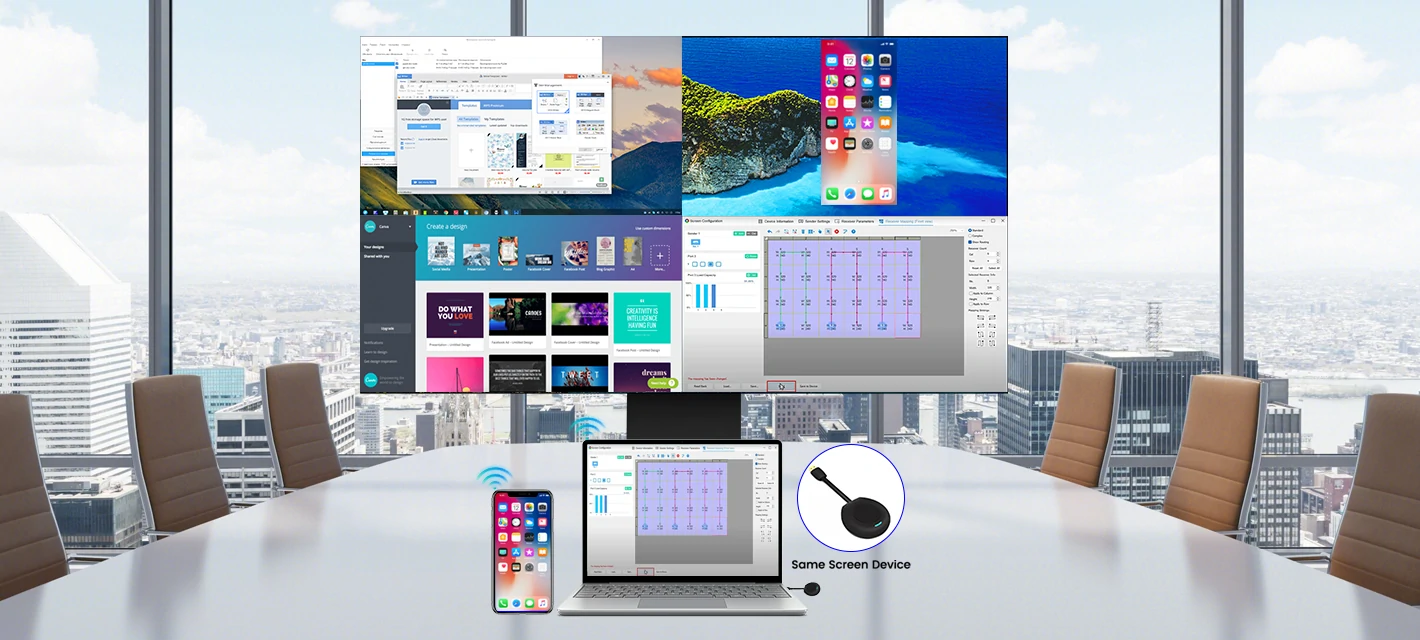

Smart Split Screen

One-click screen sharing simplifies the process of displaying content from computers, mobile phones, and tablets on the LED screen. Users can easily mirror their devices and have exceptional control using LEDConfig software.

Product Parameter

Click and long-press on the form to swipe left or right.

Display size	135inch/30201687.5mm 162inch/36202025mm
Pixel Pitch (mm)	P0.78	P0.9375	P1.25		P1.5625
Module resolution	205x230	160x180	120x135		96x108
Module size (mm)	150x168.75
Cabinet resolution	820x460	640x360	480x270		384x216
Cabinet size (mm)	600x337.5x29
Cabinet weight (kg)	3.8
Pixel density (dots/m²)	1508800	1137777	640000		409600
Cabinet flatness (mm)	≤0.15
Single-point brightness correction	yes
Single-point color correction	yes
Brightness (nits)	600-1200
Color temperature (K)	3000-10000 adjustable
Viewing angle	170°/170°
Chroma uniformity	±0.003
Frame rate (Hz)	50&60
Refresh rate (Hz)	3840/7680
Center distance deviation	＜3%
Brightness uniformity	≥97%
40 ° C/RH90% test	Through testing
