TAD series
HIGH DEFINITION
LED flexible transparent film display uses high refresh rate display technology to provide clear and delicate image effects。
Key Product Features
Transparent Adhesive
High Transparency
Lightweight & Flexible
Easy Installation
Slim & Minimalist
High Brightness Display
Energy Efficient Operation
Customizable Sizes

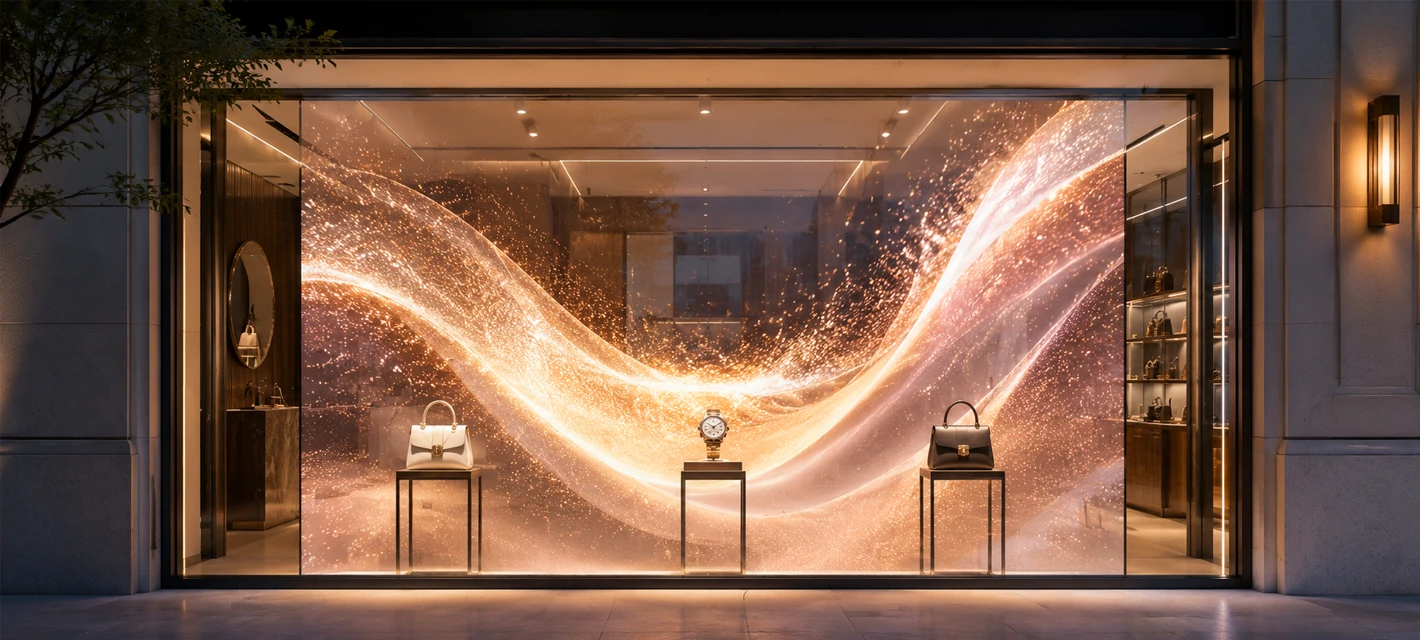

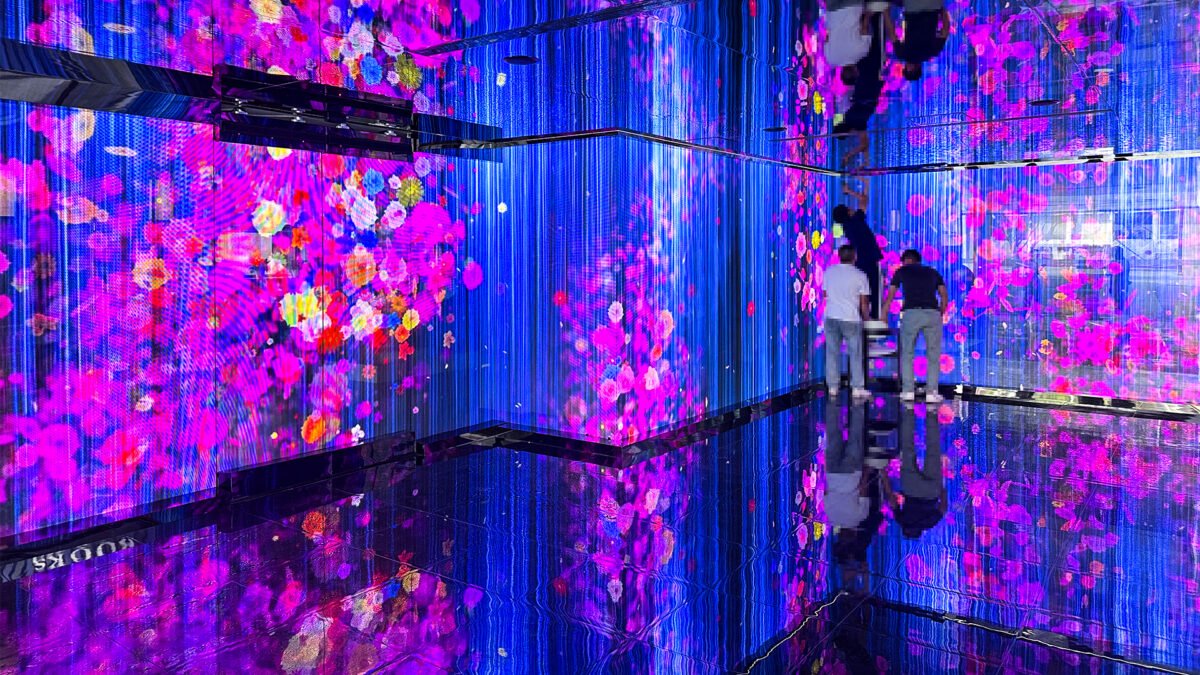

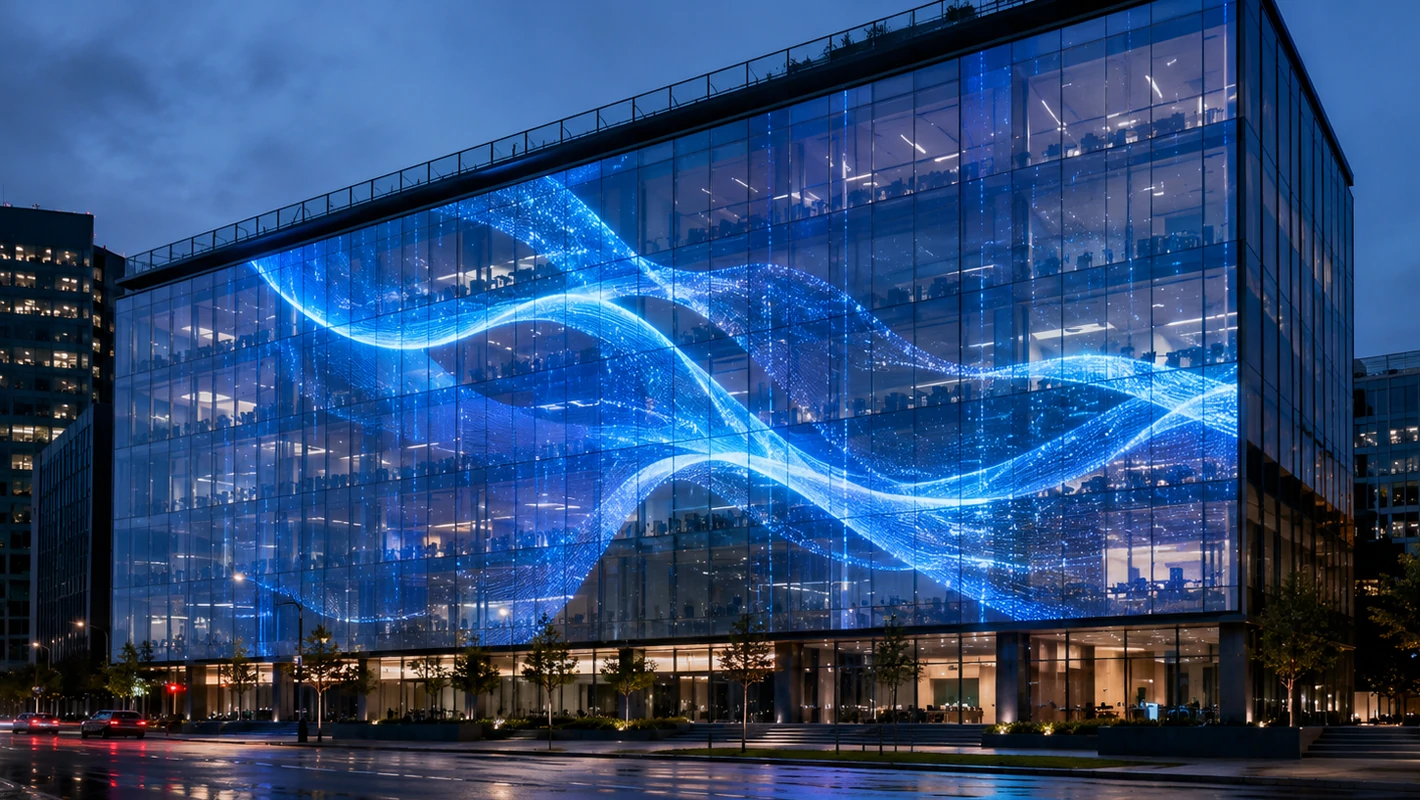

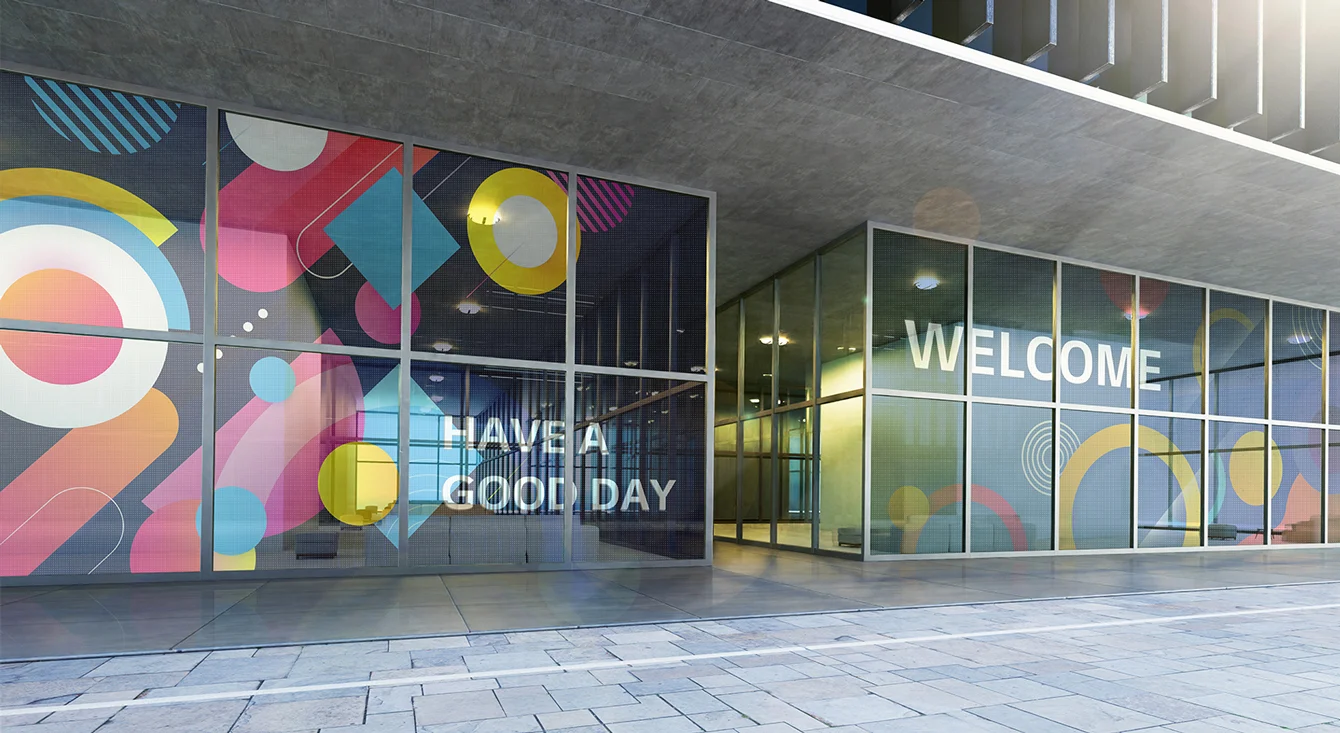

Application Scenario
TAD series
Transparent Adhesive LED screen Solution
Transparent Adhesive LED Screen
Brand-new technology

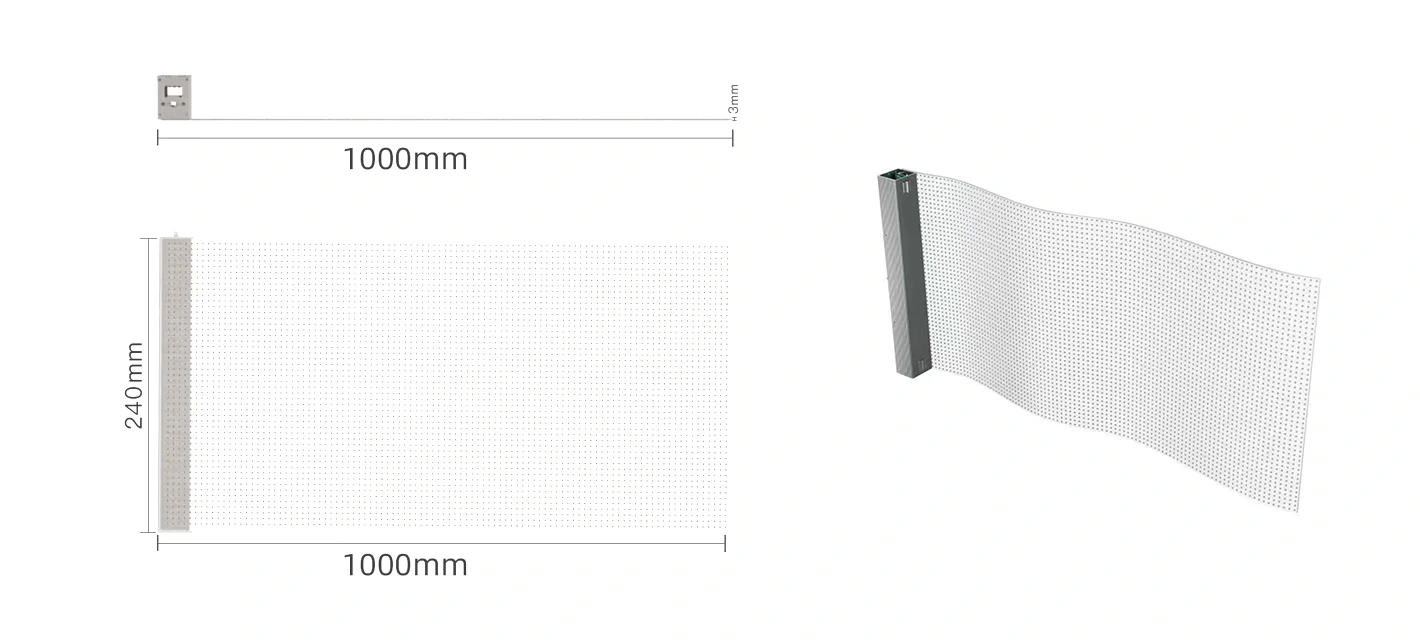

MODULE DIMENSIONS
1000×240/1200×240/1500x240mm 1000×480/1200×480/1500x480mm

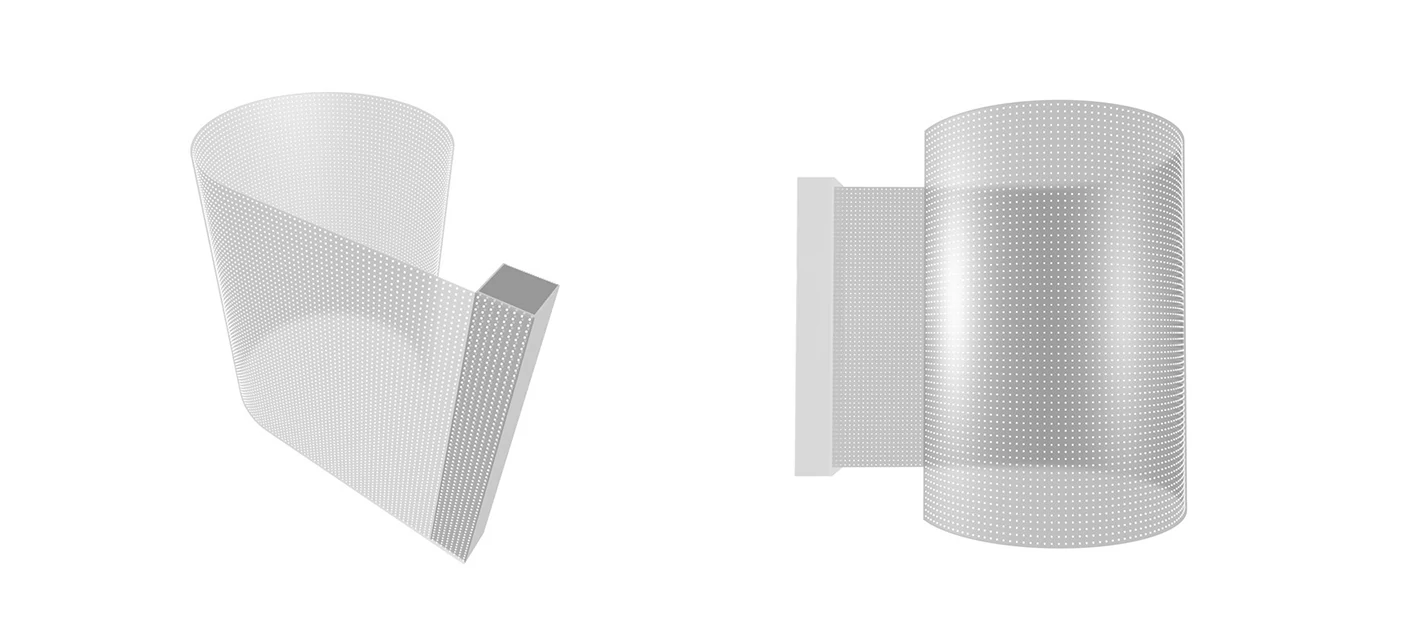

HIGH FLEXIBLE
Flexible design: Made of flexible materialsit can be flexibly bent
Next-Generation Visual Technology.
Advanced visual technology delivers better color, smoother images, eye protection, and energy-efficient performance.

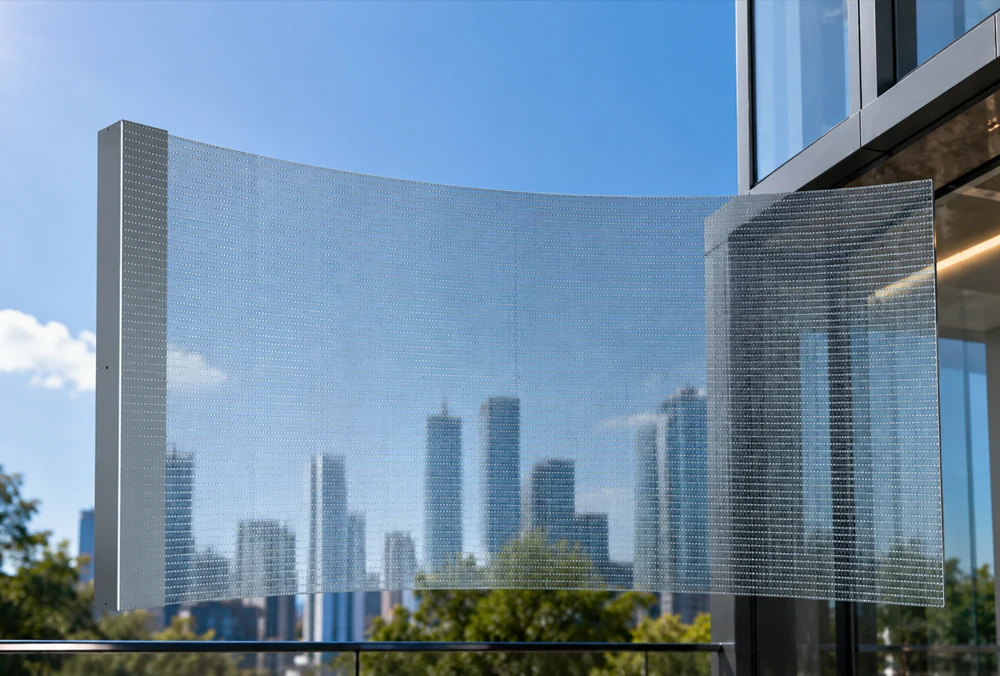

HIGH TRANSPARENCY
Transparent Rate Up to 85-90% or more, do not affect glass lighting
HIGH INTENSITY PROTECTION
Anti-UV, anti-cracking, no yellowing or shedding within 3-4 years
ULTRA LIGHT AND ULTRA-THIN
The thickness is only 3mm, and the weight is as light as 3.5kg/m2

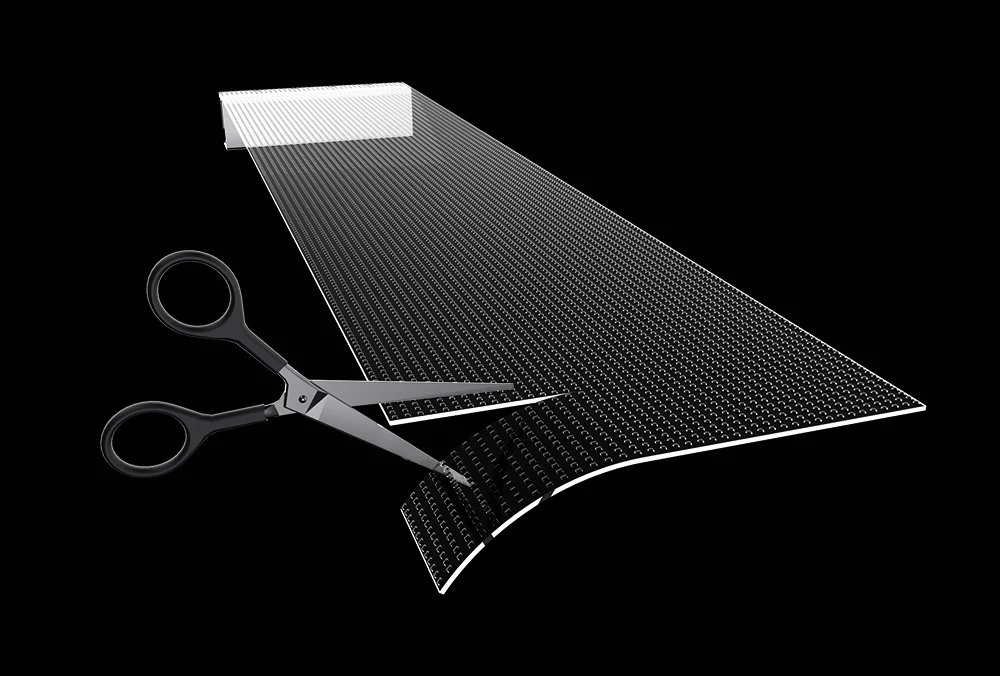

CUTTABLE
Supports arbitrary cropping, not limited by size and shape, meeting different size requirements, and achieving more creative displays
HIGH DEFINITION
LED flexible transparent film display uses high refresh rate display technology to provide clear and delicate image effects。
WIDE VIEWIGN ANGLE
140° for each angle, no dead Angle and no color bias Covering people in a larger area and attracts people and traffic in a wider area
SAFE AND BEAUTIFUL
No components on the screen, hidden power supply, safe and reliable, clean and beautiful
Product Parameter
Click and long-press on the form to swipe left or right.
| Product Specifications | P4-4 | P4-8 | P5 | P6 | P8 | P10 | P16 |
| Pixel Pitch | 4mm*4mm | 4mm*8mm | 5mm*5mm | 6mm*6mm | 8mm*8mm | 10mm*10mm | 15.625mm*15.625mm |
| Pixels | 62500 dots/㎡ | 31250 dots/㎡ | 40000 dots/㎡ | 27889dots/㎡ | 15625dots/㎡ | 10000dots/㎡ | 3906dots/㎡ |
| LED Specifications | SMD1212 | SMD2121 | SMD2121 | SMD2121 | SMD2121 | SMD2121 | SMD2121 |
| Pixel Composition | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| Module Size | 1000mm*240mm | 1000mm*240mm | 1000mm*240mm | 1000mm*240mm | 1000mm*240mm | 1000mm*240mm | 1000mm*240mm |
| Module Resolution | 250*60 | 250*30 | 200*48 | 167*40 | 125*30 | 100*24 | 64*15 |
| Pixel Resolution | 250*250/㎡ | 250*125/㎡ | 200*200/㎡ | 167*167/㎡ | 125*125/㎡ | 100*100/㎡ | 64*64/㎡ |
| Transmittance | ≥85% | ≥85% | ≥85% | ≥85% | ≥85% | ≥90% | ≥90% |
| Cabinet Wiring | Internal wiring (neat back panel) | ||||||
| Weight | ≤3.5KG/㎡ | ||||||
| White Balance Brightness | 3000cd/㎡ | ||||||
| Peak Power Consumption | 400 W/㎡ | ||||||
| Average Power Consumption | Approx. 200 W/㎡ (depending on video source) | ||||||
| Refresh Rate | ≥3840Hz | ||||||
| Grayscale Level | 16Bit | ||||||
| Brightness Control Level | 0-255 levels | ||||||
| Color Temperature | 3200K-8500K (adjustable) | ||||||
| Frame Rate | ≥60Hz | ||||||
| Viewing angle | H-H140 degrees V-V140 degrees | ||||||
| Input signal | DVI/VGA, composite video | ||||||
| Control method | Synchronous box (computer screen control) or asynchronous box (WiFi connection for mobile app screen control or USB flash drive screen control) | ||||||
| Protection level | IP30 | ||||||
| Power supply requirements | AC 220V ±10%, 50-60Hz, (optional wide voltage 110V and 9~36V) | ||||||
| Operating temperature | -20～50 degrees Celsius | ||||||
| Theoretical service life | 100,000 hours | ||||||
