FL SERIES
FL SERIES
FL SERIES
FL SERIES

FL SERIES

Application Scenario

Tag:
Column Led Display Cylinder Led Display Flexible Led Screen
Stack Layer
Stack Layer
Stack Layer
Stack Layer
Stack Layer
Stack Layer

Key Product Features

Next-Generation Visual Technology

PROFESSIONAL VISUAL PERFORMANCE

FL series

Easy to Move

5000:1 High Contrast Ratio

Front Maintenance

Wide Viewing Angle

Energy Conservation

Pixel Pitch
P1.25 P1.53 P1.56 P1.86 P2 P2.5
Module Size
240*120mm/320*160mm
Brightness
600-750cd/m²
Contrast ratio
5000:1
Refresh rate
3840Hz

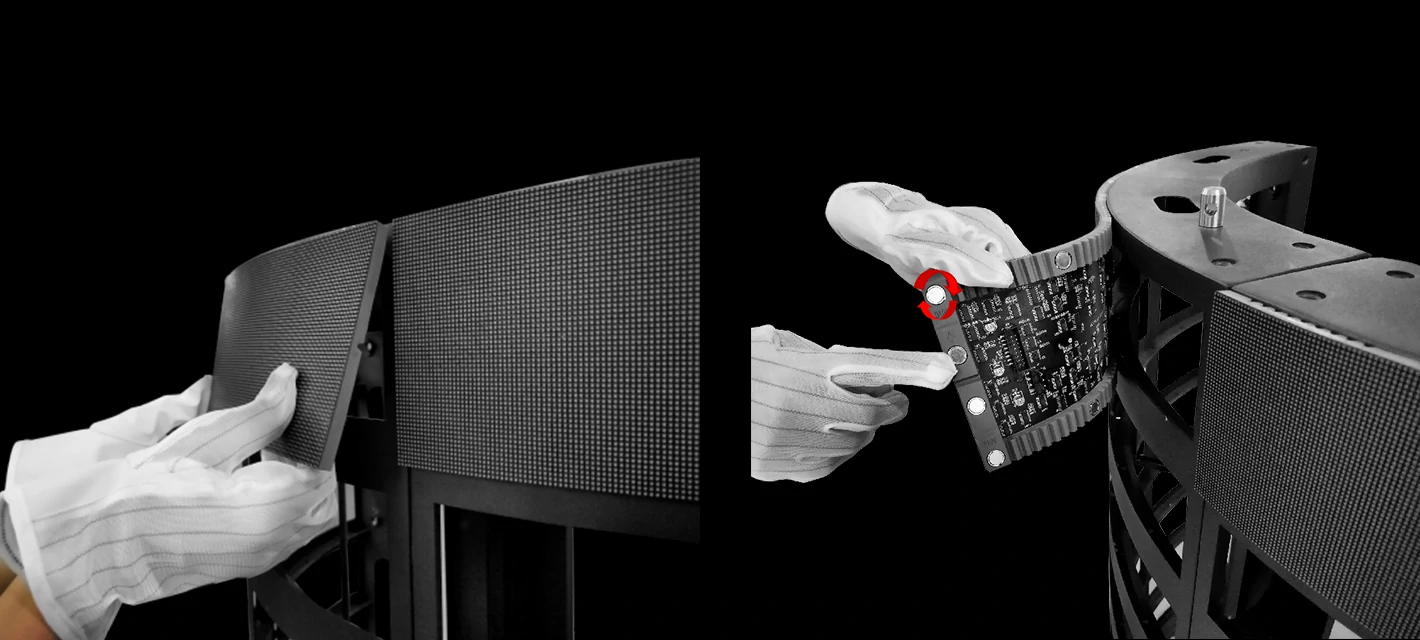

Front Maintenance Design

Adopting magnetic module design, easy and fast installation

3840Hz high refresh

With a 3840Hz refresh rate and 14-16bit grayscale,FL Series delivers smoother and more stable images, reducing scan lines and flicker for HD video advertising playback.

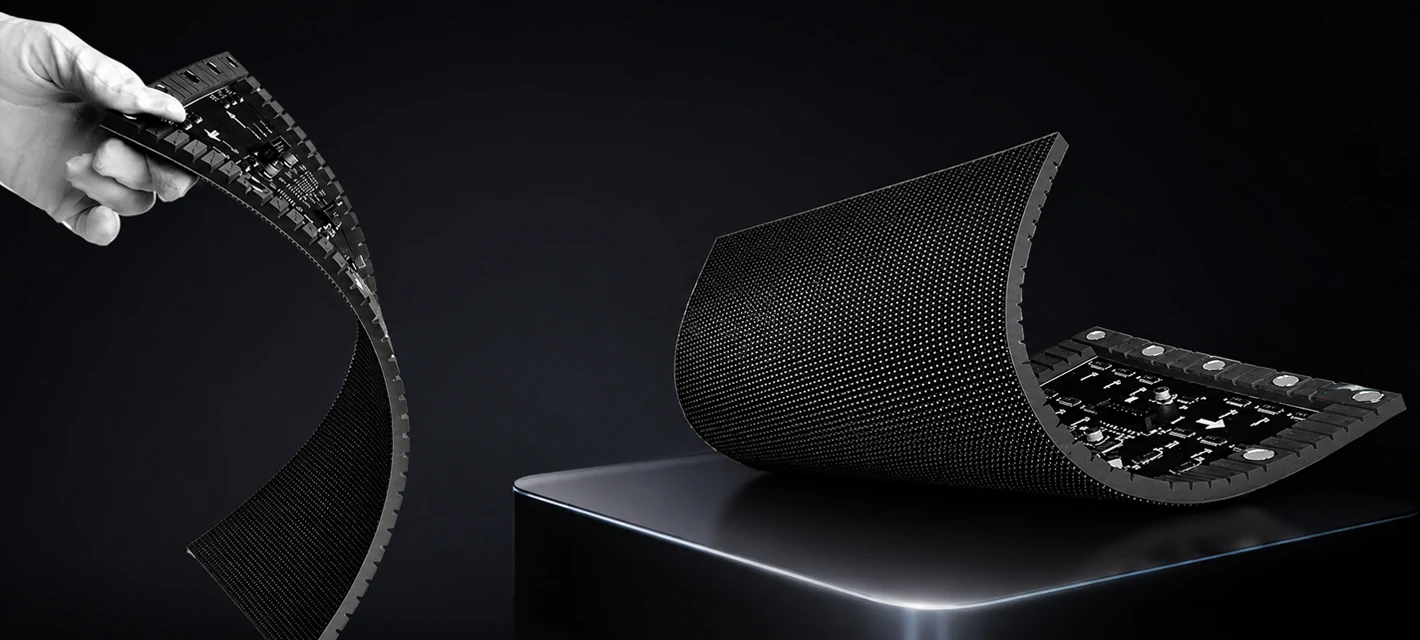

Ultra-light Flexible

Flexible LED modules are soft and lightweight, making them ideal for creating various curved surfaces and expanding design possibilities. Two sizes are currently available: 240x120mm and 320x160mm.

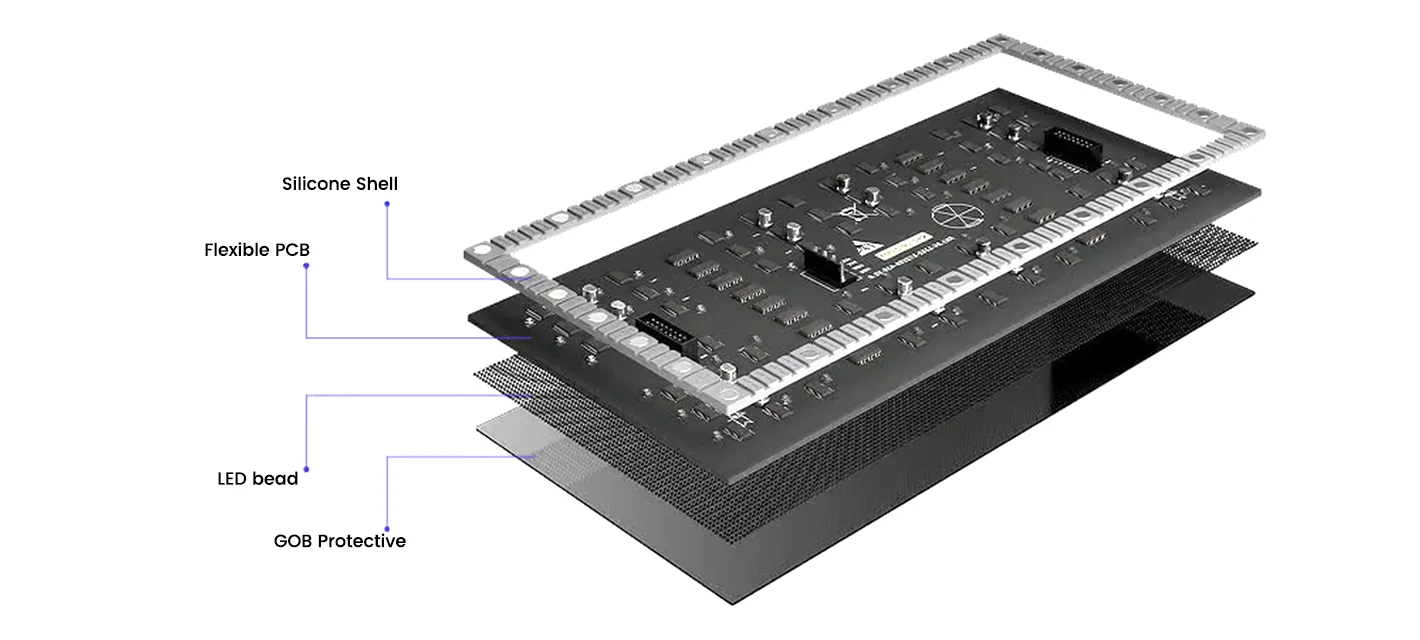

Optional GOB LED Modules

Transparent protective coating • Impact, dust & moisture resistant • Smoother, more uniform visuals

Customized Irregular LED Solutions

Flexible & Creative Design

Flexible LED modules can be seamlessly assembled into curved, cylindrical, wave-shaped, S-shaped, and other custom configurations, transforming creative ideas into stunning visual displays.

01

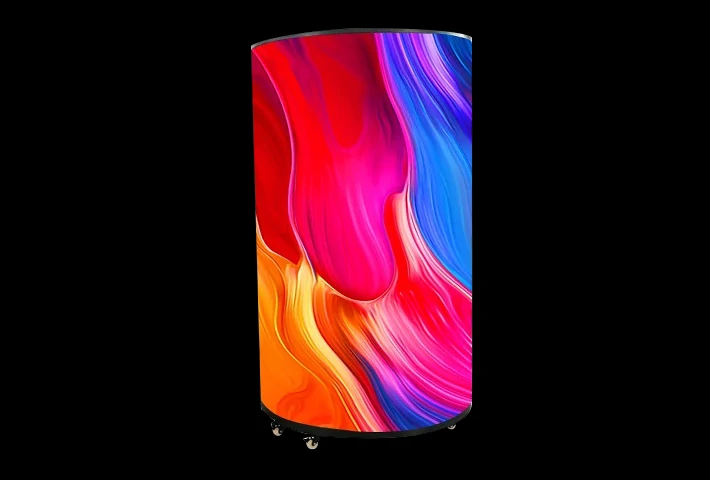

Cylinder LED screen

ddw-display-20260622_093200
02

Flexible LED Screen

ddw-display-20260622_093201
03

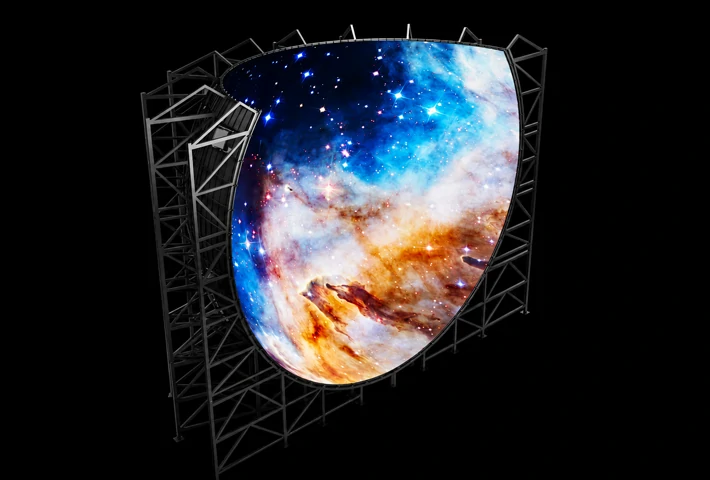

Dome LED screen

ddw-display-20260622_093207
04

Circular LED screen

ddw-display-20260622_093208
05

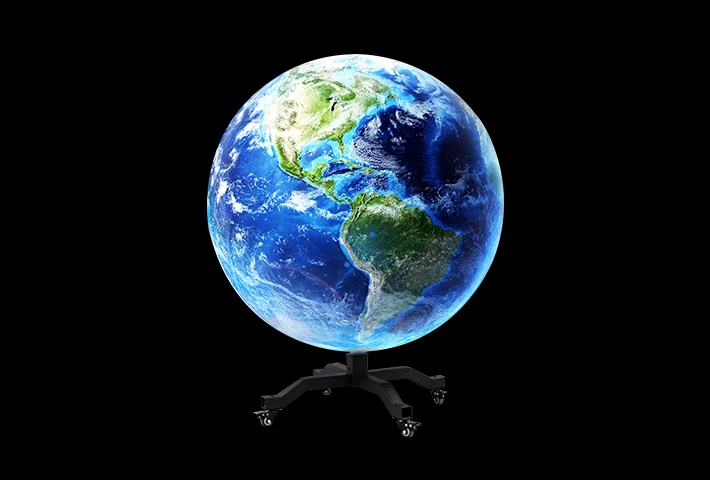

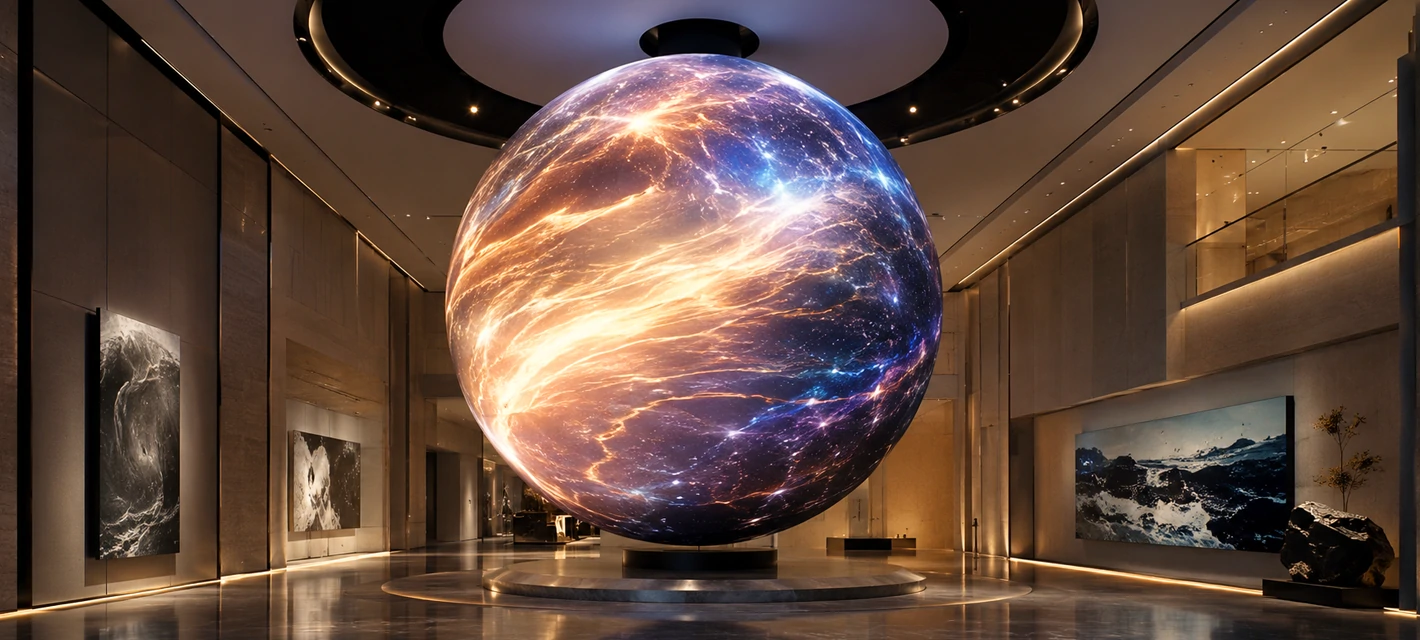

Sphere LED screen

ddw-display-20260622_093203
06

Can LED screen

ddw-display-20260622_093204

Product Parameter

Click and long-press on the form to swipe left or right.

Pixel Pitch (mm)P1.25P1.29P1.53P1.56P1.86P2P2.5P3.076P4P5
Pixel ConfigurationSMD1010SMD1010SMD1212SMD1212SMD1212SMD1515SMD1515SMD2020SMD2020SMD2020
Density (Pixels/㎡)640,000600,625422,500406,406288,906250,000160,000105,62562,50040,000
Module Resolution (Pixel)256x128248x124208x104204x102172x86160x80128x64104x5280x4064x32
Module Size (mm)320x160320x160320x160320x160320x160320x160320x160320x160320x160320x160
Driving Mode (Duty)1/641/621/521/511/431/401/321/261/201/16
Brightness (CD/㎡)600600600600600650700700600600
Viewing Angle (°)140140140140140140140140140140
Gray Grade (Bits)14141414141414141414
Operation PowerAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60HzAC100-240V 50-60Hz
Max. Power Consumption (W/㎡)480480480480480480420480480480
Frame Frequency (Hz)≥60≥60≥60≥60≥60≥60≥60≥60≥60≥60
Refresh Frequency (Hz)≥3,840≥3,840≥3,840≥3,840≥3,840≥3,840≥3,840≥3,840≥3,840≥3,840
Working Temperature (ºC)-20～+60-20～+60-20～+60-20～+60-20～+60-20～+60-20～+60-20～+60-20～+60-20～+60
Protecting GradeIP31IP31IP31IP31IP31IP31IP31IP31IP31IP31

Please leave your contact information so that we can communicate with you at any time.

Related Downloads

Catalog-FL series.pdf
