Key Product Features

Tag:

Folding LED poster Led Poster Display LED video wall

PIF SERIES

LED POSTER

A flexible and portable LED poster solution for retail, exhibitions, hotels, malls, and commercial advertising.

PIF SERIES

Built-in Speaker

The built-in high-quality speaker enables synchronized audio and video playback, enhancing advertising impact and on-site presentation.

One Item

Two Item

Three Item

PIF SERIES

Foldable

PIF Series supports backward folding and features a magnetic edge design, making installation, movement, and setup more convenient for exhibitions, retail stores, and event spaces.

Application Scenario

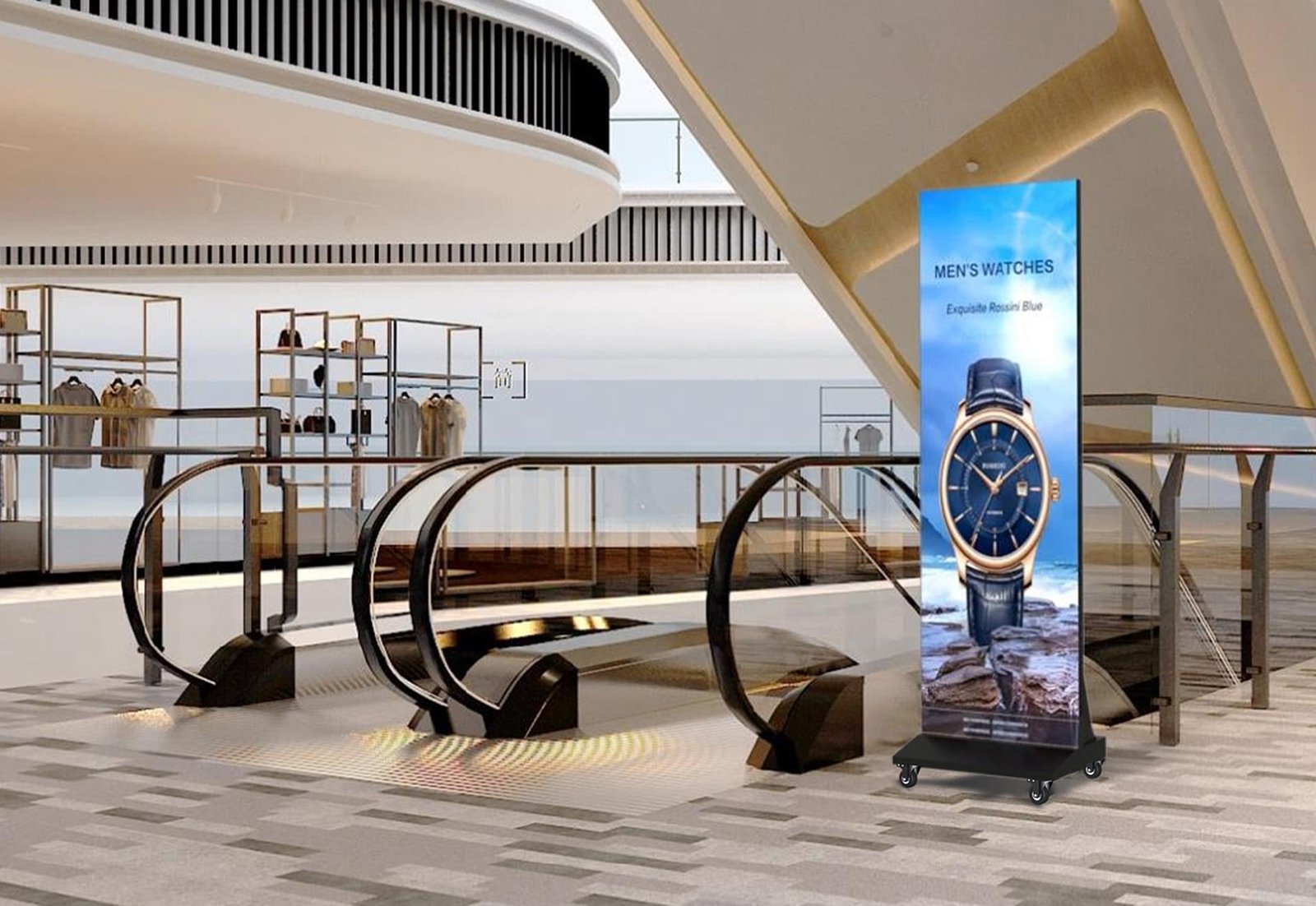

PIF Series folding LED poster display for events and retail signage - touring setup

Shopping Malls

Ideal for promotional advertising, brand campaigns, and digital information display

PIF Series folding LED poster display for events and retail signage - product configuration

Retail Stores

Used for product promotion, storefront advertising, and customer attraction

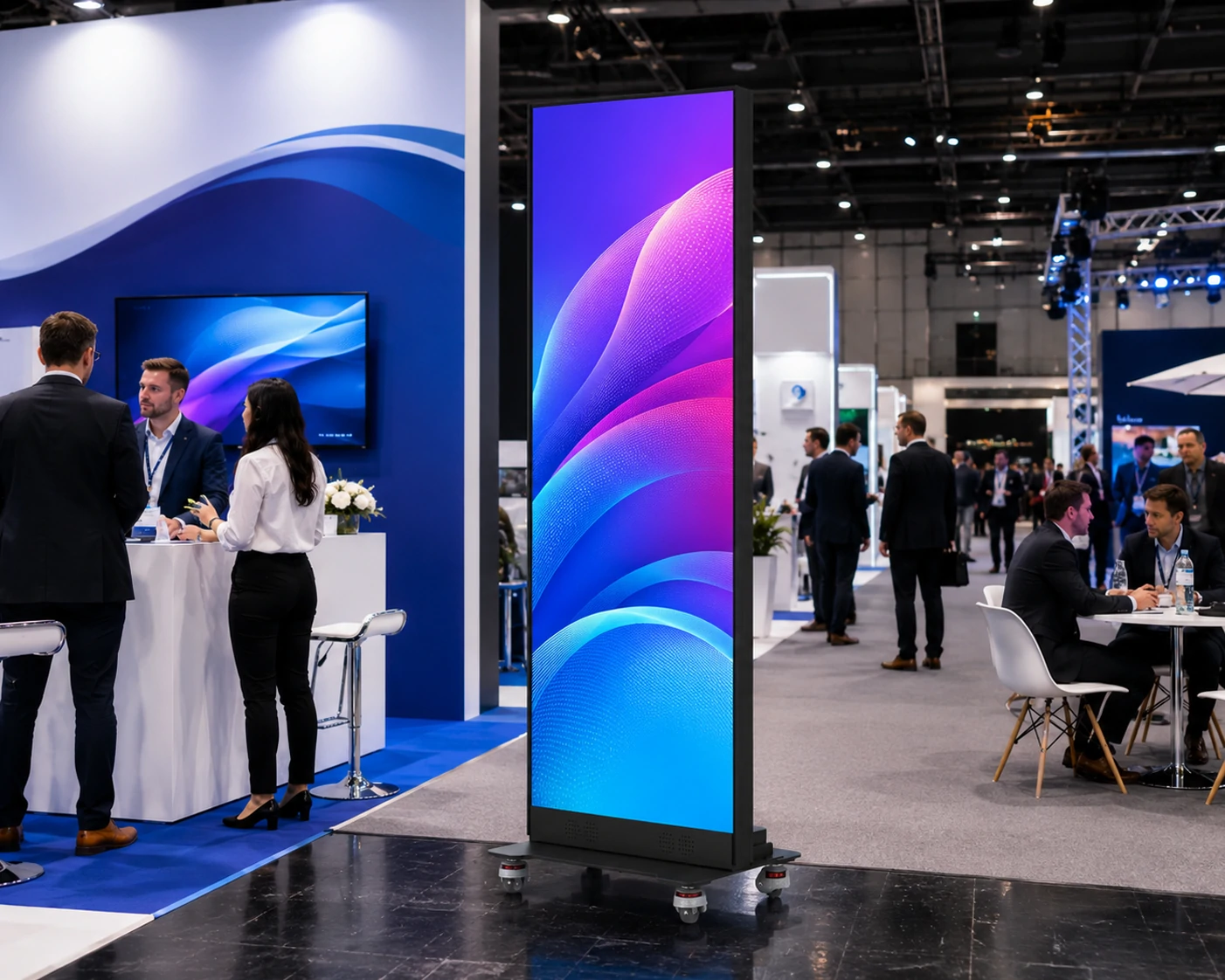

PIF Series folding LED poster display for events and retail signage - rental panel detail

Exhibitions & Events

Suitable for trade shows, conferences, and temporary event displays.

PIF Series folding LED poster display for events and retail signage - display performance

Hotels & Lobbies

Perfect for welcome screens, event schedules, and digital signage applications

ddwdisplay-20260616_093140

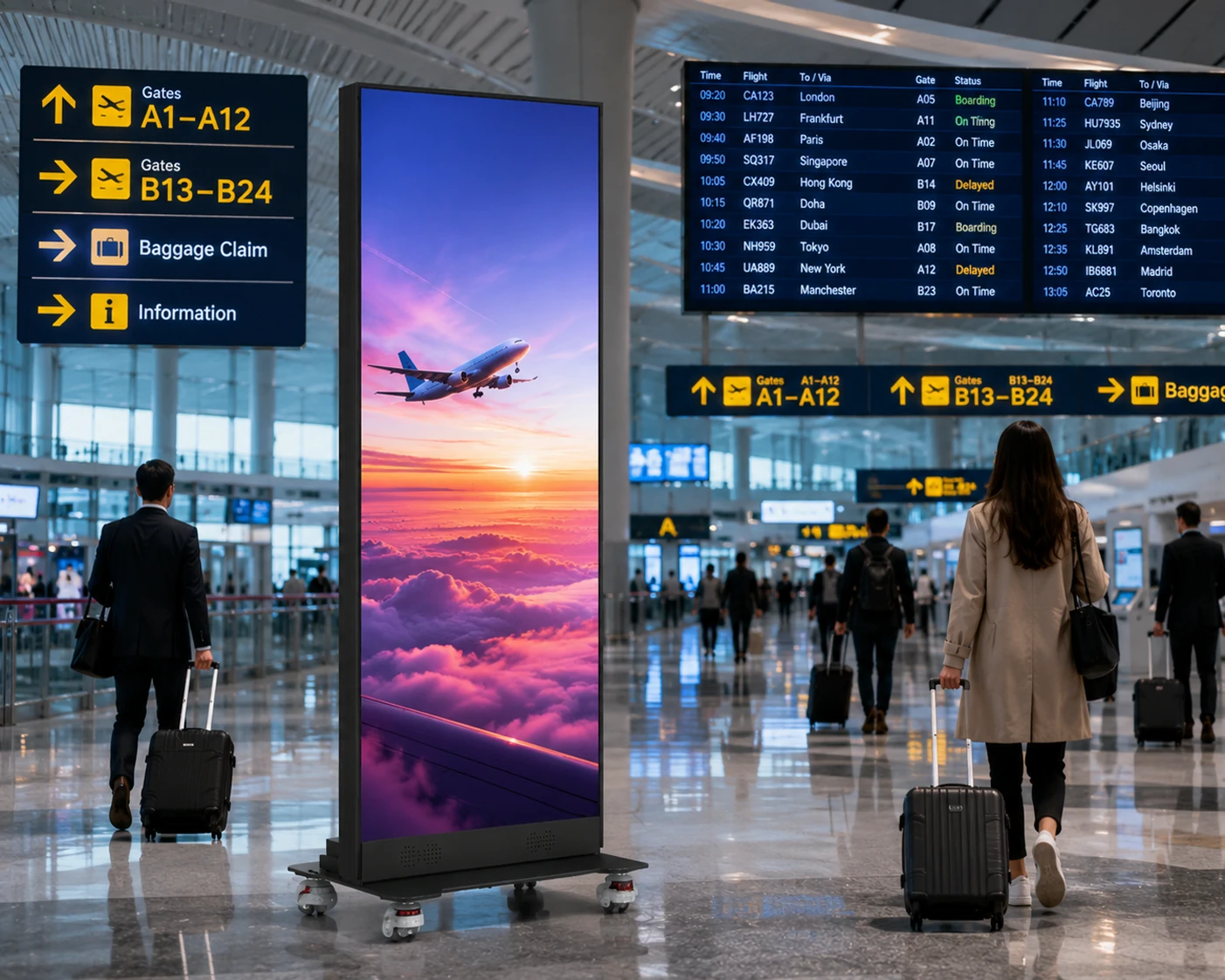

Airports & Transportation Hubs

Applicable for guidance systems, information display, and advertising

Corporate Showrooms

Enhances brand image presentation and immersive visual experiences

PIF series

Pixel Pitch

P1.25 P1.53 P1.86 P2 P2.5

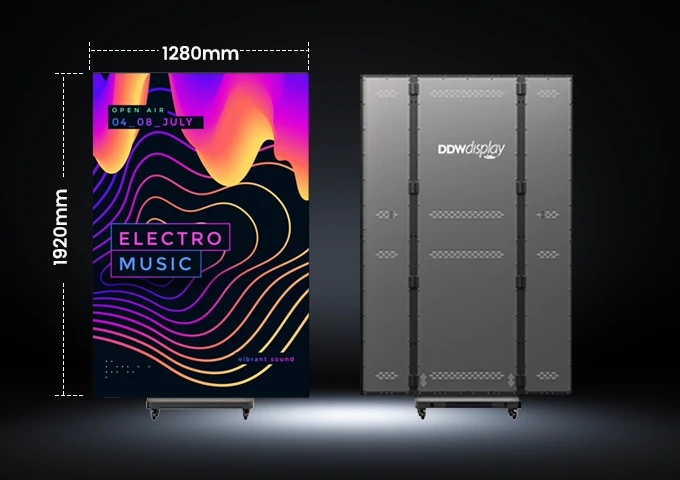

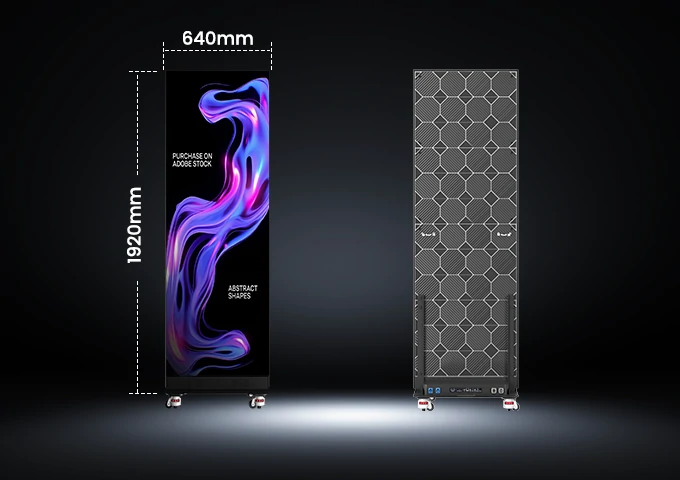

Display Size

640*1920mm /1280*1920mm

Module Size

320*160mm

Brightness

600-800cd/m²

Contrast ratio

5000:1

Refresh rate

3840-Hz

LED POSTER You Can Trust

PIF Series Foldable LED Poster is a portable indoor LED poster designed for retail stores, exhibitions, hotels, shopping malls, and brand promotion.

3840Hz High Refresh Rate

Smart Control

Maintenance Friendly

Folding LED poster

Three fold LED poster

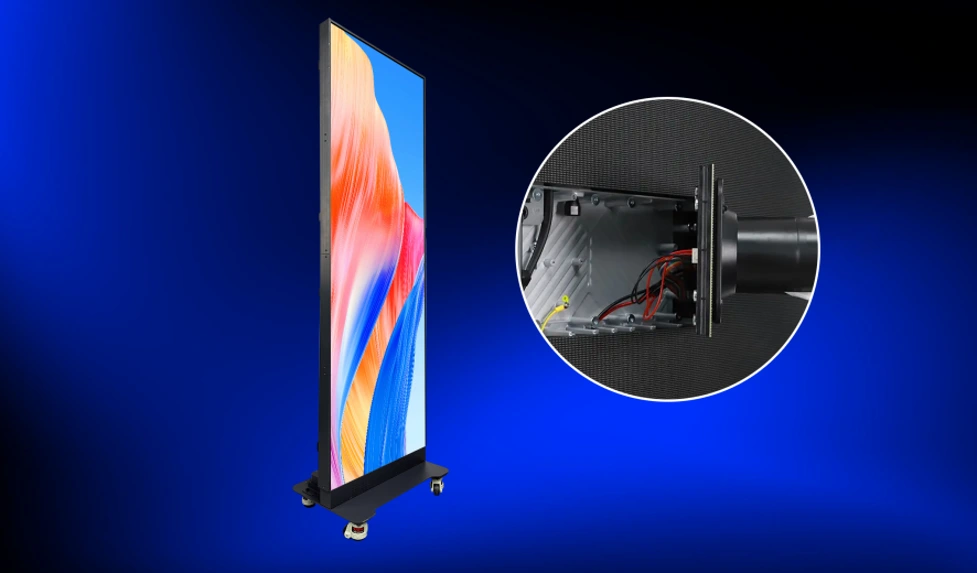

Front Maintenance Design

Adopting magnetic module design, easy and fast installation

Bc se With Wheels

The base uses high-end t, which are more mobile and stable and safer to use.

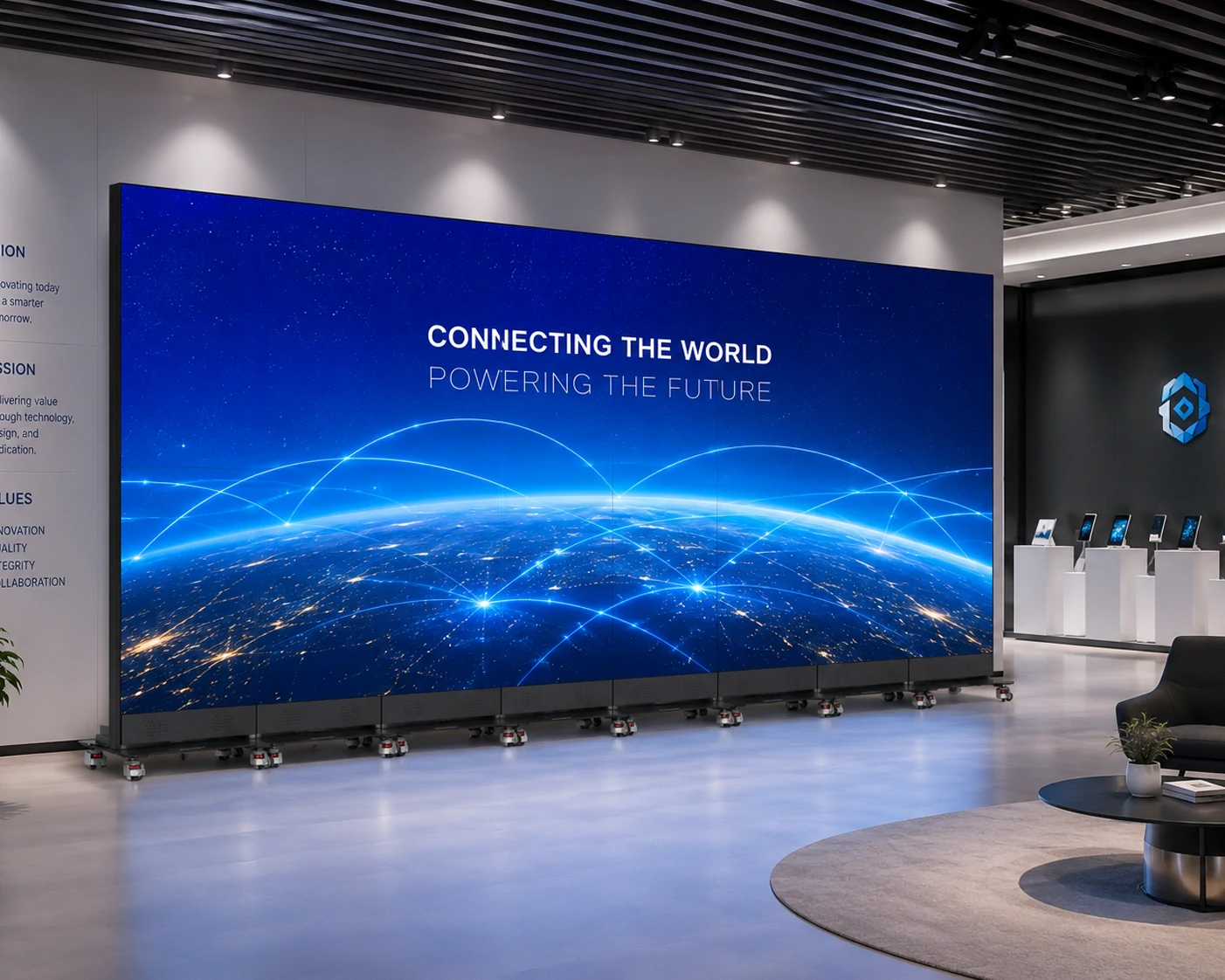

Seamless Splicing Screen Display

Supports either individual and combination display as video wall

MULTIPLE MODULE PROCESSES ARE
AVAILABLE FOR SELECTION

COB LED module

Advantages

High reliability: No gold wire bonding; strong resistance to static electricity and physical impact.High protection level: Dustproof, waterproof, impact- resistant, and oxidation-resistant; ideal for humid and dusty environments.Uniform display: Integrated surface ensures wide viewing angles and excellent color consistency.

GOB LED module

Advantages

Excellent protection: Dustproof, waterproof, impact-resistant, and moisture-proof; suitable for harsh environments like outdoors and public spaces.Scratch and pressure resistance: Glue layer protects LEDs from damage.Easy maintenance: Damaged LEDs can be replaced individually without changing the entire board.

HOB LED module

Advantages

Superior Protection: Offers waterproofing, dustproofing, impact resistance, anti-static, and moisture resistance.Higher Brightness & Contrast: The transparent layer has excellent optical clarity, with true-to-life colors and deep blacks.Low Failure Rate: LEDs are well-protected from falling off or damage.Easy to Clean & Maintain: Smooth, seamless surface is easy to wipe and resistant to dust buildup.

SMD LED module

Advantages

Mature and stable technology: High production efficiency.Cost-effective: Suitable for large-scale manufacturing.Good color uniformity: Integrated RGB chip design provides even light output.Versatile applications: Suitable for indoor/outdoor fixed installations, rental, and creative displays.

Smart Cloud Mannagement

LED screen content can be updated via iPad, mobile phone, PC or laptop. Play in real time and publish across platforms. Supports UsB or WIFI, supports IOS or Android device operation.

Next-Generation Visual Technology.

Professional Visual Performance

Advanced visual technology delivers better color, smoother images, eye protection, and energy-efficient performance.

01

3840Hz Refresh Rate

High brush low gray, refresh frequency up to 3840~7680Hz, gray level 14-16Bit

ddwdisplay-20260616_103037

02

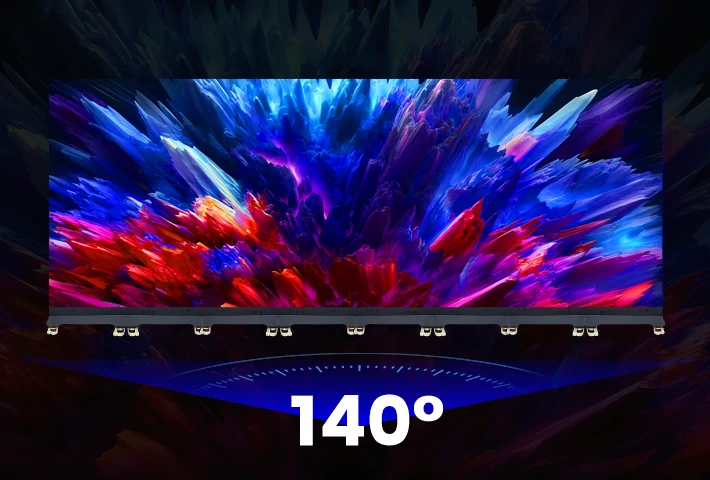

Wide Viewing Angle

140° wide viewing. Deliver an excellent viewing experience without the loss of true colour definition.

140

03

5000:1 High contrast

High contrast ratio expands the color dynamic range, making the picture more vivid and lifelike

ddwdisplay-20260616_103038

Product Parameter

Click and long-press on the form to swipe left or right.

Pixel pitch(mm)	P1.25	P1.53	P1.86	P2	P2.5
LED package	COB/GOB/HOB/SMD	COB/GOB/HOB/SMD	COB/GOB/HOB/SMD	GOB/HOB/SMD	GOB/HOB/SMD
Module resolution (W×H)	256×128pixels	208×104pixels	172×86pixels	160×80pixels	128×64pixels
Module dimension (W×H)	320mm×160mm
Display dimension (W×H)	640×1920mm/1280x1920mm
Module arrangement (W×H)	2×12/4x12
Cabinet flatness	≤0.1mm
Cabinet dimensions(W×H)	640mm×480mm
Weight	≤57.5kg/115kg
Serviceability	Front-access
Physical density	640,000dots/m²	422,500dots/m²	289,050dots/m²	250000dots/m²	160,000dots/m²
Brightness	600-800cd/m² (adjustable)
Viewing angle (H/V)	140°/140°
Screen flatness	≥98%
Chromaticity uniformity	±0.003
Contrast ratio(max)	5,000:1
IP rating	IP43
Color depth	14-16bit
Driving mode	1/43S
Refresh rate	≥3,840Hz
Color temperature	2,000K-9,500K(adjustable)
Input voltage	AC: 110V-240V, 50-60Hz
Max. power consumption	≤600W/m²
Ave. power consumption	160W/m² - 265W/m²
MTBF	≥10,000hrs
Operating environment - Temperature	-10℃ - +60℃
Operating environment - Humidity	30% -75%RH (no condensation)
