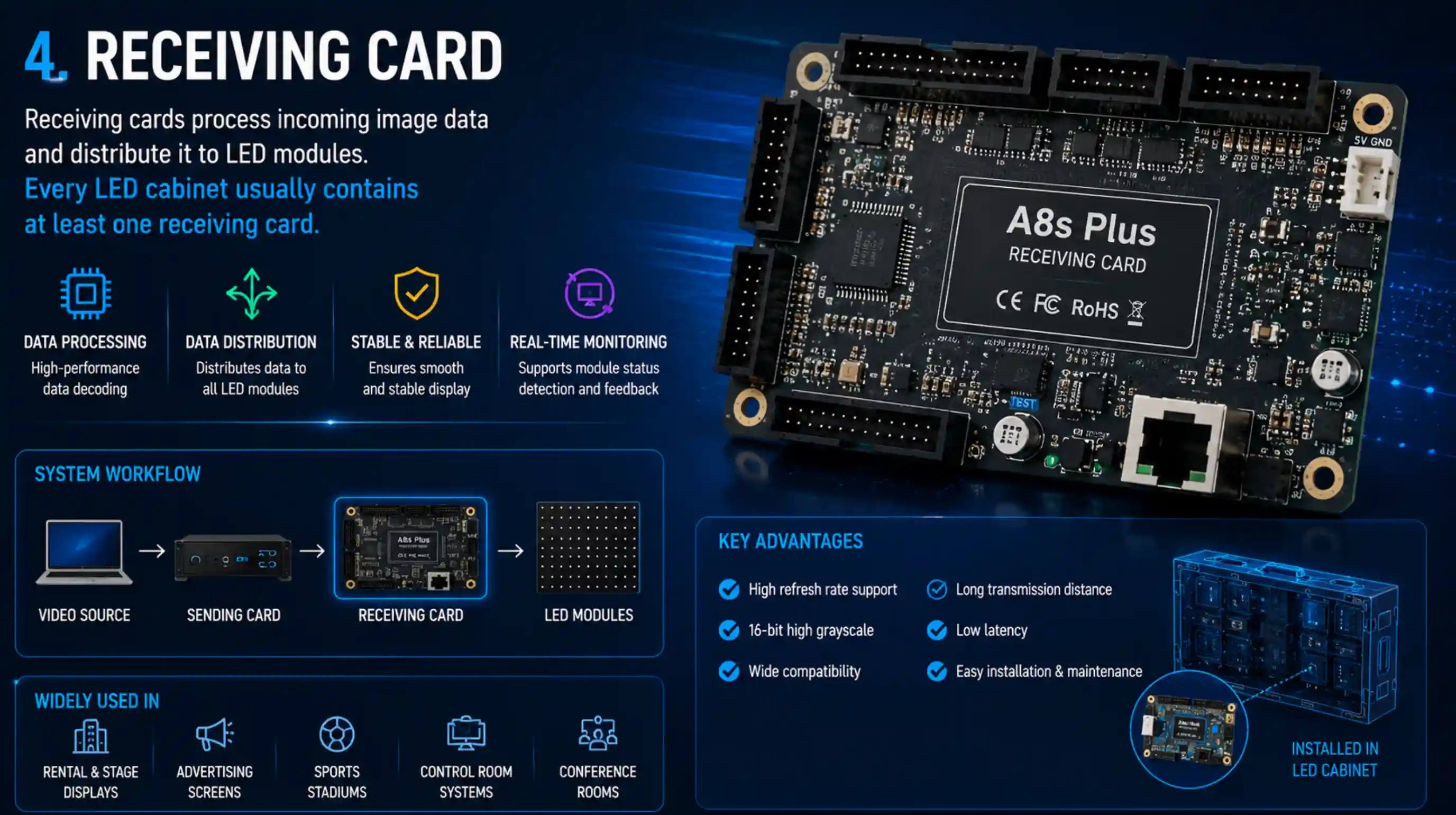

Receiving Card
Receiving cards process incoming image data and distribute it to LED modules.
Every LED cabinet usually contains at least one receiving card.
Why Receiving Cards Are So Important
Receiving cards directly affect:
- grayscale performance
- refresh rate
- color consistency
- signal synchronization
Even small configuration errors may create:
- abnormal colors
- image disorder
- flickering
- mapping issues

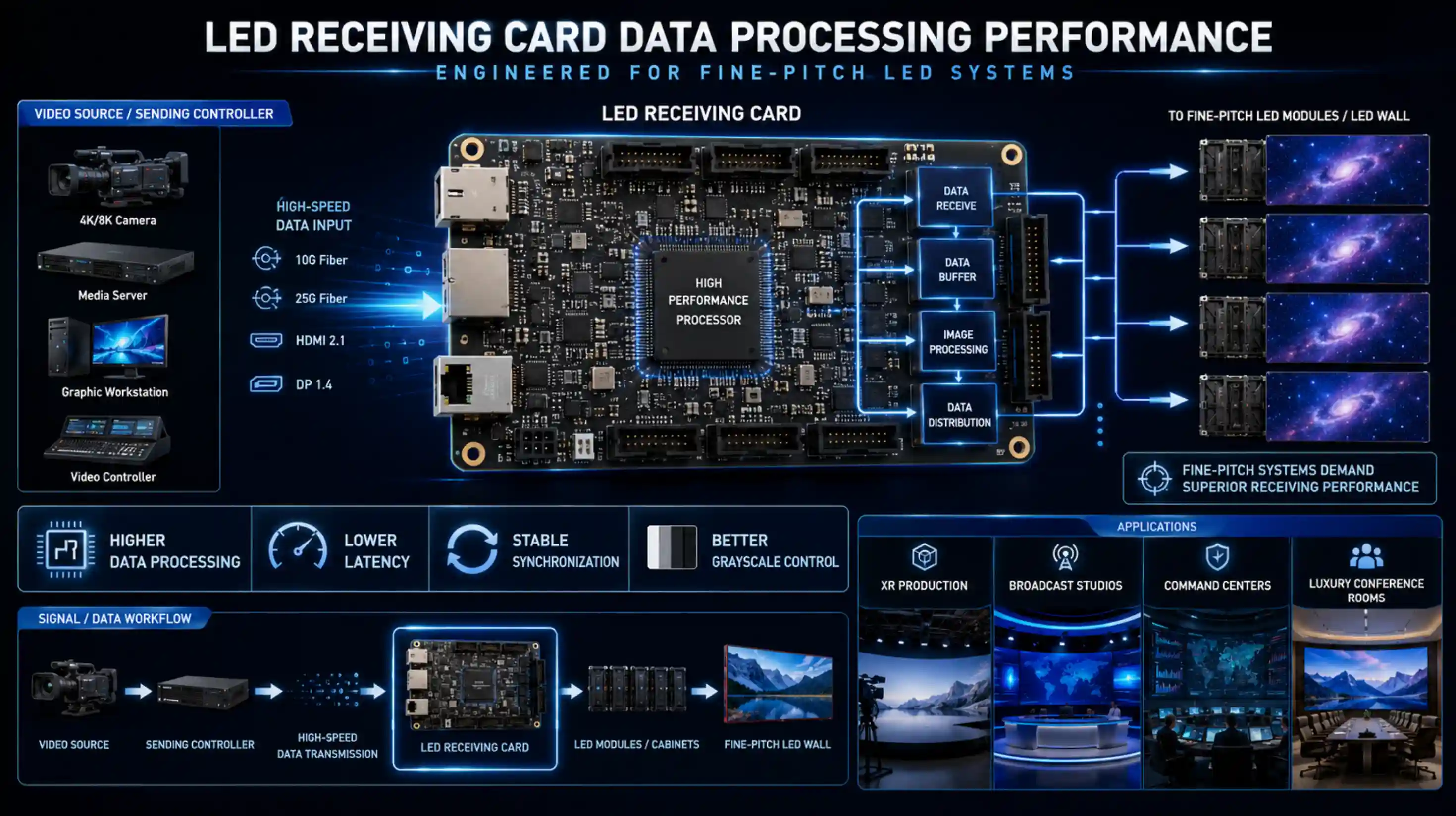

Why Fine-Pitch Systems Require Better Receiving Performance
In applications such as:
- XR production
- broadcast studios
- command centers
- luxury conference rooms
receiving card performance becomes much more critical.
This is because fine-pitch displays require:
- higher data processing
- lower latency
- stable synchronization
- better grayscale control
Why Backup Systems Matter
Large projects often use:
- dual receiving card backup
- redundant signal loops
- fail-safe architecture
especially in:
- stadium systems
- government command centers
- transportation control rooms
DDW Engineer Notes
Many troubleshooting attempts focus immediately on replacing modules.
However, signal mapping and receiving card configuration problems are often the real cause behind abnormal display behavior.
