D Series rental LED Screen
tag:
P1.56 P1.95 P2.6 P2.97 P3.91(indoor) P2.604 P2.976 P3.91(outdoor) 500x500mm Curved aluminum LED cabinet HUB board connection
Inquiry
Excellent Display Experience
7680Hz high refresh rate, high grayscale, and high brightness provide an excellent viewing experience.

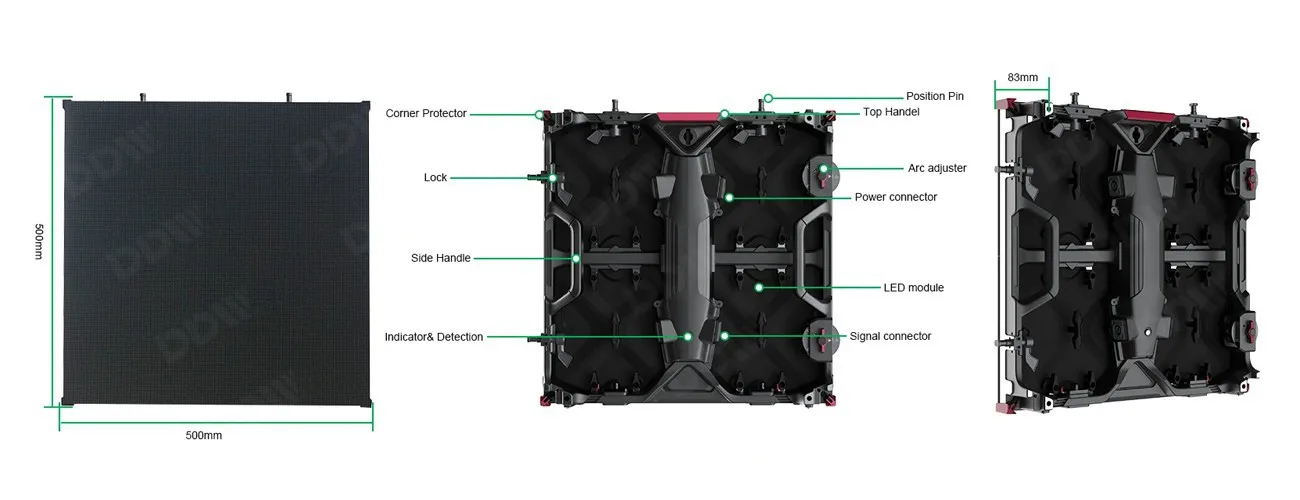

Perfect Cabinet Design
Excellent product came in all details from cabinet handle. cabinet fxied slot, fast lock,magnet adsorption module, module installation knob, Power& signal connector, detachable power boxing, and more
IP65 protection level
IP65 dustproof and waterproof, which can resist harsh weather conditions in outdoor activities
Curved Installation (Optional)
Can be installed in inner arc or outer arc
Right angle installation
Customizable 45 ° beveled cabinet installation with 90 ° right angle display

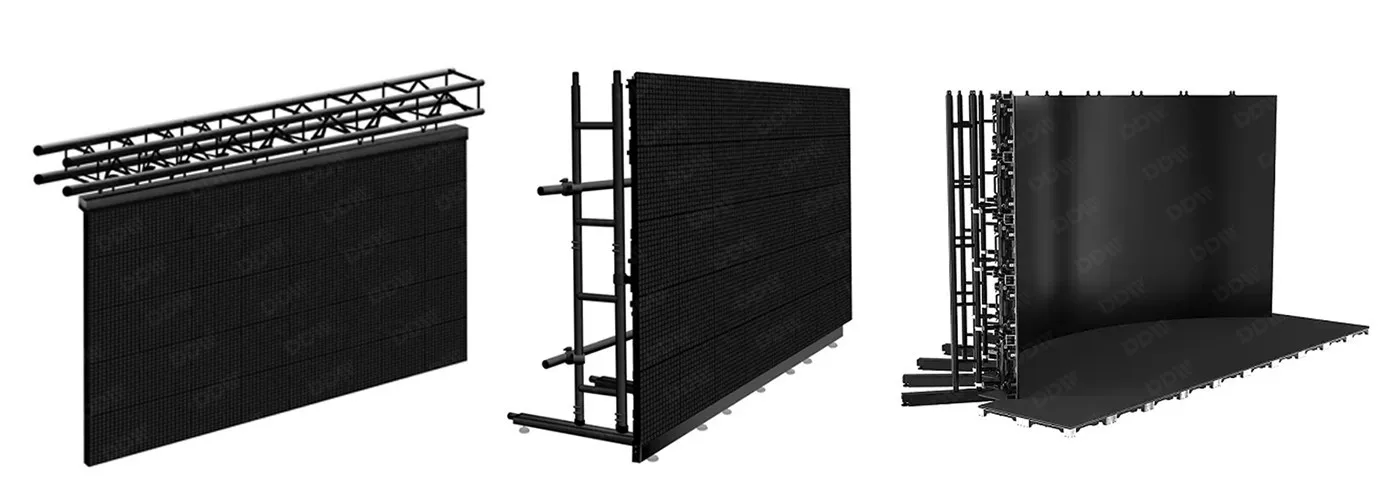

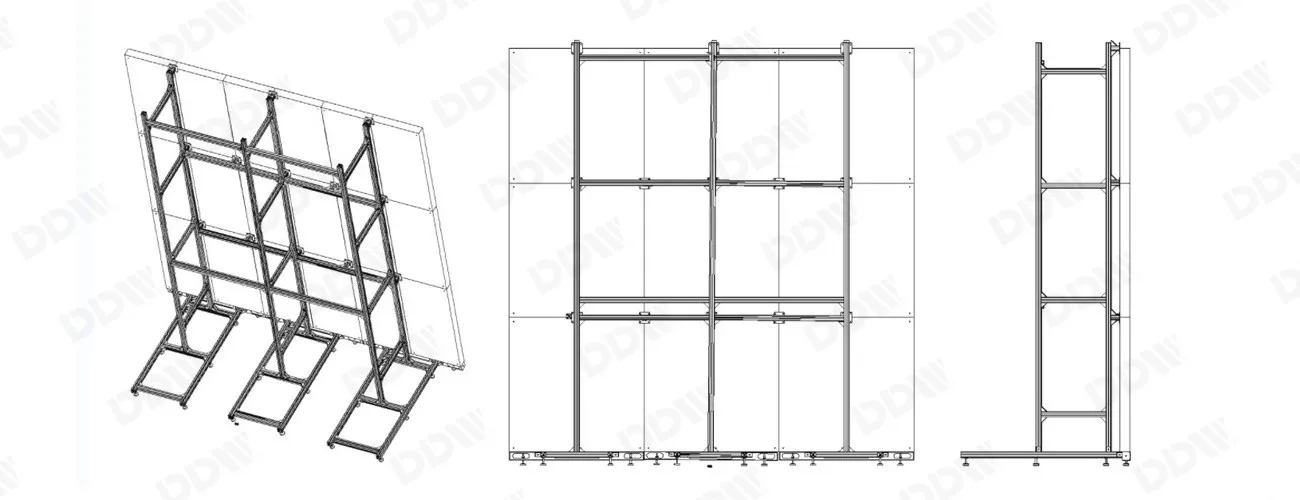

Creative installation
500x500 cabinets can be staggered vertically,Install different creative LED screens

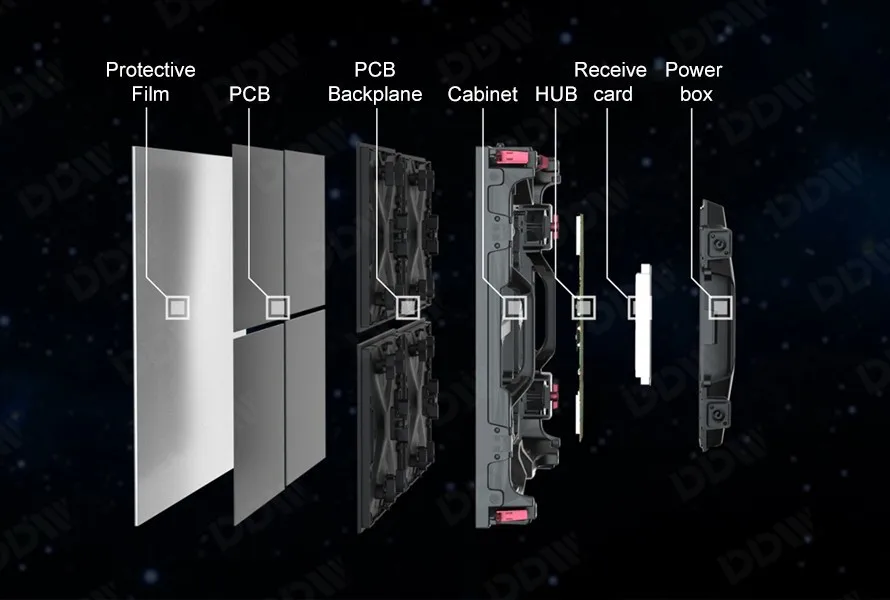

Design of independent power box
Dual signal backup, independent power box design for more stable use
Die cast aluminum cabinet
Die cast aluminum cabinet is lightweight, with a more high-end and stable appearance using advanced technology
-
7680Hz
-
Perfect Cabinet Design
-
IP65 Waterproof
-
High Flexibility
-
Right angle installation
-
Creative installation
-
Dual backup signal
-
7.5kg
Download Brochure | Specs\Applications | Indoor 500*500(mm) | |||||
| Pixel Pitch | 1.56mm | 1.95mm | 2.6mm | 2.604mm | 2.976mm | 3.91mm |
| Lamp Types | SMD1212 | SMD1515 | SMD1515 | SMD1515 | SMD1515 | SMD2020 |
| Scan | 1/40S | 1/32S | 1/24S | 1/16S | 1/21S | 1/16S |
| Module size(mm) | 250*250 | |||||
| Module Resolution(Pixels/pcs) | 160*160 | 128*128 | 96*96 | 96*96 | 84*84 | 64*64 |
| Module weight(kg) | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 |
| Cabinet size(mm) | 500*500 | |||||
| Cabinet resolution(Pixels/pcs) | 320*320 | 256*256 | 192*192 | 192*192 | 168*168 | 128*128 |
| Cabinet Weight(kg) | 7.5±5% | 7.5±5% | 7.5±5% | 7.5±5% | 7.5±5% | 7.5±5% |
| Per cabinet Module quanity(pcs) | 4 | |||||
| Pixel density(Pixels/m²) | 409600 | 262144 | 147456 | 147456 | 112896 | 65536 |
| Material | Die-casting aluminum | |||||
| Real Brightness(cd/m²) | 1000 | 1000 | 1000 | 1000 | 1200 | 1000 |
| Grey grade | 16bit | 16bit | 16bit | 16bit | 16bit | 16bit |
| Refresh rate | >=7680Hz | |||||
| Input Voltage | AC100-240V, 50/60Hz | |||||
| Power Consumption(Max.W/m²) | around 560 | |||||
| Power Consumption(Ave.W/m²) | around 280 | |||||
| IP rating(Front/Rear) | IP54 | |||||
| Arc angle | （-10°、-7.5°、-5°、-2.5°、0°、2.5°、5°、7.5°、10°） | |||||
| Operating temperature | -20℃ ~ +45℃ | |||||
| Operating humidity | 10% ~90%RH | |||||
| Storage temperature | -10℃ ~ +40℃ | |||||
| Storage humidity | 10% ~60%RH | |||||
| Lifespan (Hrs) | ≥50,000 | |||||
| Specs\Applications | Outdoor 500*500(mm) | |||
| Pixel Pitch | 2.604mm | 2.976mm | 3.91mm | 3.91mm |
| Lamp Types | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Scan | 1/12S | 1/14S | 1/11S | 1/16S |
| Module size(mm) | 250x250 | |||
| Module Resolution(Pixels/pcs) | 96*96 | 84*84 | 64*64 | 64*64 |
| Module weight(kg) | 0.35 | 0.35 | 0.35 | 0.35 |
| Cabinet size(mm) | 500x500 | |||
| Cabinet resolution(Pixels/pcs) | 192*192 | 168*168 | 128*128 | 128*128 |
| Cabinet Weight(kg) | 7.8±5% | 7.8±5% | 7.8±5% | 7.8±5% |
| Per cabinet Module quanity(pcs) | 4 | |||
| Pixel density(Pixels/m²) | 147456 | 112896 | 65536 | 65536 |
| Material | Die-casting aluminum | |||
| Real Brightness(cd/m²) | 4500 | 4200 | 5000 | 3800 |
| Grey grade | 16bit | 16bit | 16bit | 16bit |
| Refresh rate | ≥7680 | |||
| Input Voltage | AC100-240V,50/60Hz | |||
| Power Consumption(Max.W/m²) | around 650 | |||
| Power Consumption(Ave.W/m²) | around 325 | |||
| IP rating(Front/Rear) | IP65 | |||
| Arc angle | （-10°、-7.5°、-5°、-2.5°、0°、2.5°、5°、7.5°、10°） | |||
| Operating temperature | -20℃ ~ +45℃ | |||
| Operating humidity | 10% ~90%RH | |||
| Storage temperature | -10℃ ~ +40℃ | |||
| Storage humidity | 10% ~60%RH | |||
| Lifespan (Hrs) | ≥50,000 | |||
