Made out of P1.5 P1.8 P2 P2.5 240x120 320x160 flexible led modules, widely used for airports, shopping malls, science exhibitions, concerts, theaters, television studios, creative exhibition halls,nightclubs,weddings and other multimedia fields.
3840 Hz
Wide Viewing Angles
Arc installation
High Flexibility
Magnetic Suction Installation
Front Maintenance
Die Cast Aluminum
Low Power Consumption

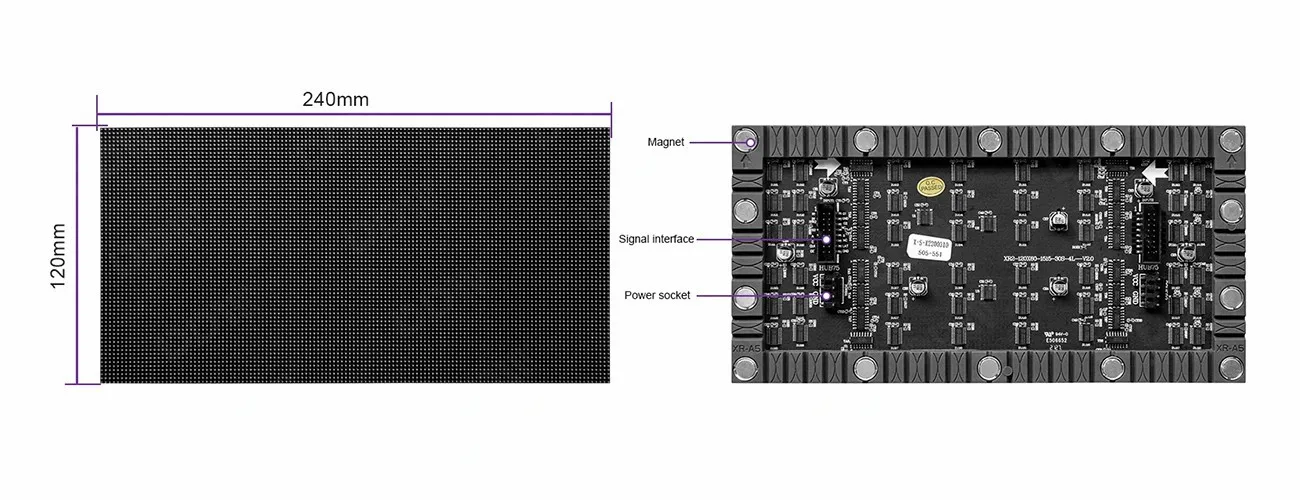

The dimensions of flexible led modules are 240 * 120 (mm) and 320 * 160 (mm). These modules will be the basic elements to build the entire screen.

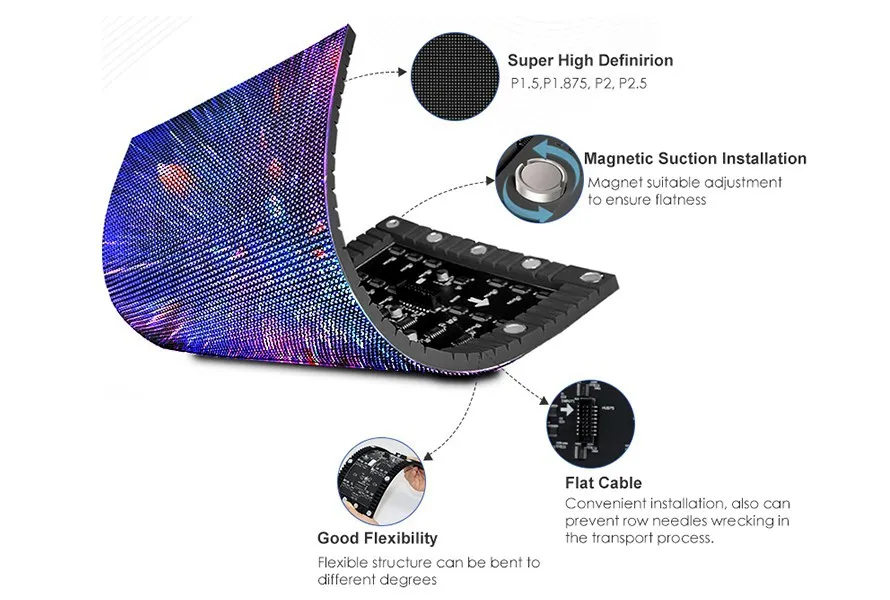

Magnet suitable adjustment to ensure flatness

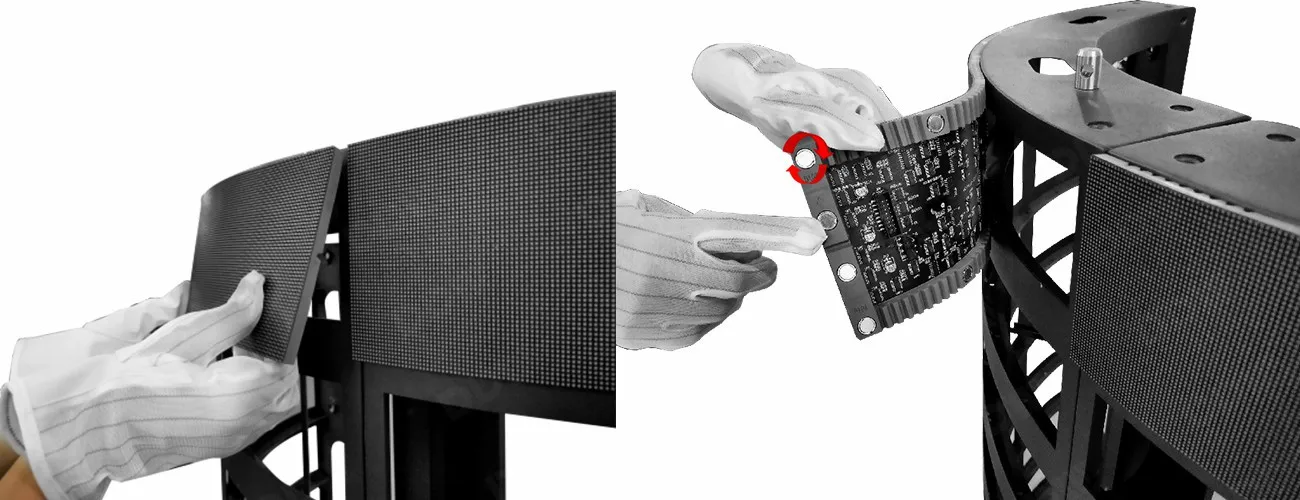

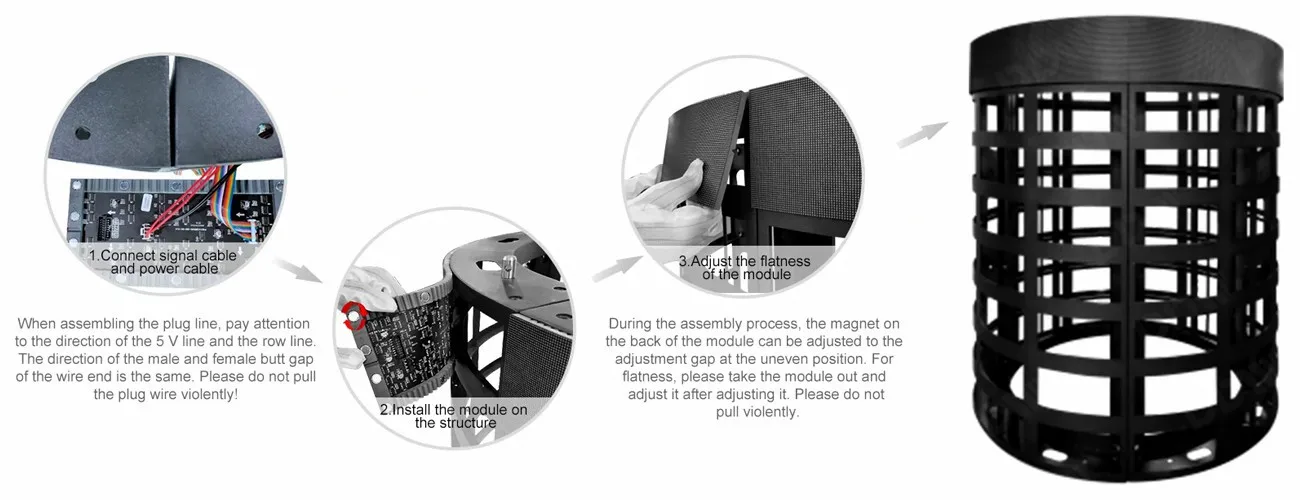

There're multiple strong magnets on rear of each module. You need to just paste on the frame surface during the assembly process.When the frame surface is uneven and there is a gap, it allows us to adjust flexibly. We can also easily remove the module and restore it back.
| Pixel pitch | P1.56 | P1.875 | P2 | P2.5 |
| Module size/mm | 240*120 | 240*120 | 240*120 | 240*120 |
| Weight | 190g | 170g | 170g | 170g |
| Color | 1R1B1G | 1R1B1G | 1R1B1G | 1R1B1G |
| Modulator tube | SMD1010 | SMD1010 | SMD1010 | SMD1515 |
| Resolution | 409600 | 284444 | 250000 | 160000 |
| View angle | 140° | 140° | 140° | 140° |
| Brightness cd/m² | 800-1200 | 800-1200 | 800-1200 | 800-1200 |
| Best view distance/m | >1.56 | >1.875 | >2 | >2.5 |
| Frame rate | ≥60/sec | ≥60/sec | ≥60/sec | ≥60/sec |
| Protective Grade | IP31 | IP31 | IP31 | IP31 |
| Drive mode | Dynamic scan | Dynamic scan | Dynamic scan | Dynamic scan |
| Refresh rate/Hz | 1920/3840 | 1920/3840 | 1920/3840 | 1920/3840 |
| Scan Mode/s | 1/48 | 1/32 | 1/32 | 1/32 |
| Maximum power w/m² | 700 | 700 | 700 | 700 |
| Average power w/m² | 350 | 350 | 350 | 350 |
| Working temperature | -15℃~+40℃ | -15℃~+40℃ | -15℃~+40℃ | -15℃~+40℃ |
| Storage Humidity | -25%~+70% | -25%~+70% | -25%~+70% | -25%~+70% |
| Controlling system | Synchronous | Synchronous | Synchronous | Synchronous |
Made out of multiple specs of P1.5 P1.8 P2 P2.5 240x120 320x160 flexible led modules, widely used in shopping malls, science exhibitions, concerts, theaters, TV studio, creative exhibition hall and other multimedia areas.
Learn More>
Made out of P1.5 P1.8 P2 P2.5 240x120 320x160 flexible led modules, widely used for indoor curve LED screens for decoration,advertising,creative design studio,cylinder, sphere and any place need to realize some eye catching applications.
Learn More>
LED screens can provide any information you need to convey to students, teachers, and staff. Besides, the Digital led wall does it in an eye-catching method that’s sure to impress.
Learn More>
A Sphere LED display is a creative LED display, which is an important milestone in the development of LED display screen. It has the characteristics of multiple splicing display, flexible shaped display, uniform display, high-definition image without distortion, etc Spherical LED display has high commercial value. It is widely used in shopping malls, science exhibitions, concerts, theaters, TV studio, creative exhibition hall and other multimedia areas. DDW Display is your ideal customized LED display supplier. No matter different sizes and creative shapes, we can provide all in one customize LED display solution according to your actual on-site requirements.
Learn More>

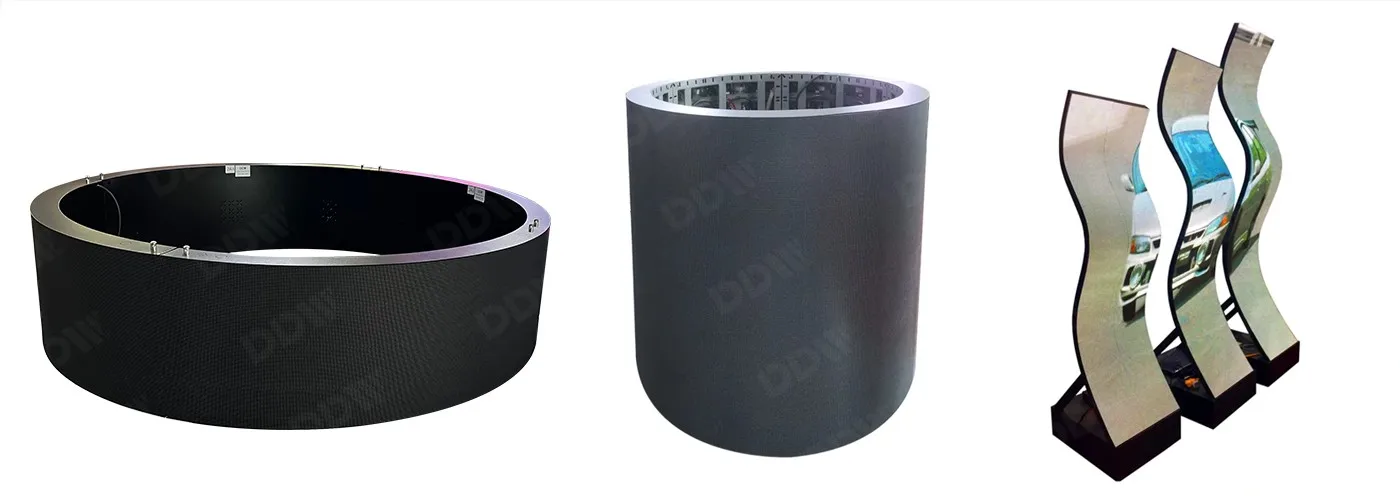

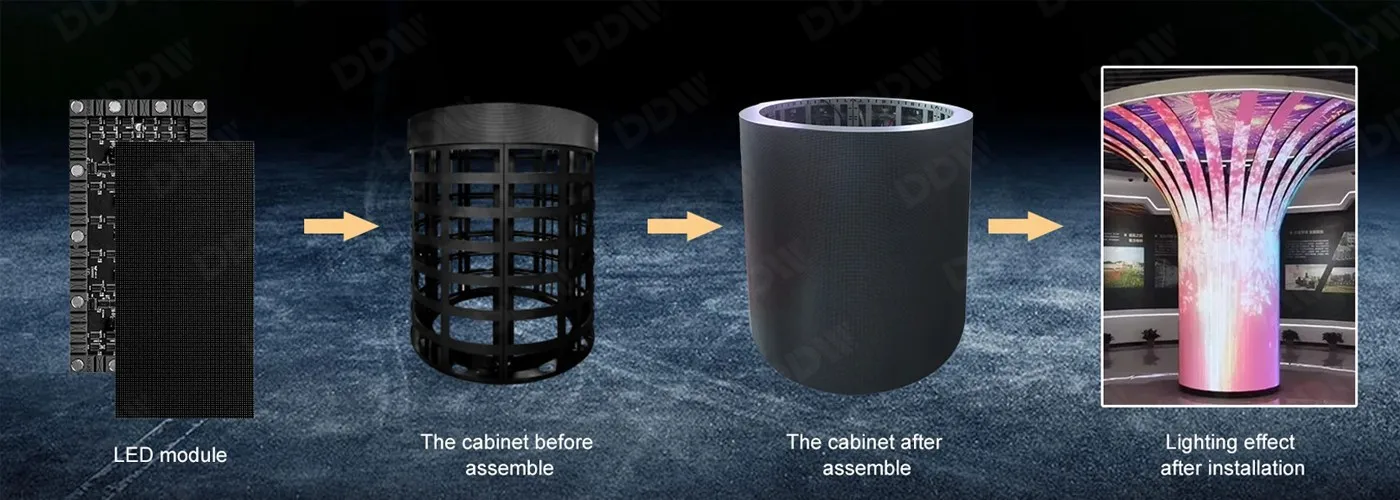

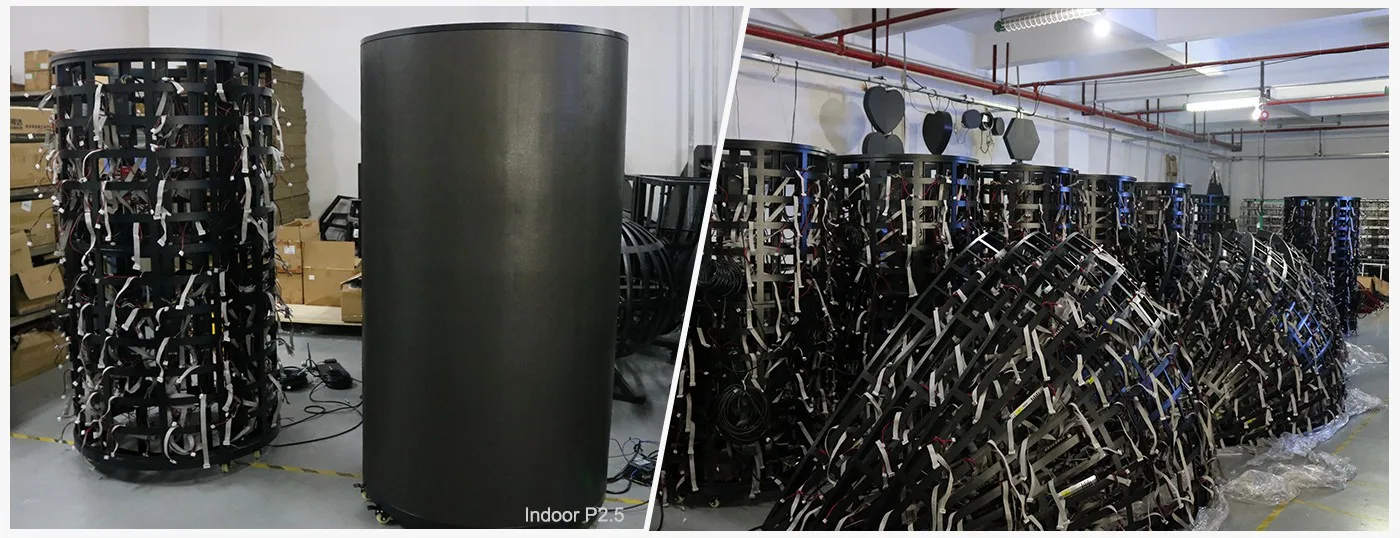

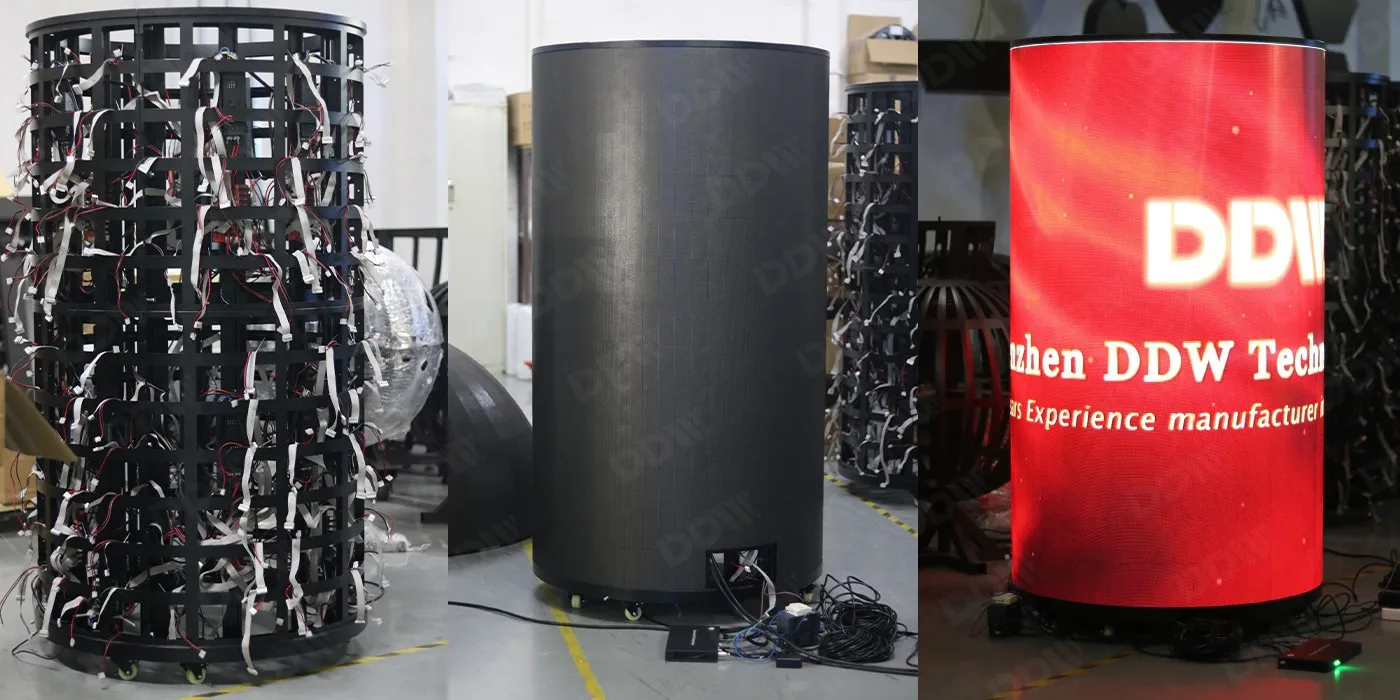

Cylinder LED display is a new floor standing creative LED display consist of flexible LED modules. It can be made as free floor standing type and can also be wrapped on the surface of the column. Widely used for airports, shopping malls, science exhibitions, concerts, theaters, television studios, creative exhibition halls,nightclubs,weddings and other multimedia fields.
Learn More>
Flexible LED display is a new type of LED display composed of flexible LED modules. It can be widely used for indoor and outdoor creative designed display and some display scenes requiring arc shape. Popular applications such as Indoor curve LED screens for decoration,advertising,creative design studio,cylinder, sphere and any place need to realize some eye catching applications. Generally, based on current mature technology, there’re two sizes 240*120 320*160.
Learn More>
