A Series rental LED display
tag:
P1.95 P2.604 P2.976 P3.91 P4.81(indoor) P2.976 P3.91P 4.81(outdoor)500x500mm and 500x1000mm HUB board connection
Inquiry

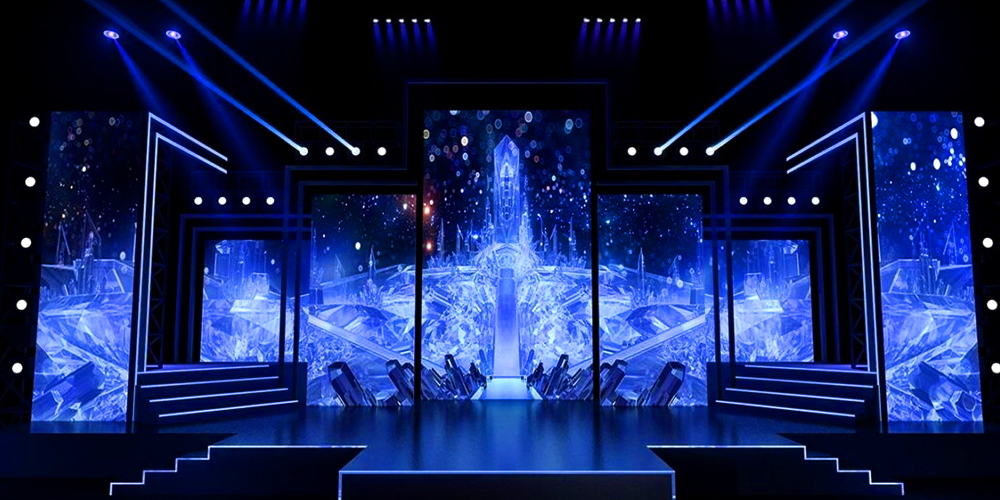

Excellent Display Experience
3840Hz high refresh rate,smooth performance with no ghosting or flickering, perfect for live shows

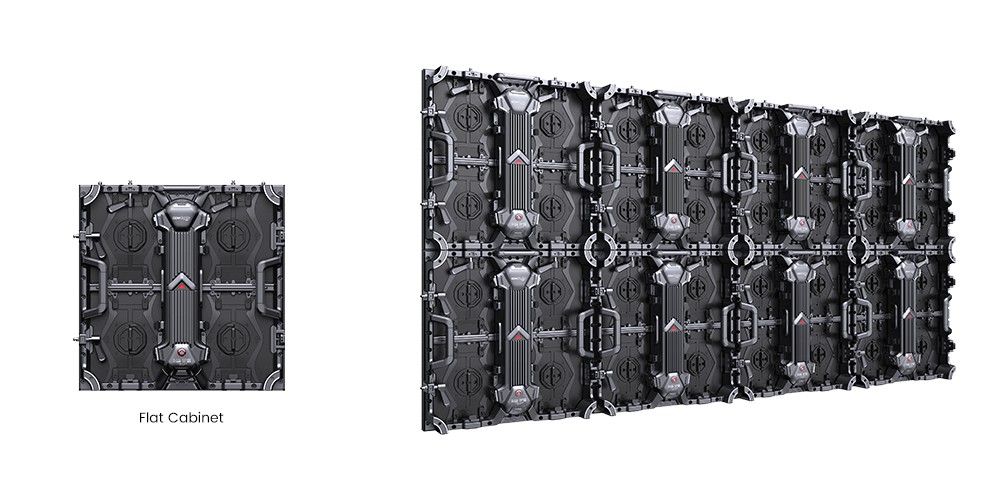

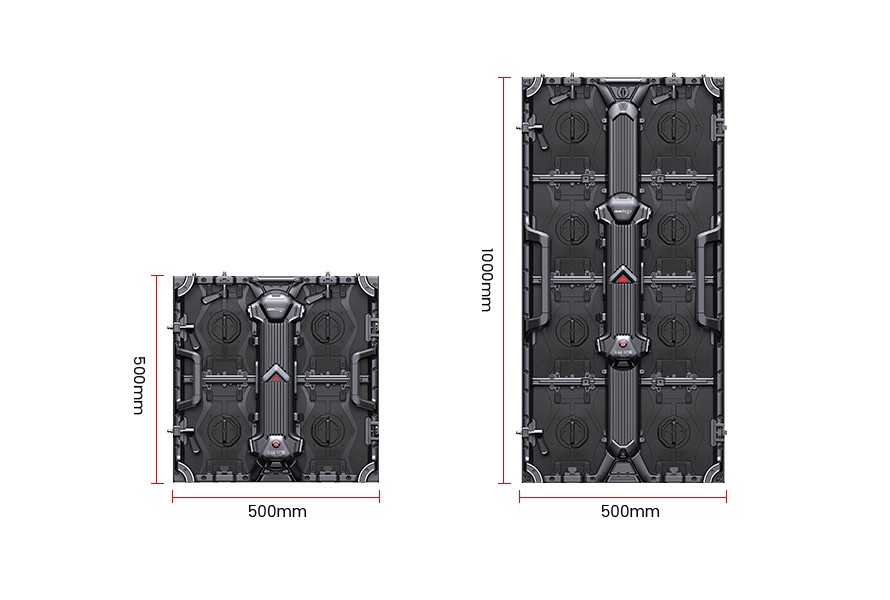

Flexible size
500x500mm/500x1000mm cabinet size flexibly adapts to different display requirements
IP65 protection level
IP65 dustproof and waterproof, which can resist harsh weather conditions in outdoor activities

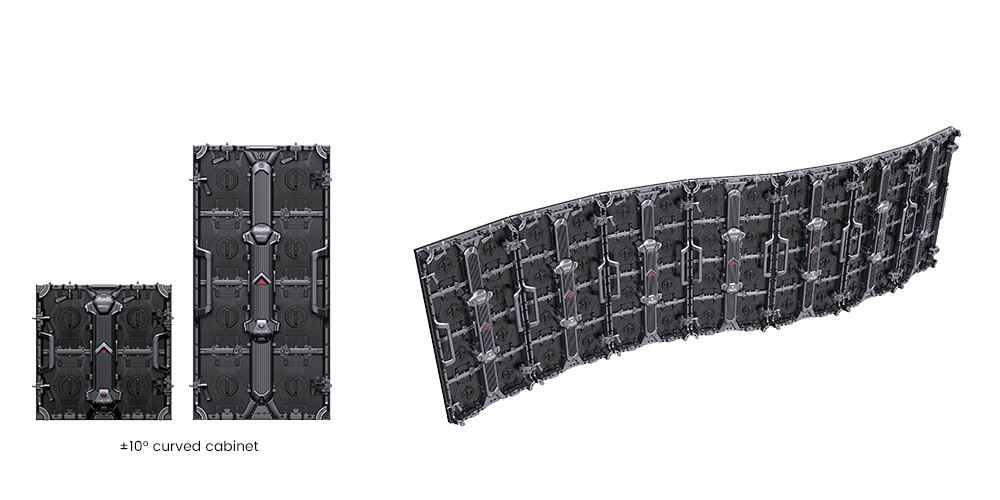

Curved Installation
Can be installed in inner arc or outer arc

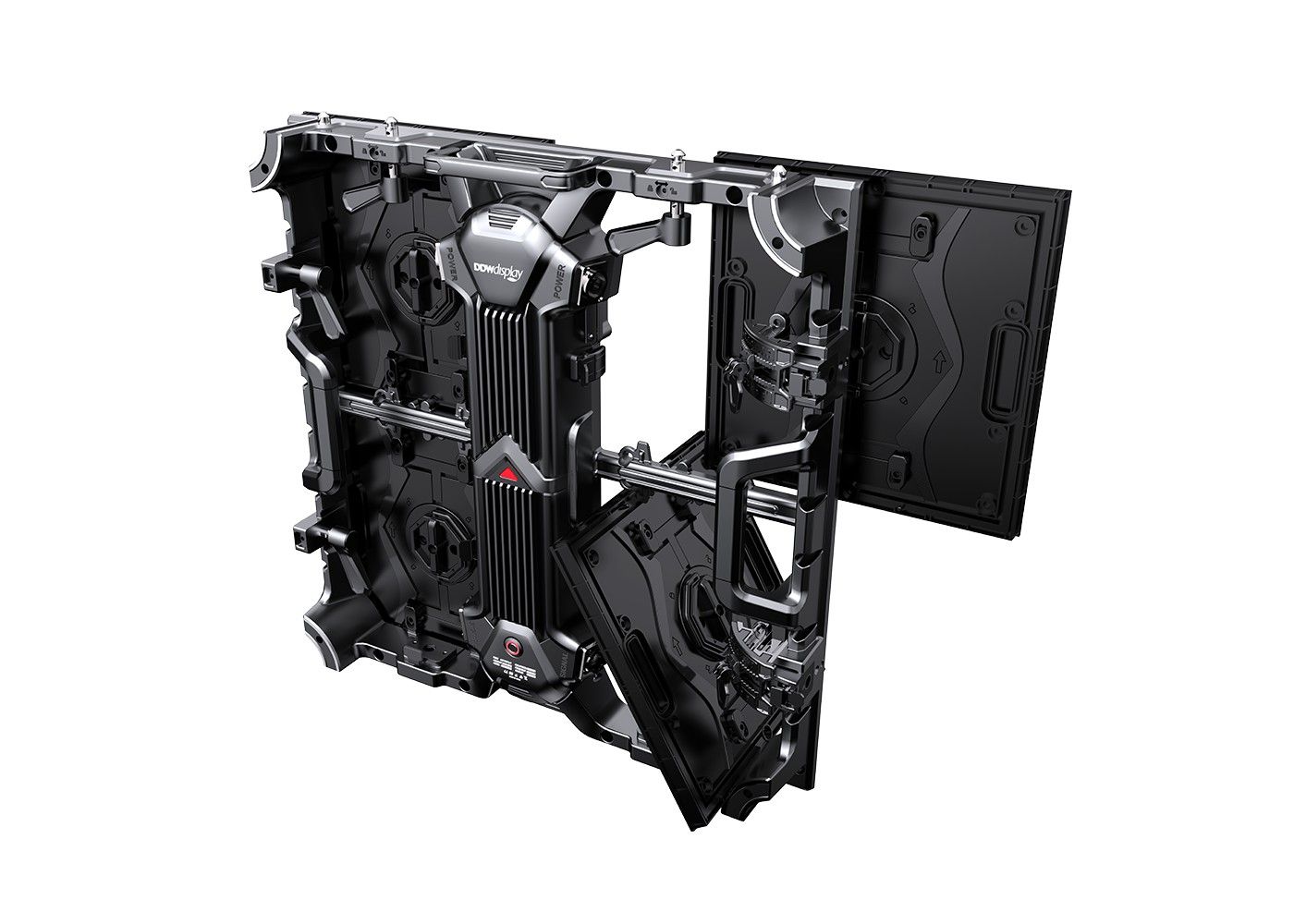

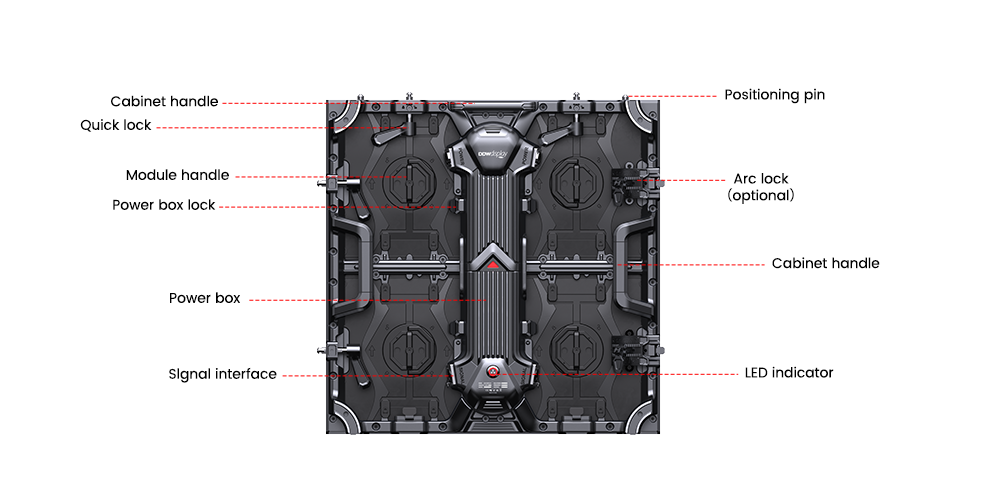

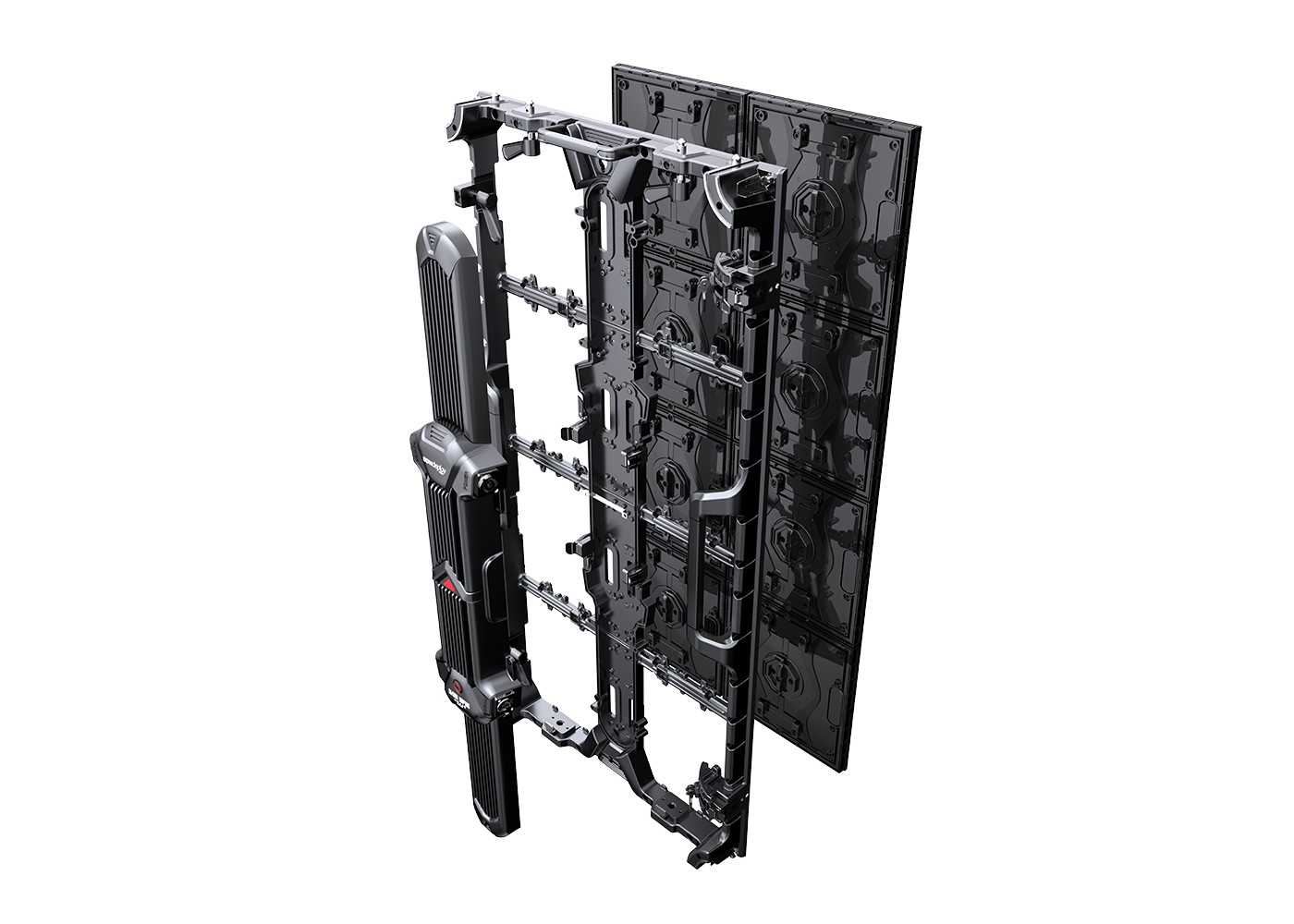

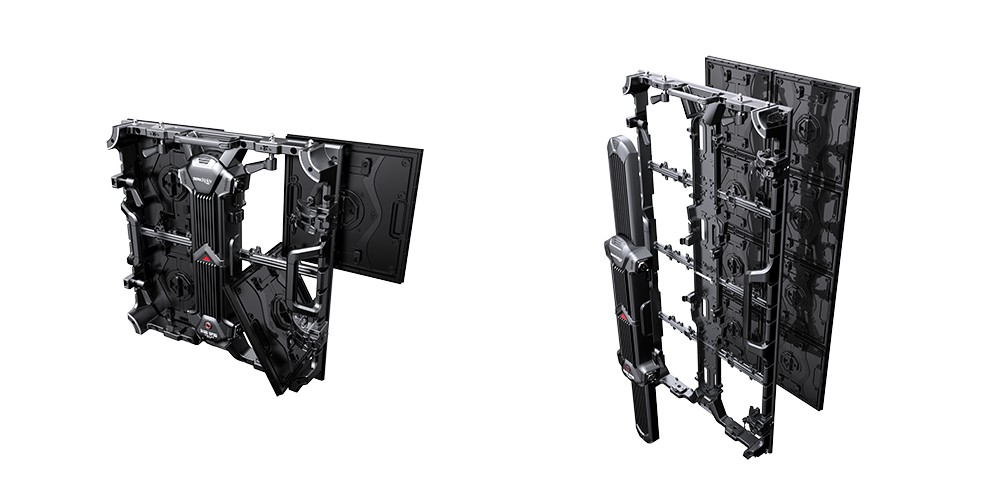

Easy and fast installation
Combined with front and rear maintenance structures, which greatly simplifies the installation process and significantly improves maintenance efficiency.

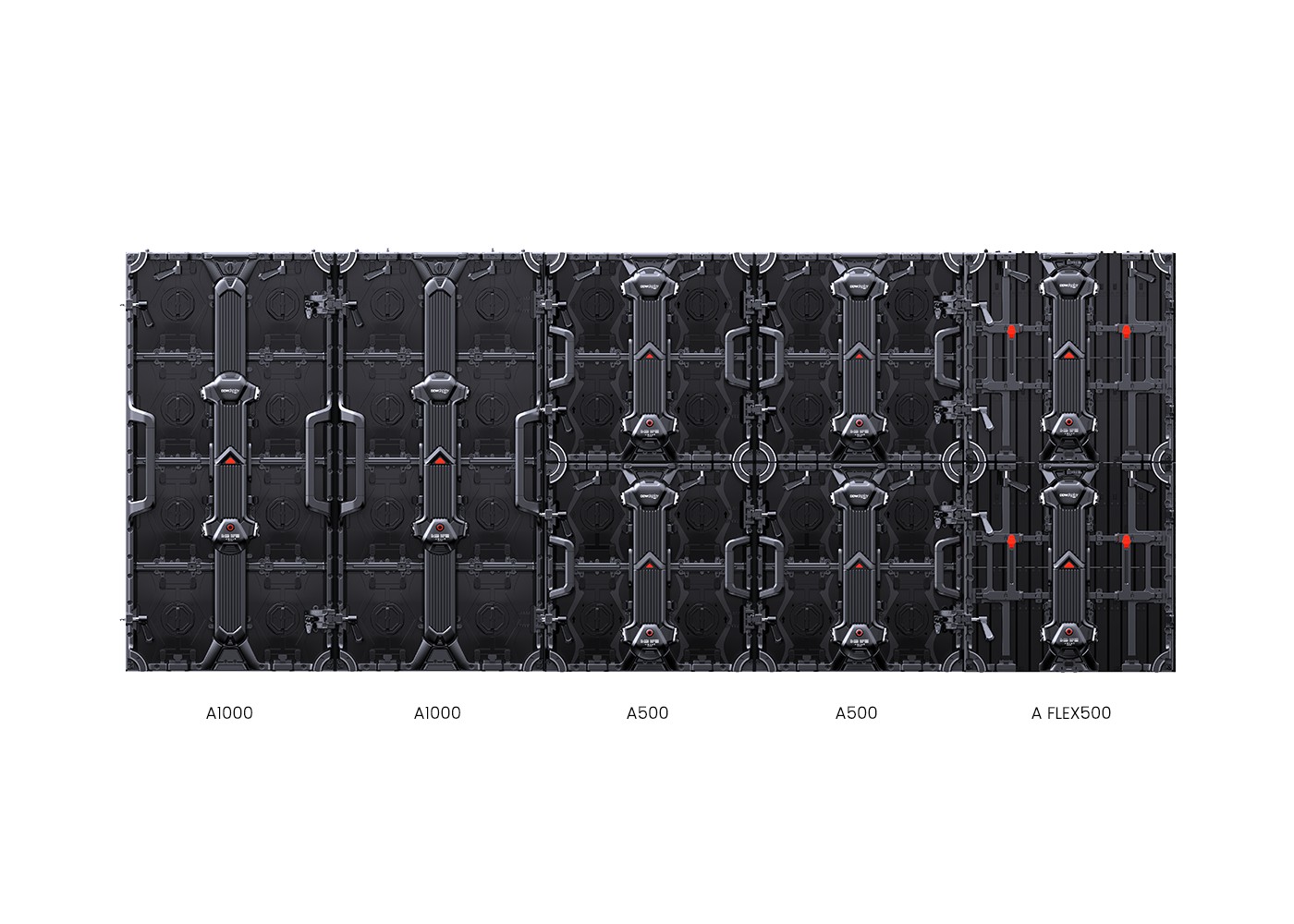

Strong compatibility

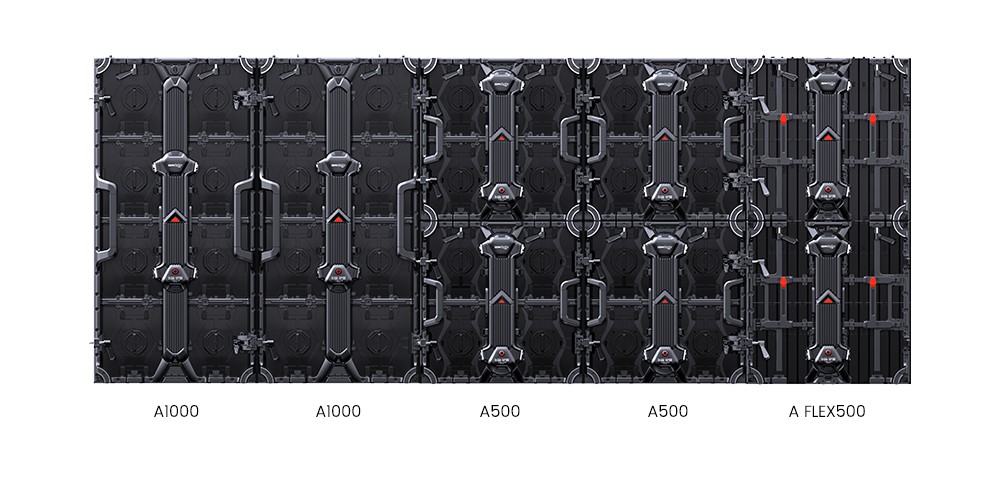

Support A FLEX-series cabinet type splicing to achieve seamless integration

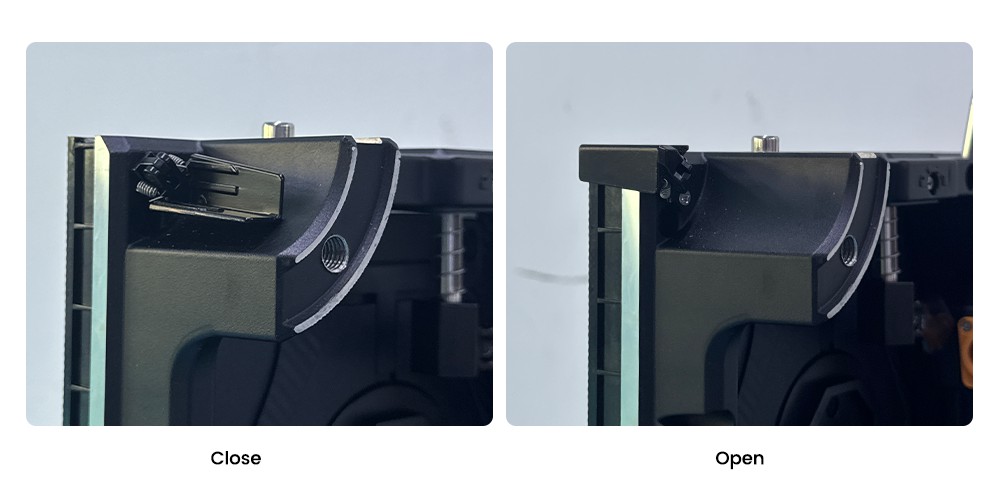

Right angle installation

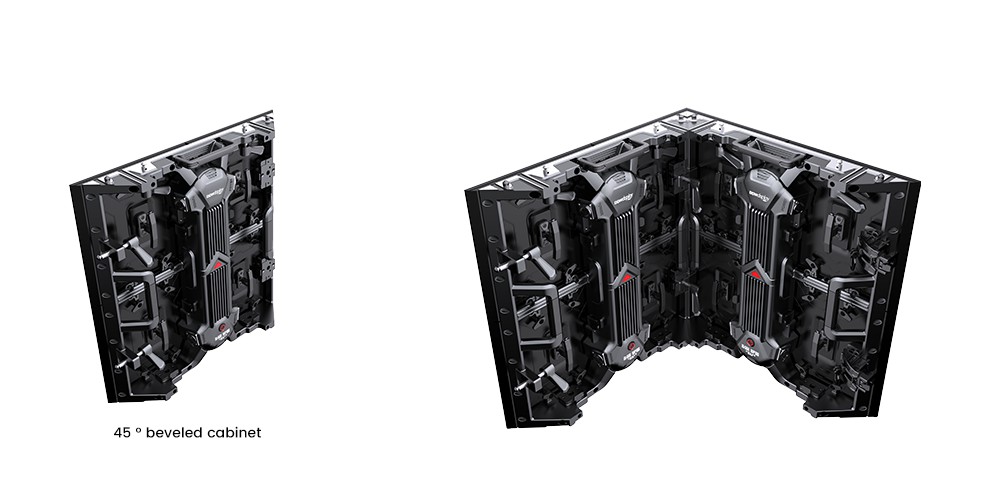

Customizable 45 ° beveled cabinet installation with 90° right angle display
Die cast aluminum cabinet
Die cast aluminum cabinet is lightweight, with a more high-end and stable appearance using advanced technology
-
3840Hz
-
Flexible Size
-
IP65 Waterproof
-
High Flexibility
-
Fast Installation
-
Strong compatibility
-
Right Angle Installation
-
7.5KG
Download Brochure | Model | P1.95 | P2.6 | P2.97 | P3.91 | P4.81 |

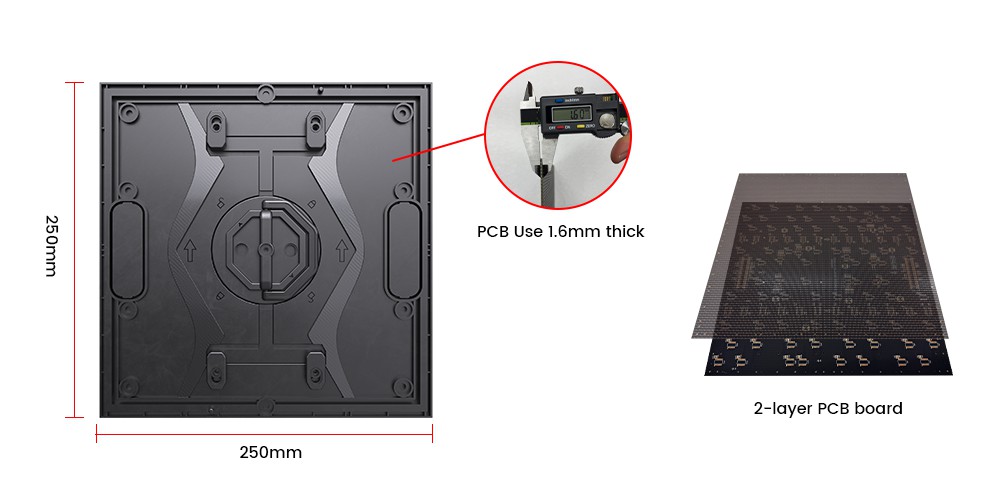

| Module size | 250×250mm | ||||
| Module resolution | 128x128dot | 96×96dot | 64×64dot | 64×64dot | 52×52dot |
| Scanning | 1/32s | 1/32s | 1/28s | 1/16s | 1/13s |
| SMD | SMD1515 | SMD1515 | SMD1515 | SMD2020/1921 | SMD1921 |
| Maintenance | Front/Back | ||||

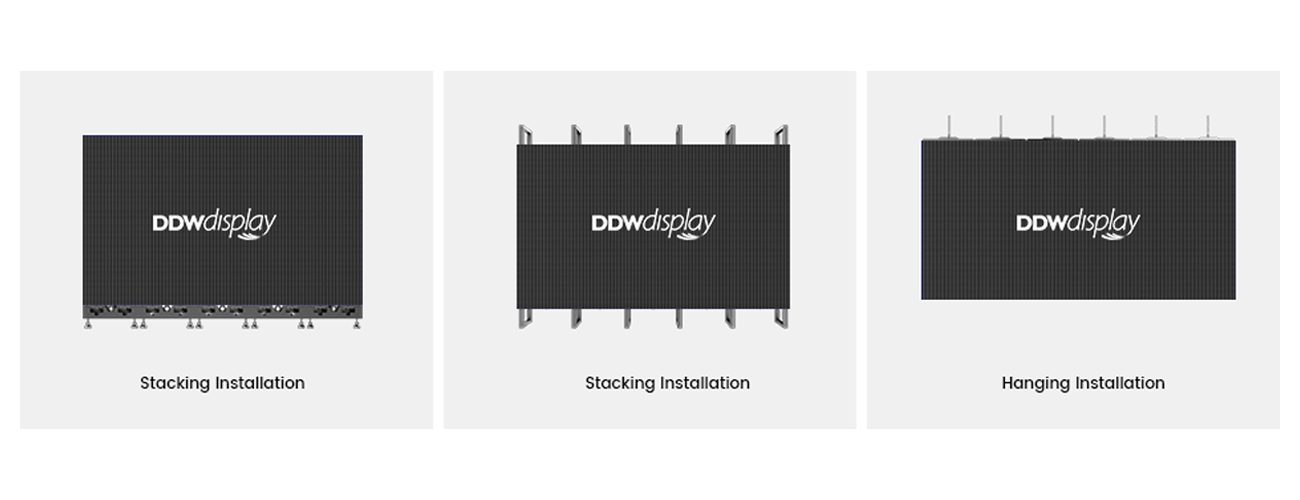

| Installation | Hanging/streching | ||||
| Cabinet size | 500×500mm | ||||
| Density | 262144dot/m² | 147456dot/m² | 112896dot/m² | 65400dot/m² | 44320dot/m² |
| Brightness | ≥800cd/m² | ≥800cd/m² | ≥800cd/m² | 800≥5000cd/m² | 5000cd/m² |
| Max. Power Consumption | 800w | ||||
| Average Power Consumption | 400w | ||||
| Cabinet weight | 7.5kg | ||||
| Cabinet material | Die-casting aluminum | ||||
| IP rate | IP31 | IP31 | IP31 | IP31/IP65 | IP65 |
| Grayscale | 10000:1 | ||||
| Refresh rate | ≥3840Hz | ||||
| Frame change frequency | 50/60hz | ||||
| Vertical viewing angle | ＞140° | ||||
| Input Voltage | AC110V – AC220V | ||||
| Temperature-operating | ﹣10℃～60℃ | ||||
| Life span | ≥100,000H | ||||
