DS series Outdoor LED Digital Signage

DS series is a high-end Outdoor LED Digital Signage carefully designed in quality and detail, pop up aluminum cabinet with tempered glass protection with remote control software

Tag: Outdoor Digital Signage Led Digital Signage Digital Poster
inquiry Download Brochure Outdoor LED Digital Signage.pdf
Advantage
Video
Parameters
Installation
Specifications
Accessories

Features

3840 Hz

Wide Viewing Angles

IP65 Waterproof

Remote Control

Common Cathode Design

Front Maintenance

Die cast aluminum cabinet

7500cd High Brightness

Advantages

DS Series Outdoor LED Digital Signage
Feature Description

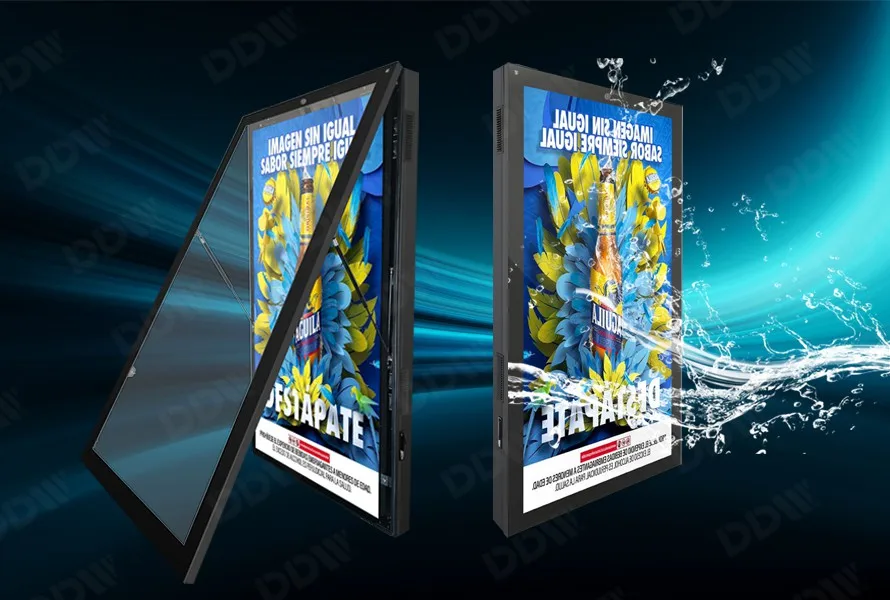

  • - IP65 waterproof rating, long service life
  • - 7500cd/m² High brightness, bright colors
  • - Any size, seamless stitching
  • - With remote control software
  • - Pop up aluminum cabinet with tempered glass protection
  • - There are cooling fans in the cabinet, better heat dissipation effect

Video

DS Series Outdoor LED Digital Signage

Parameters

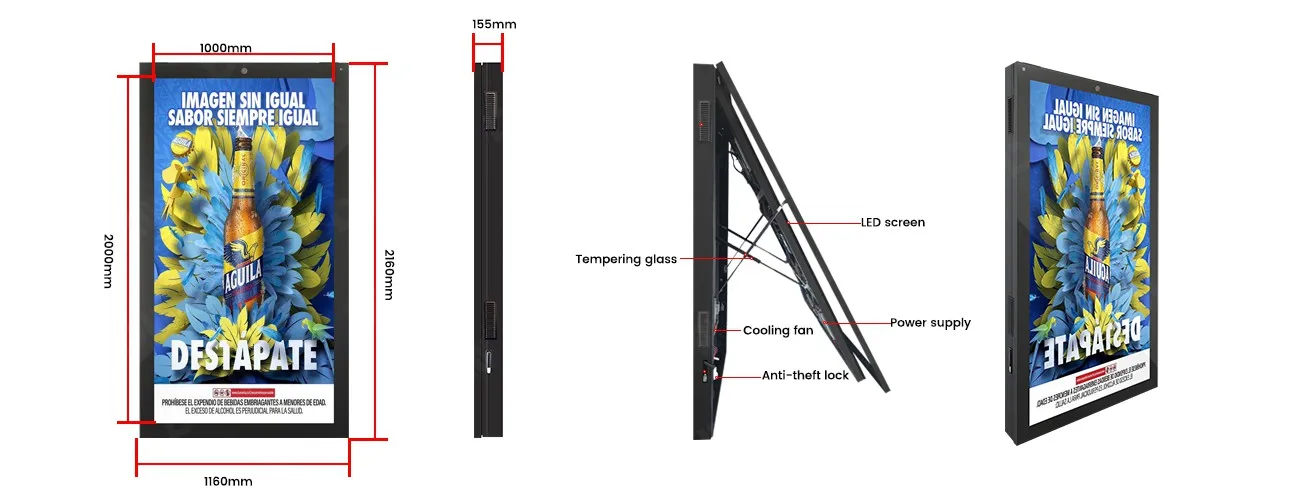

Cabinet Specs

Customizable size and double-sided display according to requirements

DS Series Outdoor LED Digital Signage

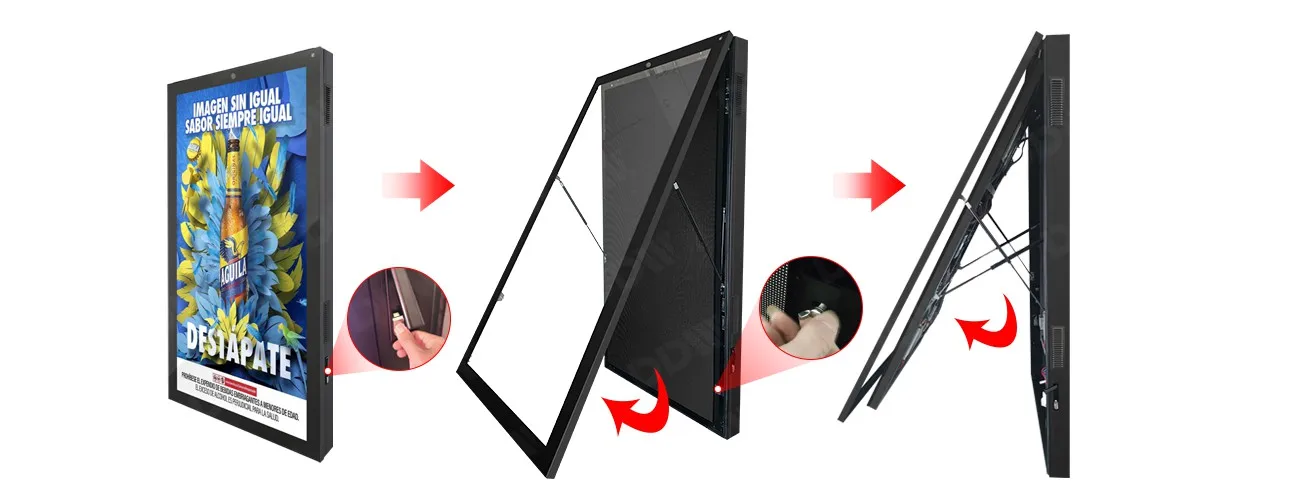

Easy Maintenance

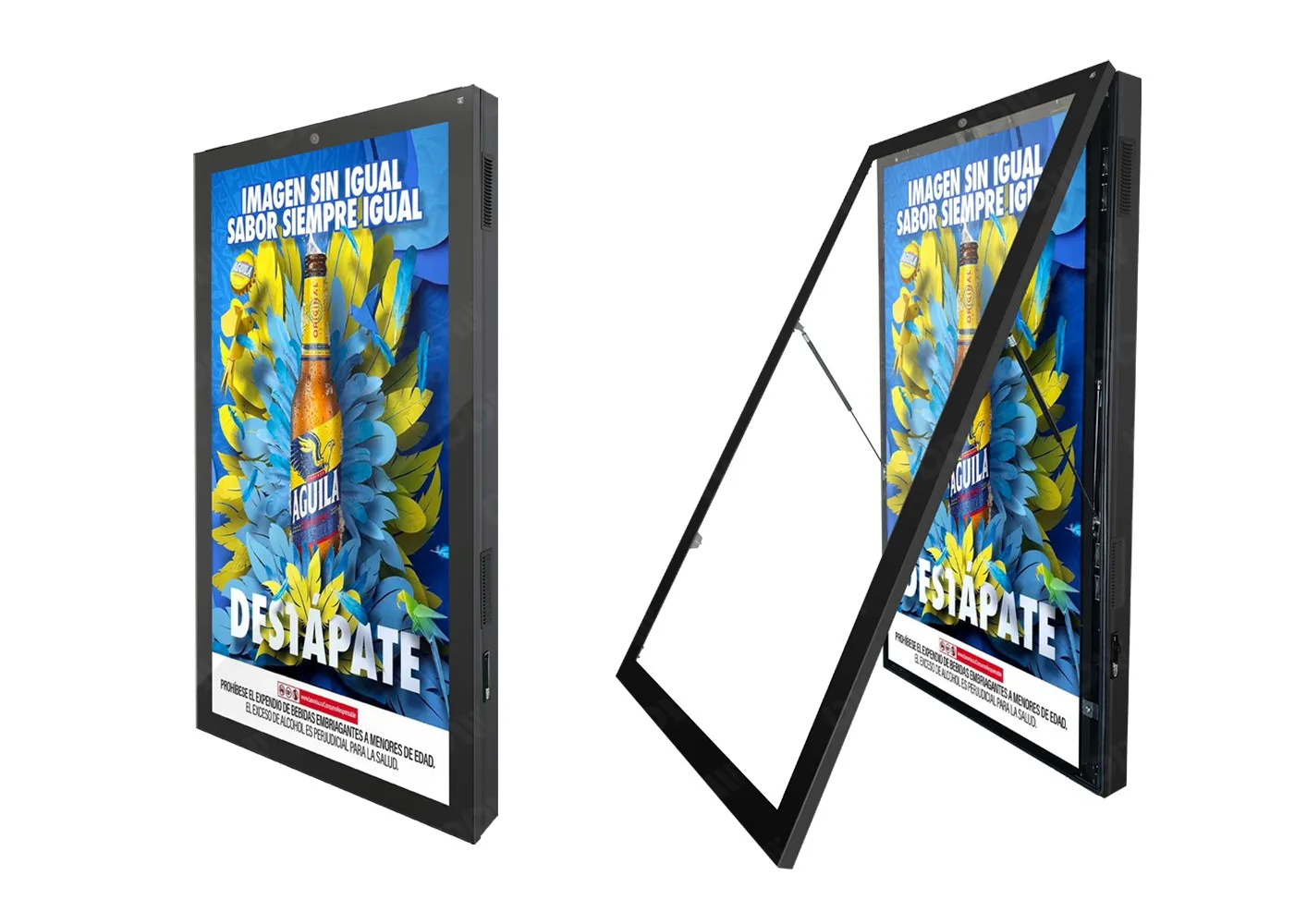

Front maintenance design pop up aluminum cabinet with tempered glass protection

DS Series Outdoor LED Digital Signage

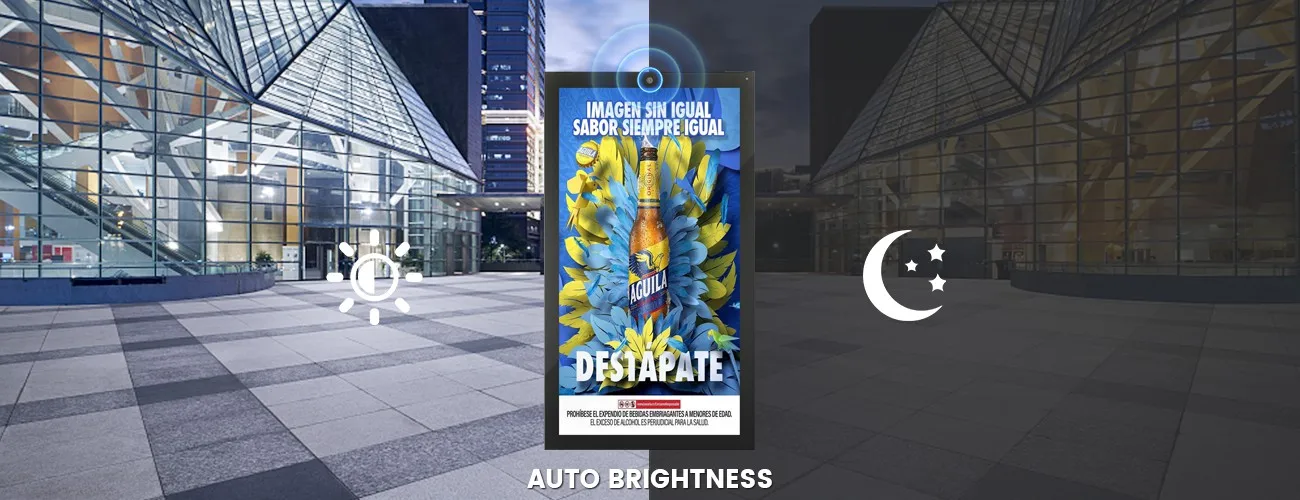

Intelligent optical sensor

Light sensor change the screen’ s brightness depending on the ambient light ensuring the most suitable brightness at any time of the day.

DS Series Outdoor LED Digital Signage

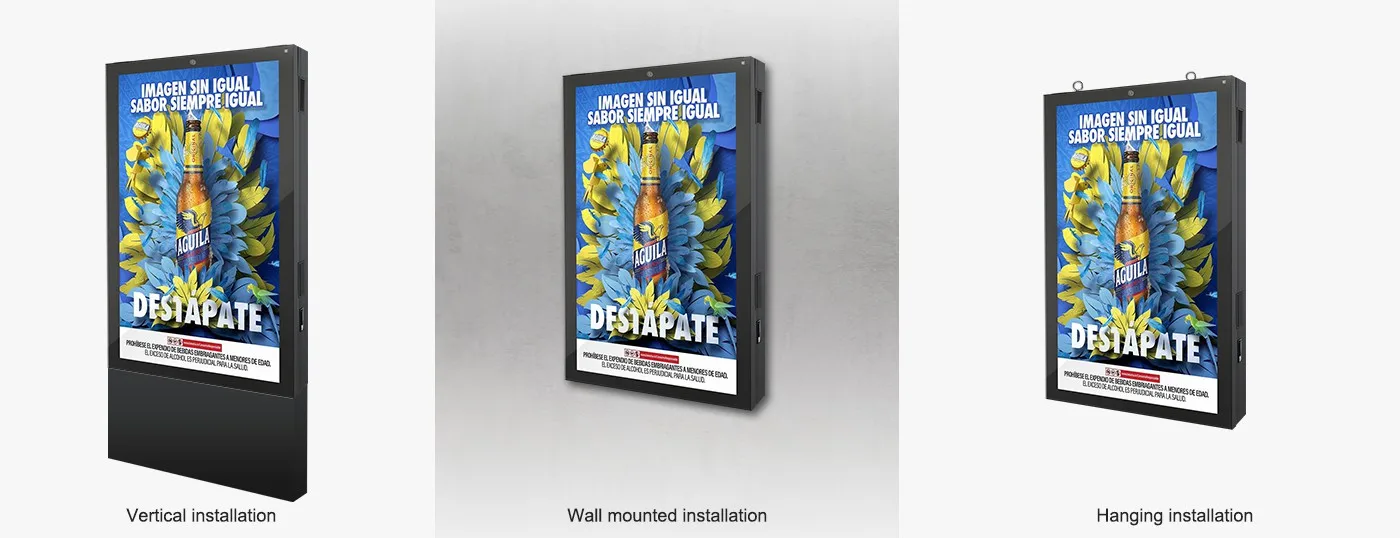

Installation


Support vertical wall hanging and lifting
DS Series Outdoor LED Digital Signage

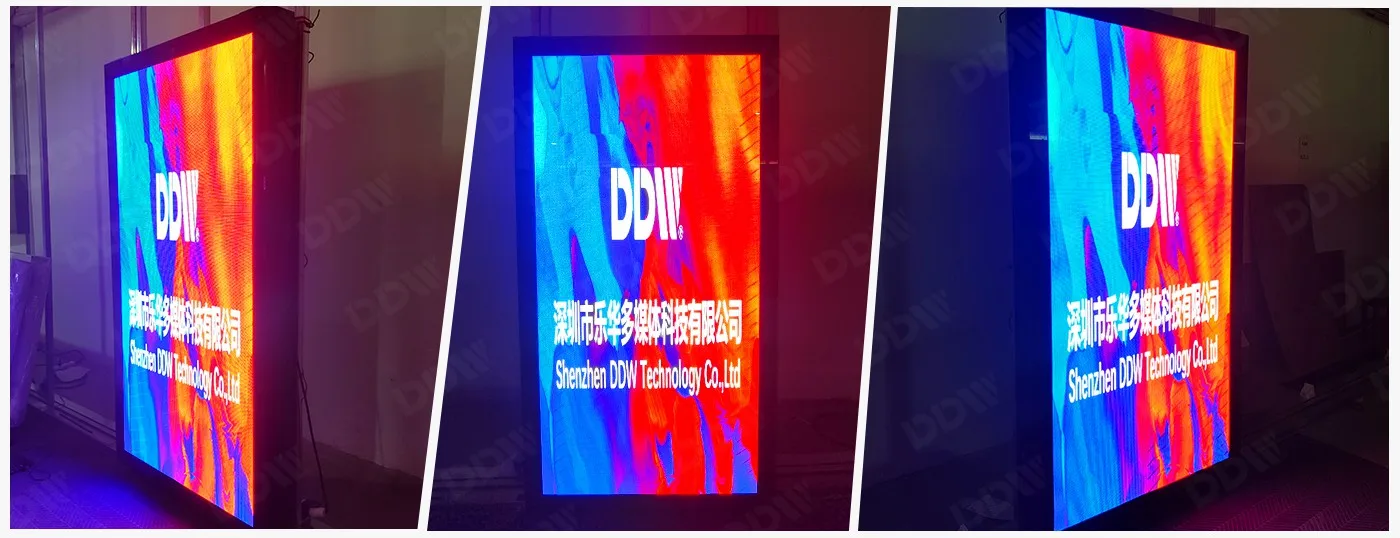

Aging test
DS Series Outdoor LED Digital Signage

Specifications

Model 2.5 2.976 P3 P3.91 P4 P5 P6 P8 P10
Module size(mm) 160×160 250x250 192×192 250x250 320×160 320×160 192×192 320×160 320×160
Module resolution (dot) 64×64 84x84 64×64 64×65 80×40 64×32 32×32 40×20 32×16
Scanning 1/16S 1/21s 1/16S 1/17S 1/20S 1/8S 1/8S 1/5S 1/2S
SMD 1G1R1B 1G1R1B 1G1R1B 1G1R2B 1G1R1B 1G1R1B 1G1R1B 1G1R1B 1G1R1B
Maintenance Front Front Front Front Front Front Front Front Front
Density(dot/㎡) 160000 112896 111111 65410 62500 40000 27777 15625 10000
Brightness(cd/㎡) 4200-4500 3500 4200-4500 4200-4501 5000-6500 5000-6000 5000-6000 4000-5000 6000-7500
Max. Power Consumption 1000 1000 1000 1001 900 800 800 800 1000
Average Power Consumption 350 350 350 351 300 400 300 300 500
Cabinet material Aluminum profile Aluminum profile Aluminum profile Aluminum profile Aluminum profile Aluminum profile Aluminum profile Aluminum profile Aluminum profile
IP rate IP 65 IP 65 IP 65 IP 66 IP 65 IP 65 IP 65 IP 65 IP 65
Grayscale 10000:1 10000:1 10000:1 10000:2 10000:1 10000:1 10000:1 10000:1 10000:1
Refresh rate(hz) 1920-3840 1920-3840 1920-3840 1920-3841 1920-3840 1920-3840 1920-3840 1920-3840 1920-3840
Frame change frequency 50/60hz 50/60hz 50/60hz 50/61hz 50/60hz 50/60hz 50/60hz 50/60hz 50/60hz
Horizontal viewing angle >140° >140° >140° >141° >140° >140° >140° >140° >140°
Vertical viewing angle >140° >140° >140° >141° >140° >140° >140° >140° >140°
Best viewing distance >2.5m >3m >3m >4m >4m >5m >6m >8m >10m
Input Voltage AC110V – AC220V AC110V – AC220V AC110V – AC220V AC110V – AC221V AC110V – AC220V AC110V – AC220V AC110V – AC220V AC110V – AC220V AC110V – AC220V
Module Max. current 4.5-5.5 4.5-5.5 4.5-5.5 4.5-5.6 5.5-7.5 5.5-7.5 3.5-5.5 5.5-7.0 8.0-10
Temperature-operating ﹣10℃～60℃ ﹣10℃～60℃ ﹣10℃～60℃ ﹣10℃～61℃ ﹣10℃～60℃ ﹣10℃～60℃ ﹣10℃～60℃ ﹣10℃～60℃ ﹣10℃～60℃
Humidity-operating 10%～90% 10%～90% 10%～90% 10%～91% 10%～90% 10%～90% 10%～90% 10%～90% 10%～90%
Life span (H) ≥100,000 ≥100,000 ≥100,000 ≥100,001 ≥100,000 ≥100,000 ≥100,000 ≥100,000 ≥100,000
MTBF (H) >10,000 >10,000 >10,000 >10,001 >10,000 >10,000 >10,000 >10,000 >10,000

Accessories

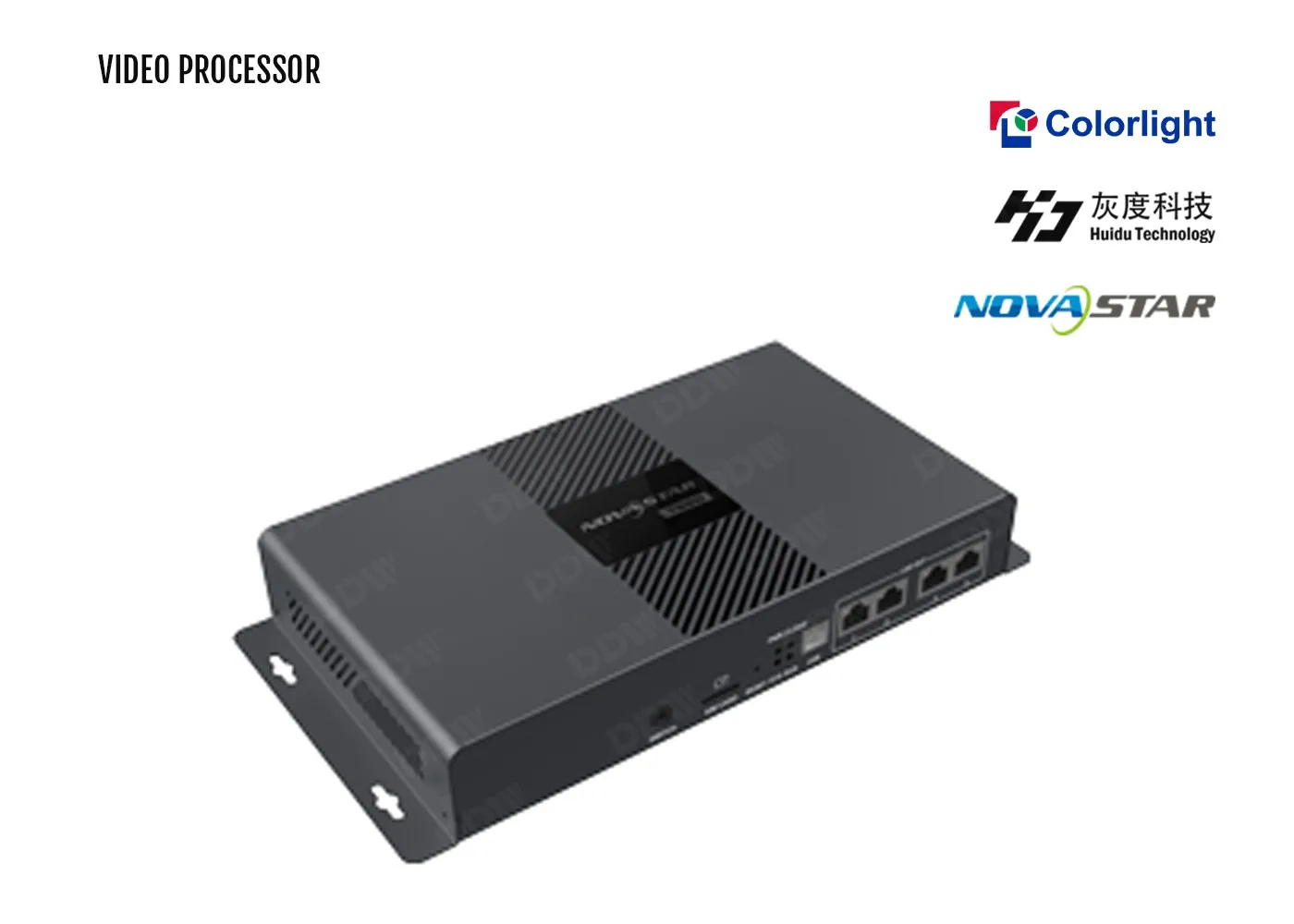

Sending box
Sending box
Power Supply
Power Supply
Pickup card
Pickup card
Outdoor Movable power cabinet
Connecting piece
Signal cable
Signal line
Power cable
Power line
Movable power cabinet
Cooling fan
Wooden case packing
LED module
