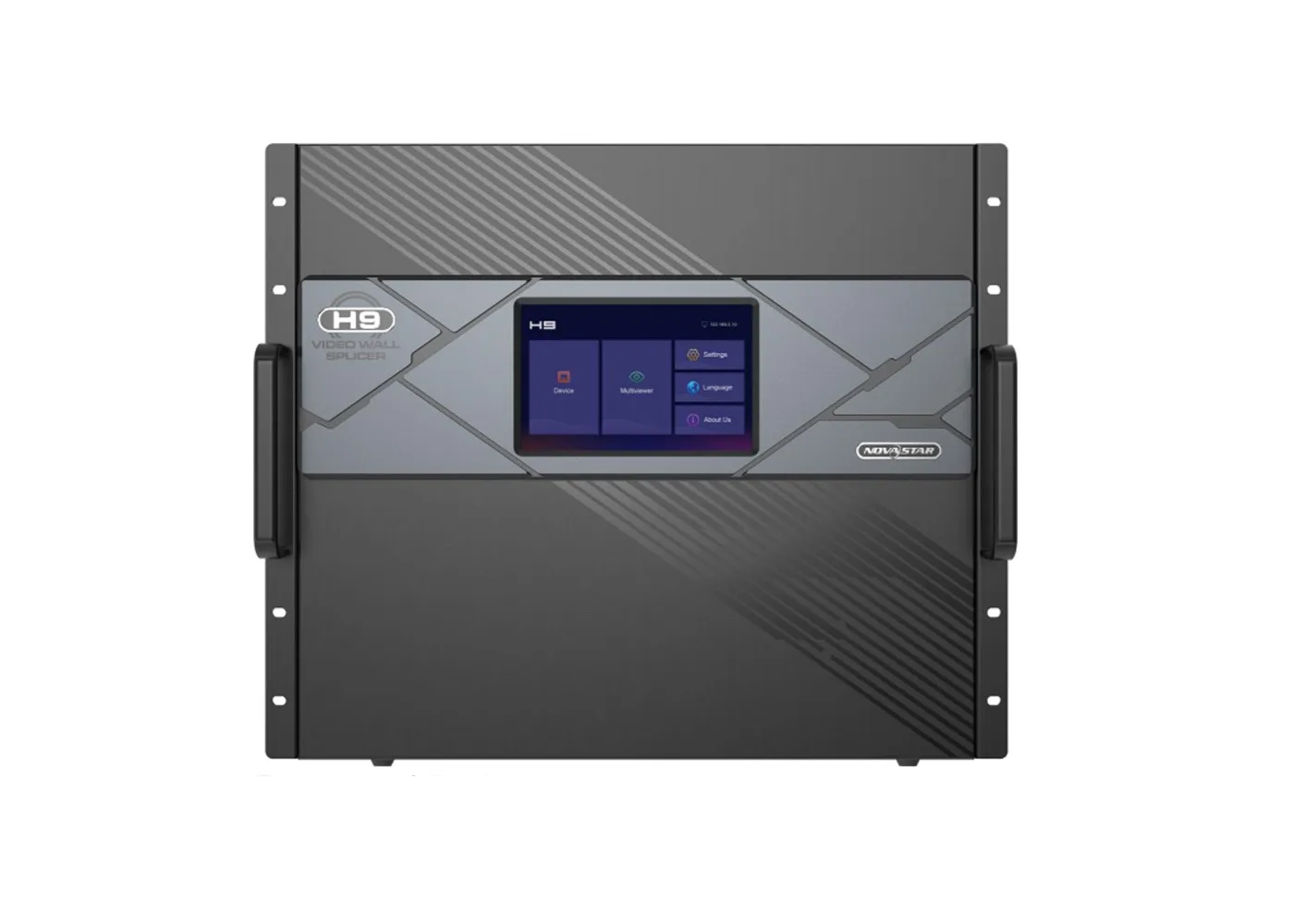

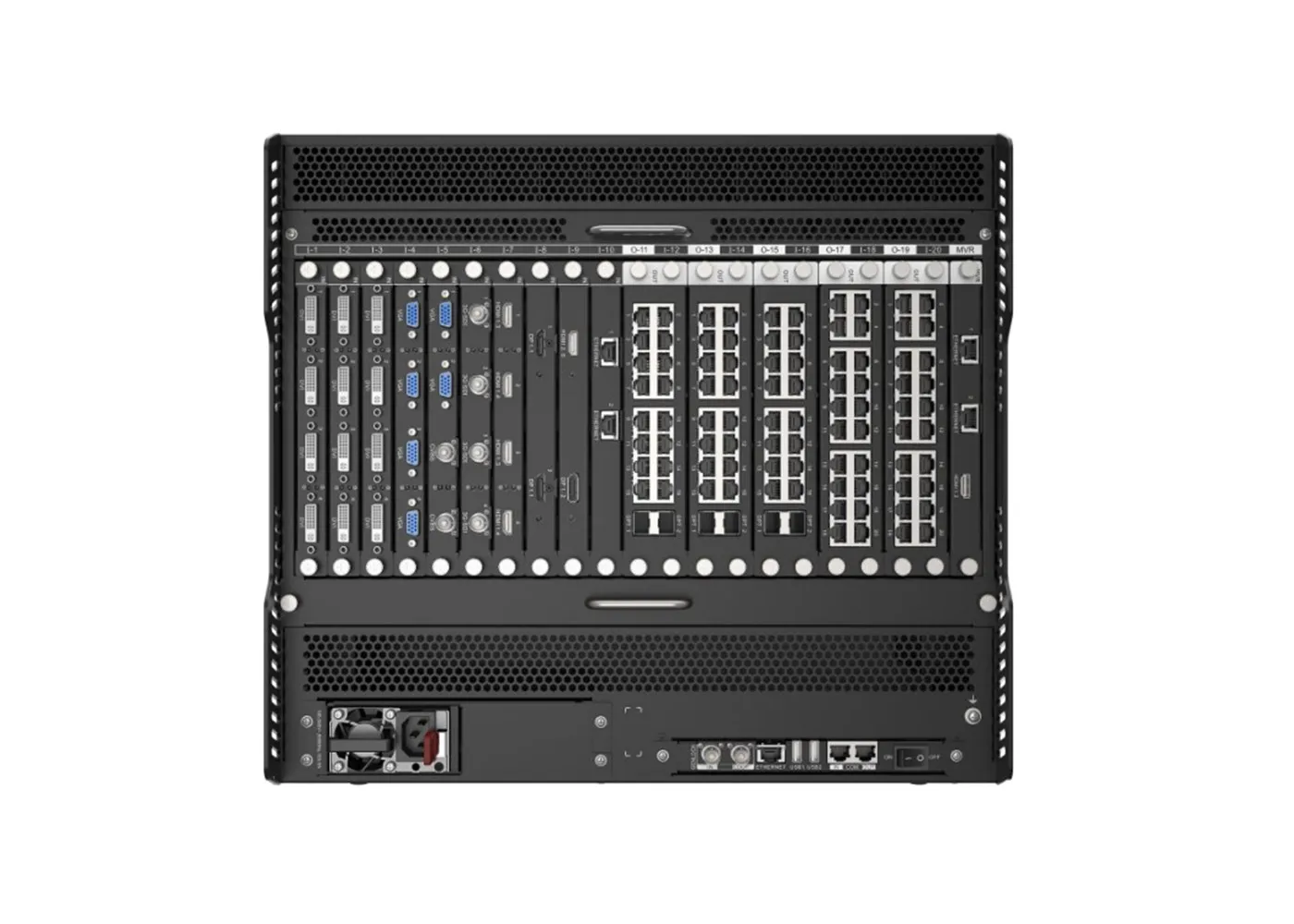

H9 Series Video Processor for Large Scale Video Wall Applications

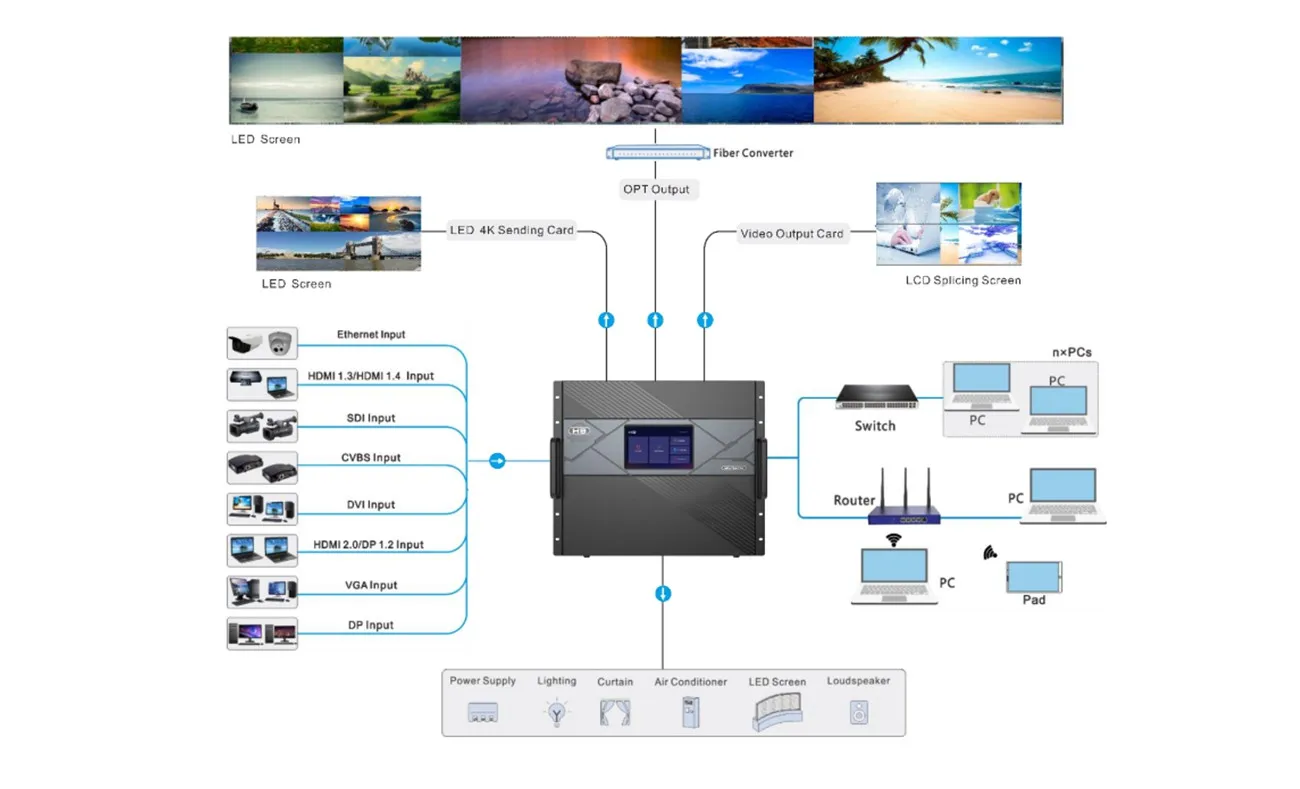

While utilizing module mainframe connectivity, the H series highly integrates splice processing and display control to achieve true All-in-One, which simplifies system interconnection structure for customers. It will also reduce equipment failure rates, and improve equipment operation and maintenance to a whole new level.
H Series achieves true 4K (4K x 2K@60Hz, RGB 4:4:4, 10bit) signal collection, processing, and output. It can be configured with DP1.2, HDMI2.0, or other high-definition 4K daughterboards to realize ultra-high-resolution display.
H series supports numerous layers with an unrestricted arrangement. Each output daughterboard provides 16 layers (Up to 16 layers maximum per port). The layers can freely cross different output loading areas while keeping layer size the same. Layers can be in any position, overlapped, or unlimited scaled. It supports functions such as image capture, layer configuration, layer flip, and more. This all helps you realize your creativity and create a captivating visual effect.
| Model | H9 | ||
| Chassis | H9 | H9 Enhanced | |
| Rack Unit | 9U | ||
| Max. Input Cards | 15 | ||
| Max. Input Channels | 60 | ||
|
Max. Output Cards (Video output card) |
5 | 10 | |
| Max. Output Channels | 20 | 40 | |
|
Max. Output Cards (LED 4K sending card) |
5 | 5 | |
|
Max. Loading Capacity |
H_16xRJ45+2xfiber sending card |
52 million pixels | |
|
H_20xRJ45 sending card |
65 million pixels | ||
| H_4xfiber sending card | 104 million pixels | 208 million pixels | |
| Max. Layers (Video output card) | 80 | 160 | |
| Max. Layers (LED 4K sending card) | 80 | 80 | |
|
Electrical Specifications |
Power connector |
100–240V~, 50/60Hz, 10A–5A Note: The H9 comes with a single power supply. A redundant power supply is optional. |
|
| Power consumption | 450 W | ||
|
Operating Environment |
Temperature | 0°C to 45°C | |
| Humidity | 0% RH to 80% RH, non-condensing | ||
|
Storage Environment |
Temperature | –10°C to +60°C | |
| Humidity | 0% RH to 95% RH, non-condensing | ||
|
Physical Specifications |
Dimensions | 482.6 mm × 533.0 mm × 405.8 mm | |
| Net weight | 27.2 kg (chassis) | ||
| Gross weight | 35.3 kg (chassis) | ||
| Noise Level ( typical at 25°C /77°F) | ＜45 dB (A) | ||
|
Packing Information |
Packing box | 780 mm × 680 mm × 590 mm | |
| Accessories |
1x Power cord 1x RJ45 Ethernet cable 1x Grounding cable 1x HDMI cable 1x Quick Start Guide 1x Certificate of Approval 1x Safety Manual 1x Custom Letter |
||
