FI Plus series Aluminum Indoor LED Display

P1.8 P2.5 P3 P4 960x960/960x640/960x480/640x640/640x480 indoor aluminum profile cabinet

Tag: LED Video Wall Indoor Led Display LED Display Screen
inquiry Download Brochure FI PLUS indoor LED display.pdf
Advantages
Video
Parameters
Installation
Specifications
Accessories

Features

Upto 3840Hz

Upto 3840Hz

Wide Viewing Angles

Wide Viewing Angles

Right Angle Splicing

Right Angle Splicing

Ultra thin thickness

Ultra thin thickness

Magnetic Suction Installation

Magnetic Suction Installation

Front Maintenance

Front Maintenance

Die Cast Aluminum

 Aluminum

6.5kg/pc

20kg/pc

Advantages

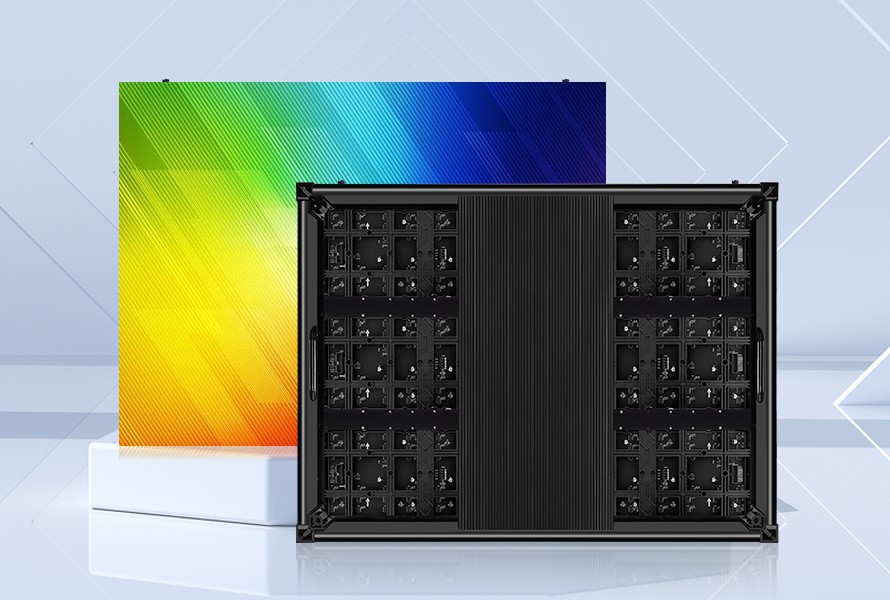

FI plus SERIES indoor LED display
Feature Description
  • - Totally magnetic design
  • - Multiple mounting options,including wall mounting,ground stacking,truss rigging
  • - 3840Hz refresh rate,real and natural high dynamic picture display ,no smear
  • - The most advanced technology
  • - Seamless splicing,high flatness.Supports creative stitching
  • - Die-cast aluminum design, seamless border less, infinite splicing

Video

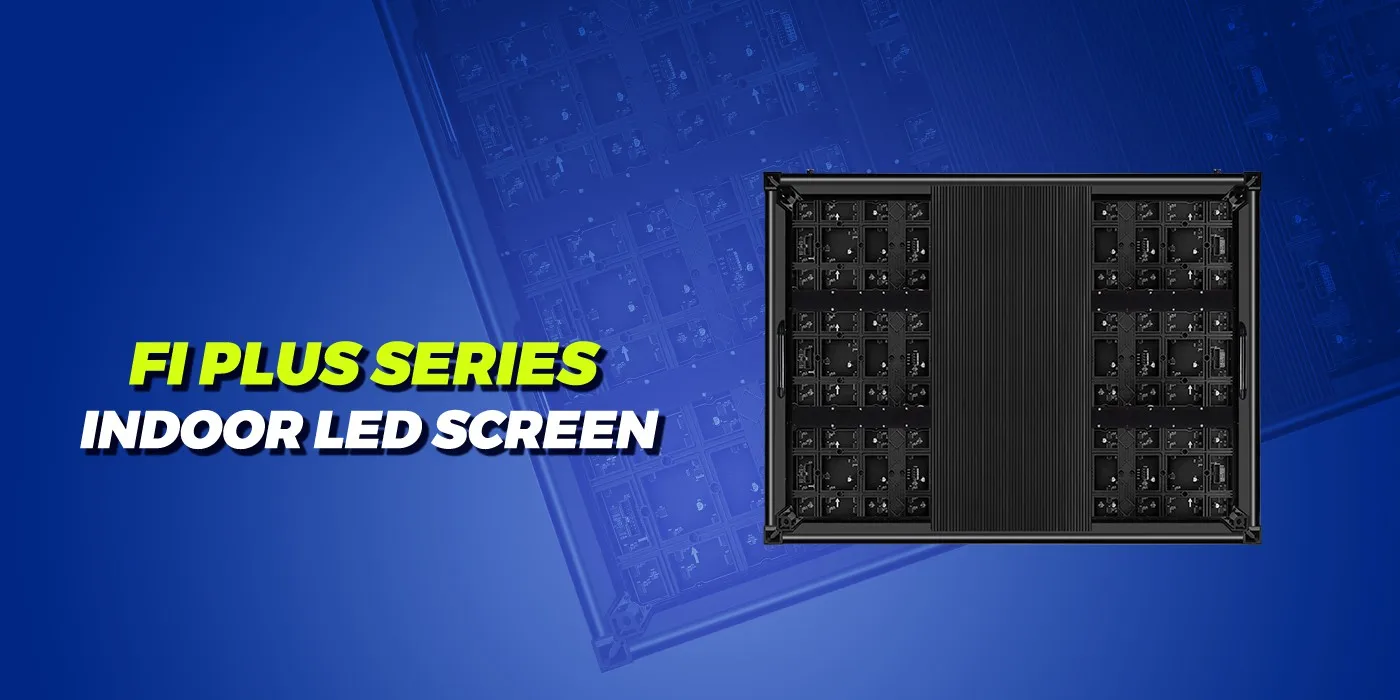

FI PLUS SERIES Indoor LED screen

Parameters

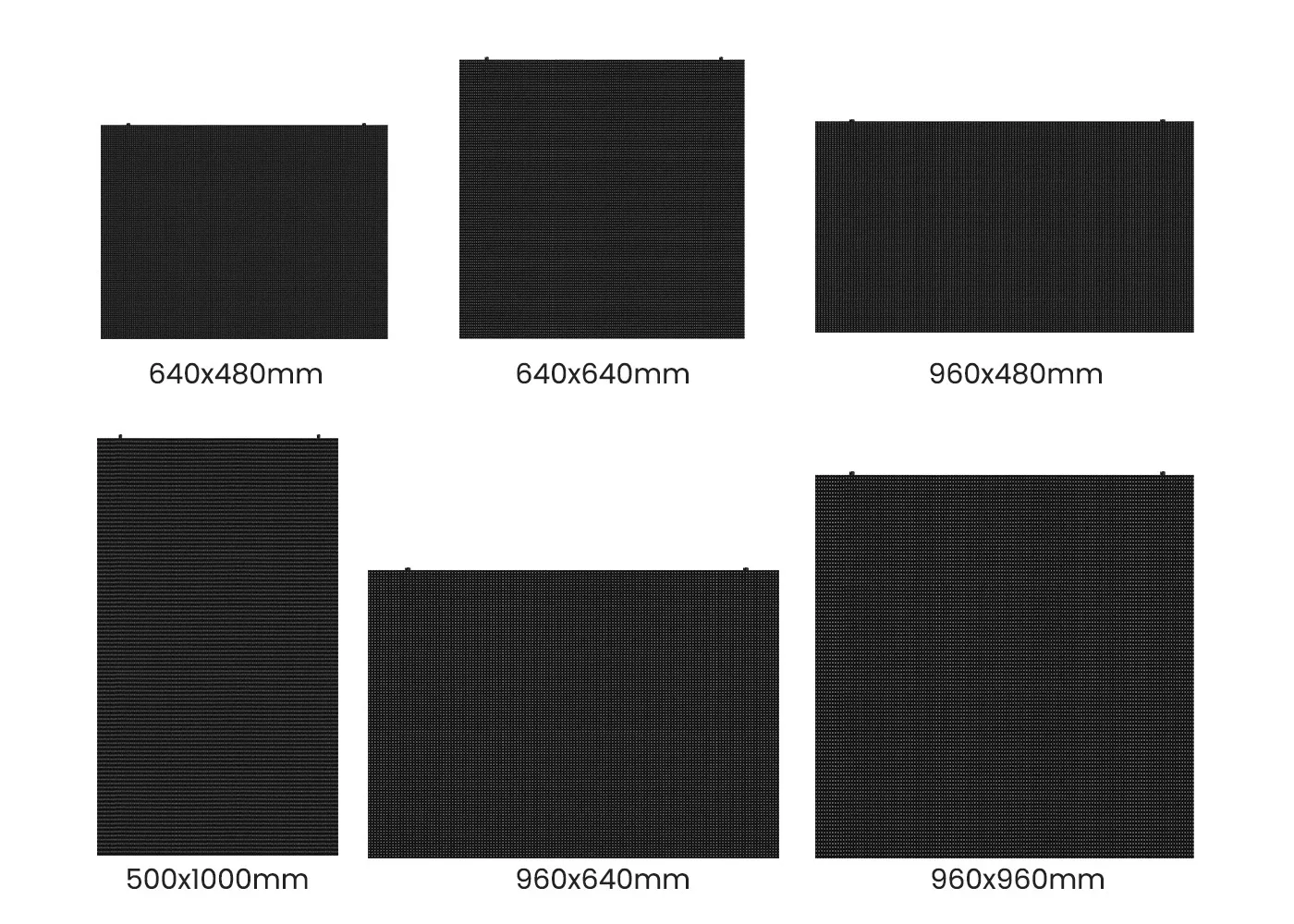

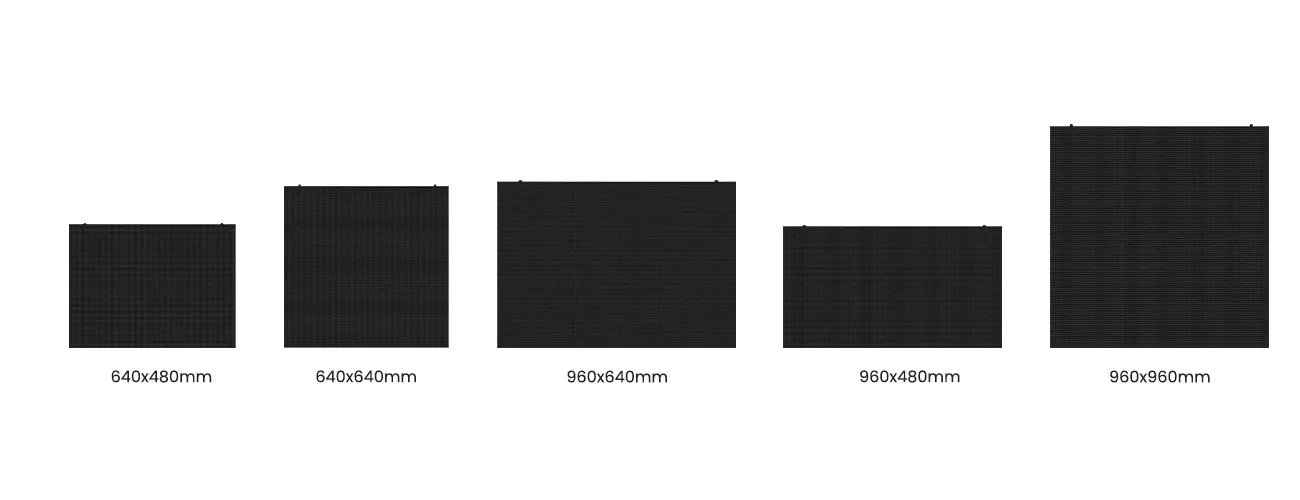

Various panel size

960x960/960x640/960x480/640x640/640x480mm

FI PLUS SERIES indoor LED screen

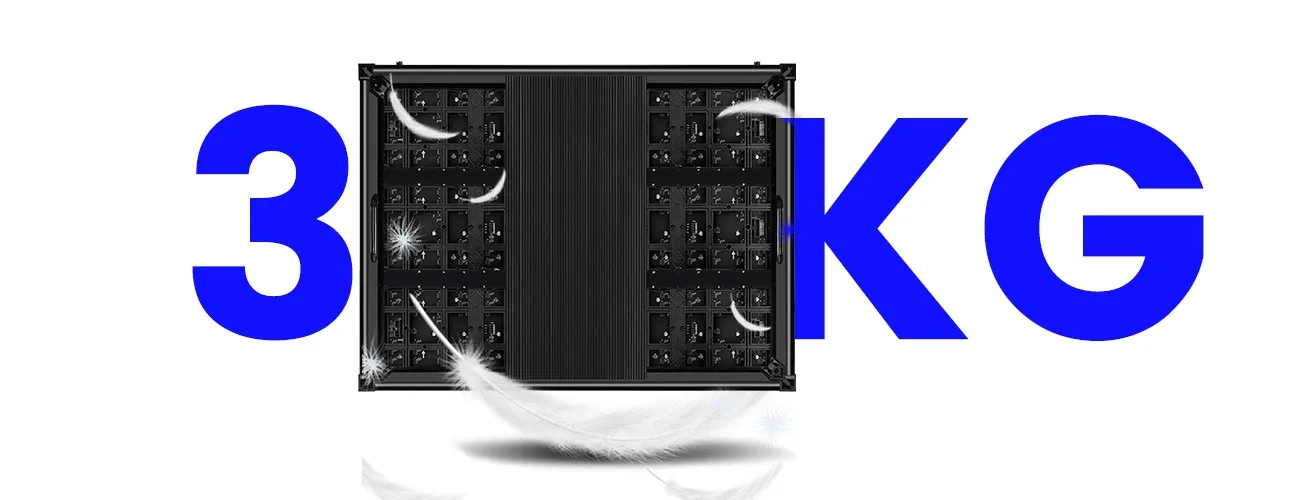

Light Weight

960*960:7KG/960*640:4.7KG/960*480:3.9KG/640*640:3.7KG/640*480:3KG



FI PLUS SERIES indoor LED screen

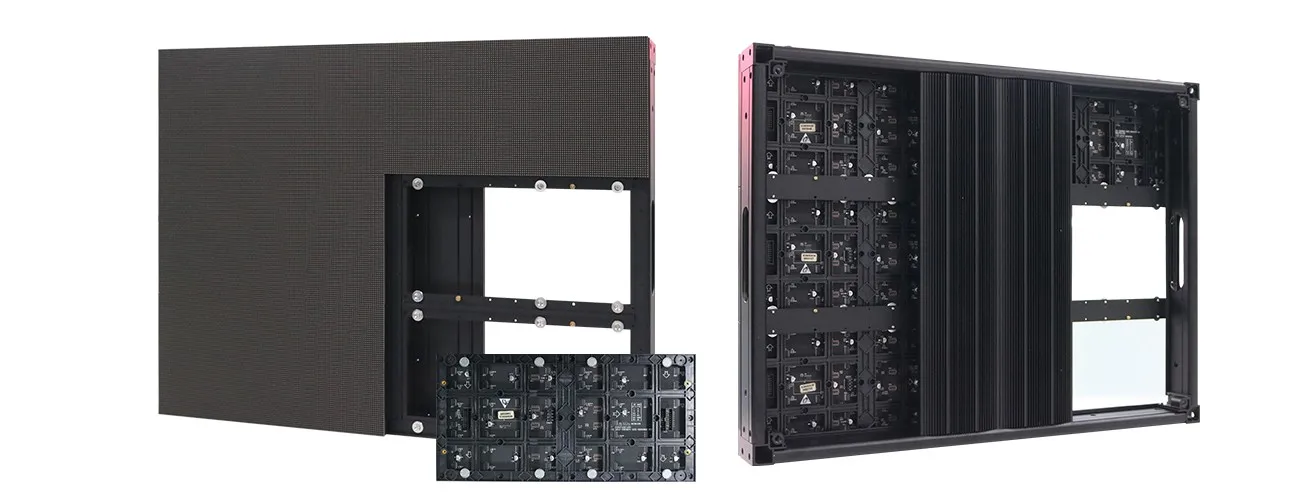

Front maintenance

With the front service tool user can easily maintain the panels.

FI PLUS SERIES indoor LED screen

Installation

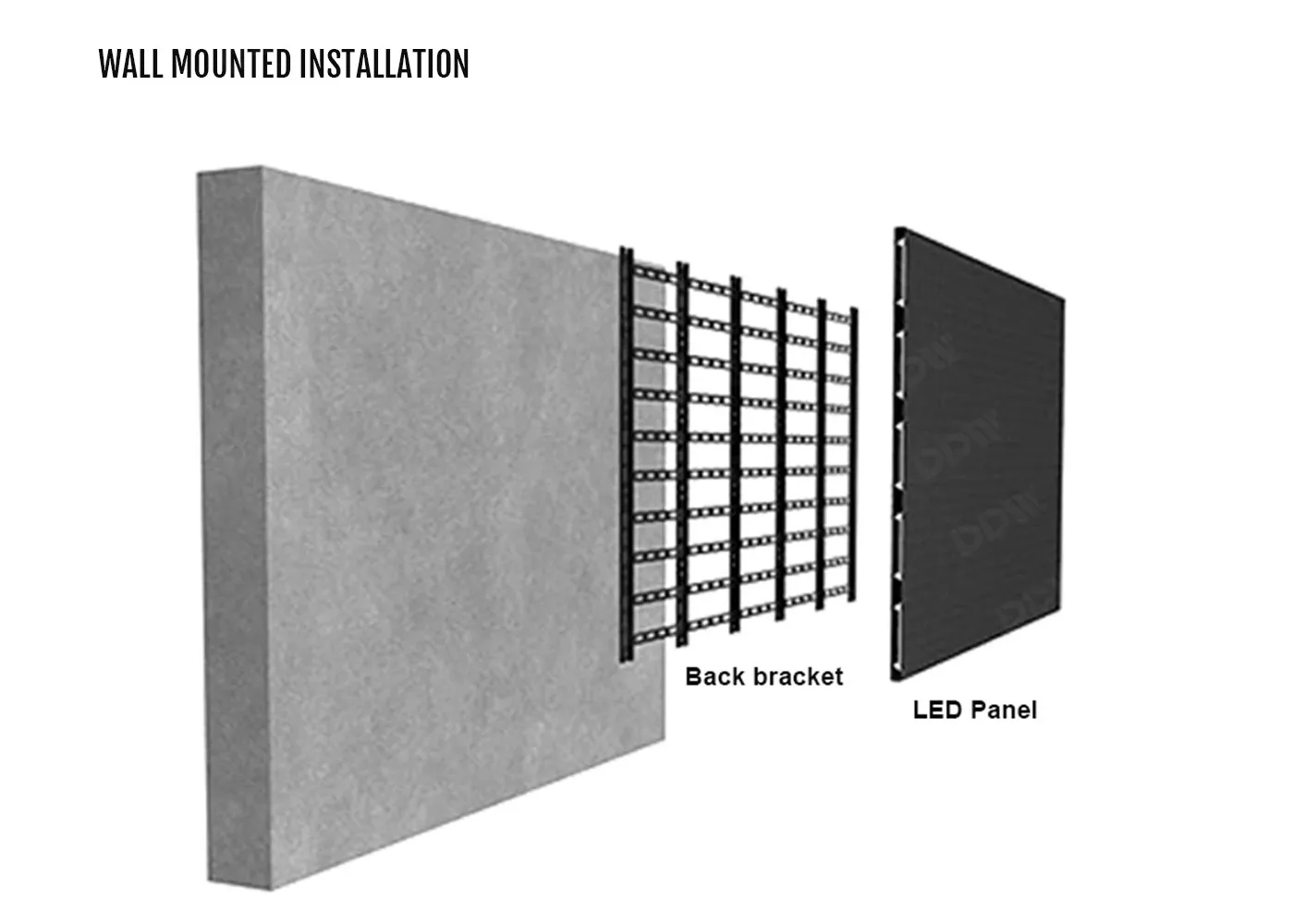

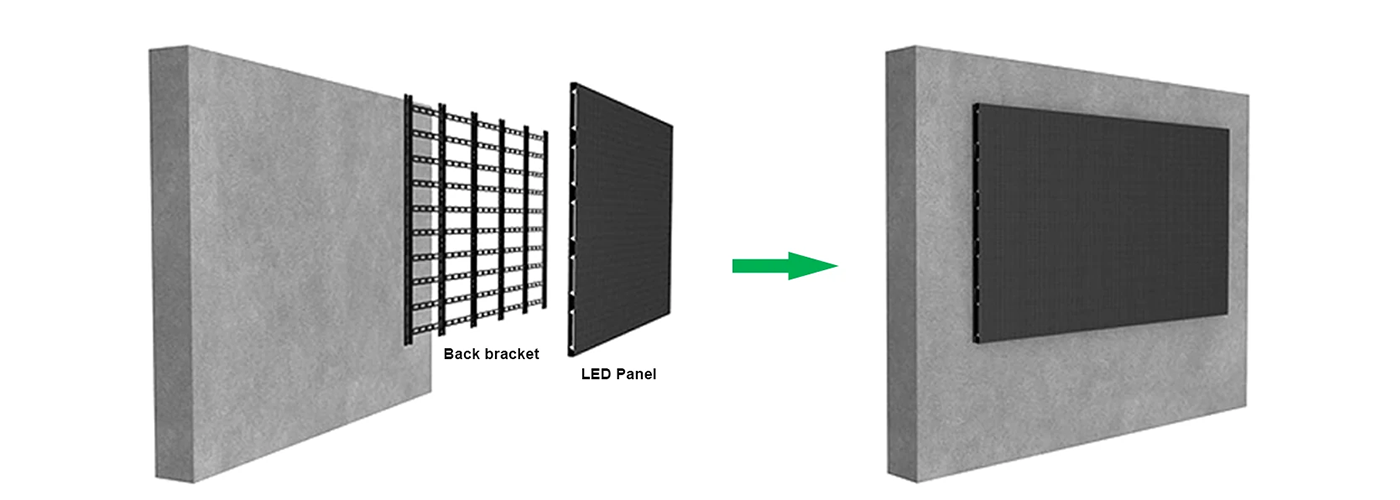

Wall-mounted installation
FI PLUS SERIES INDOOR LED screen

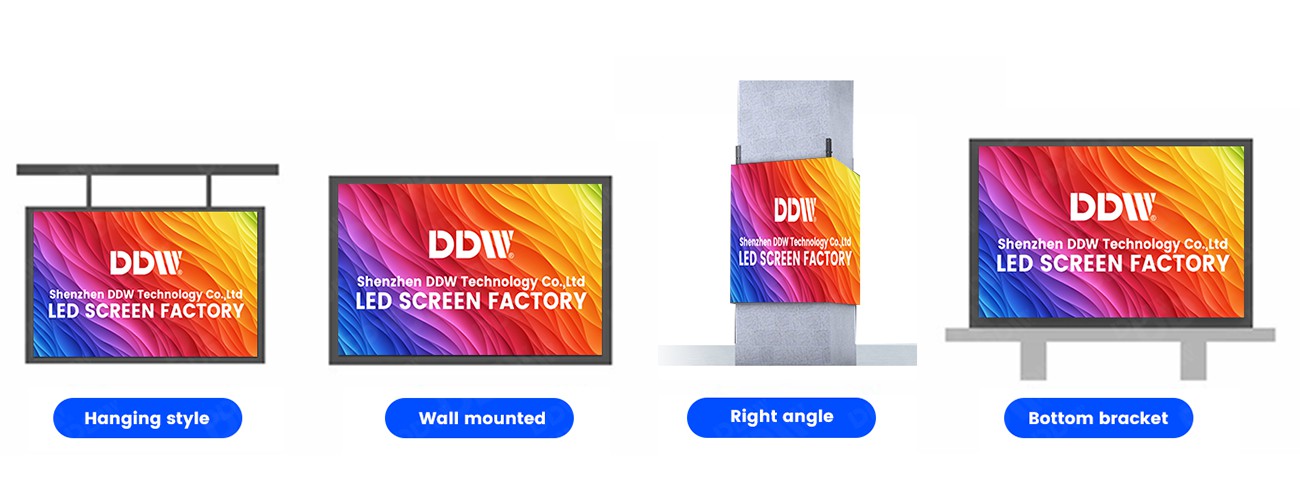

Various installation mode
FI Plus series Aluminum Indoor LED Display

Specifications

Item Number P1.8 P2.5 P3 P4
Pixel Pitch 1.86mm 2.5mm 3.076mm 4mm
Pixel Density 288369pixels/㎡ 16000pixels/㎡ 105625pixels/㎡ 62500pixels/㎡
LED Arrangement SMD1515 SMD2121 SMD2121 SMD2121
Module Resolution 172*84pixels 128*64pixels 104*52pixels 80*40pixels
Panel Resolution 344*344pixels(640*640) 256*256pixels(640*640) 208*208pixels(640*640) 240*240pixels(960*960)
Drive type 43 32 64 20
Module Dimension 320*160mm
Panel Dimension 960*960/960*640/960*480
Panel Weight 20kg
Brightness Level 800-1,000nits
Max Power Consumption 500W/㎡
Ave Power Consumption 200W/㎡
Visual View Angle 160°/160°
Operating Power Source 220V/ AC 50-60Hz
Operating Temperature  -20~ +45
Refresh Rate 1920-3840Hz(Configurable)
Protecting Rating IP20
Signal Input Source S-video,VGA,DVI,HDMI,SDI

Accessories

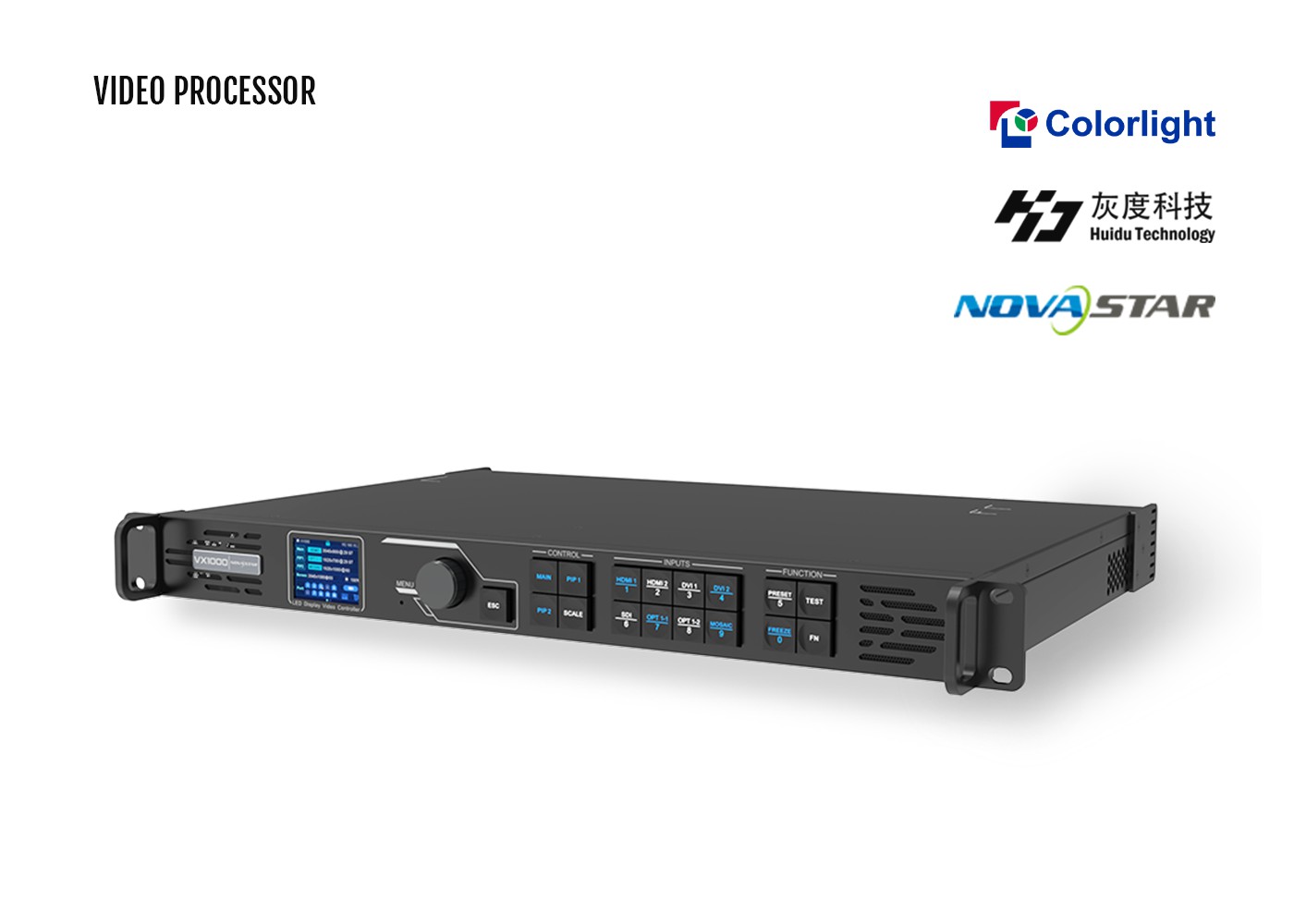

Video Processor
Video Processor
Power Supply
Power Supply
LED suction cup
LED suction cup
Mounting accessories
Receiving card
Signal cable
Signal cable
Power cable
Power cable
Movable power cabinet
Power cabinet
Flight case
Wooden case packing
