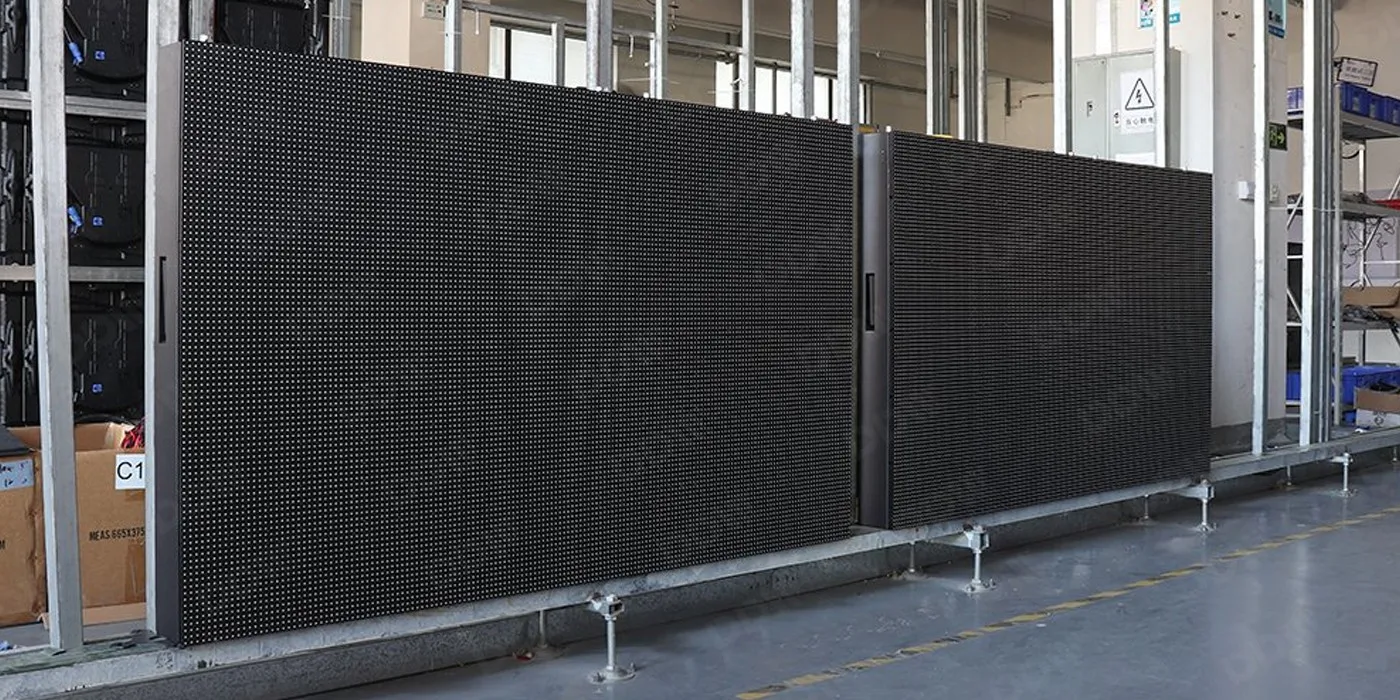

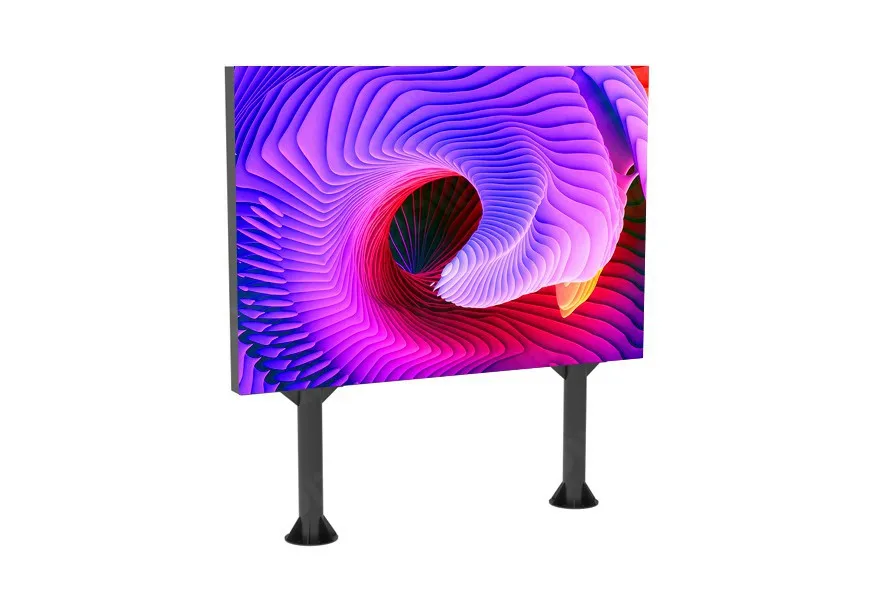

FB series is a high-end outdoor LED display carefully designed in quality and detail, which is used for outdoor fixed installation. It is the most common and widely used outdoor display screen.
3840 Hz
Wide Viewing Angles
IP65 Waterproof
High Strength Structure
Common Cathode Design
Front Rear Maintenance

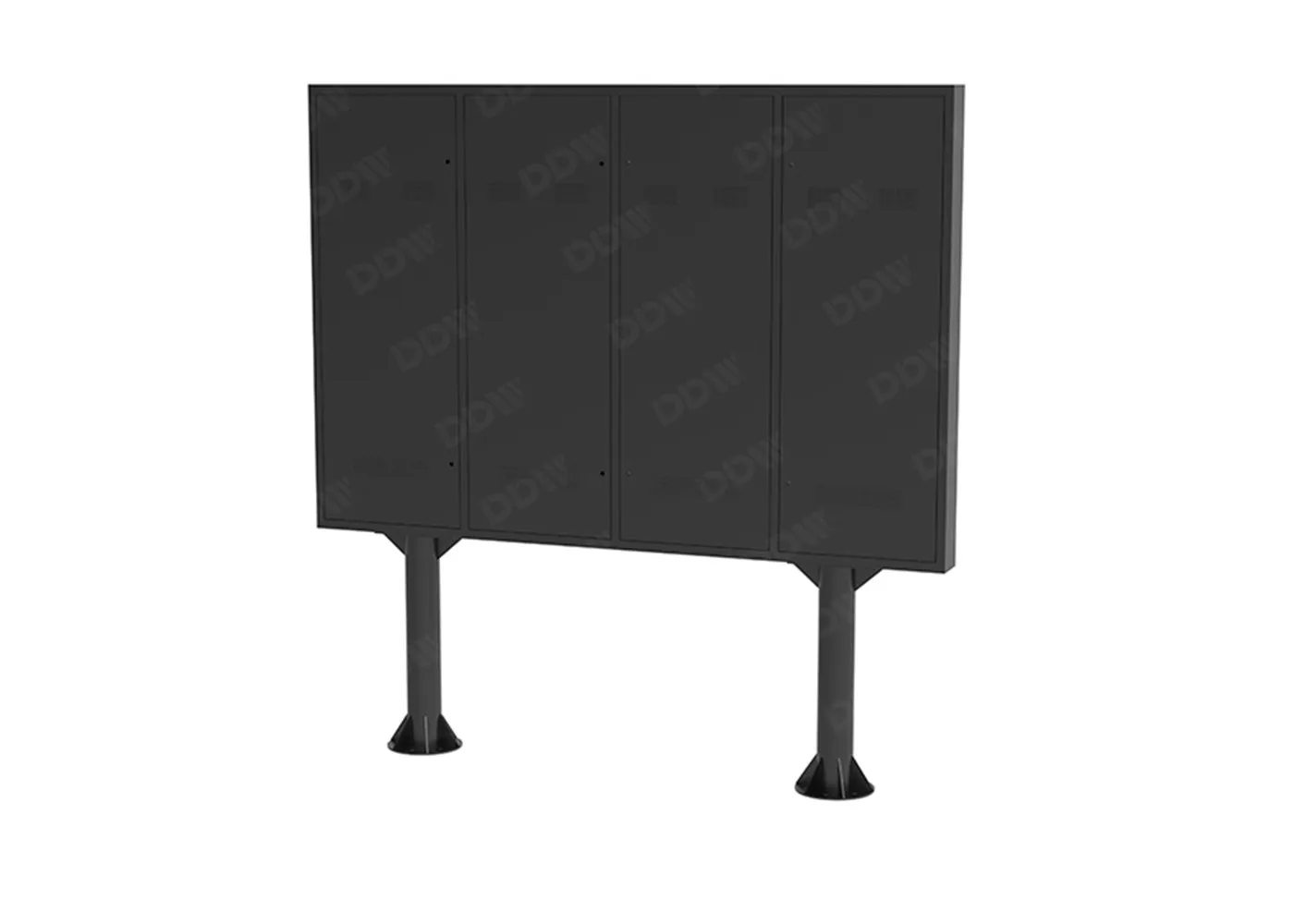

Iron cabinet
7500cd High brightness
Suitable for all kinds modules ,Upgrade replacement is easy

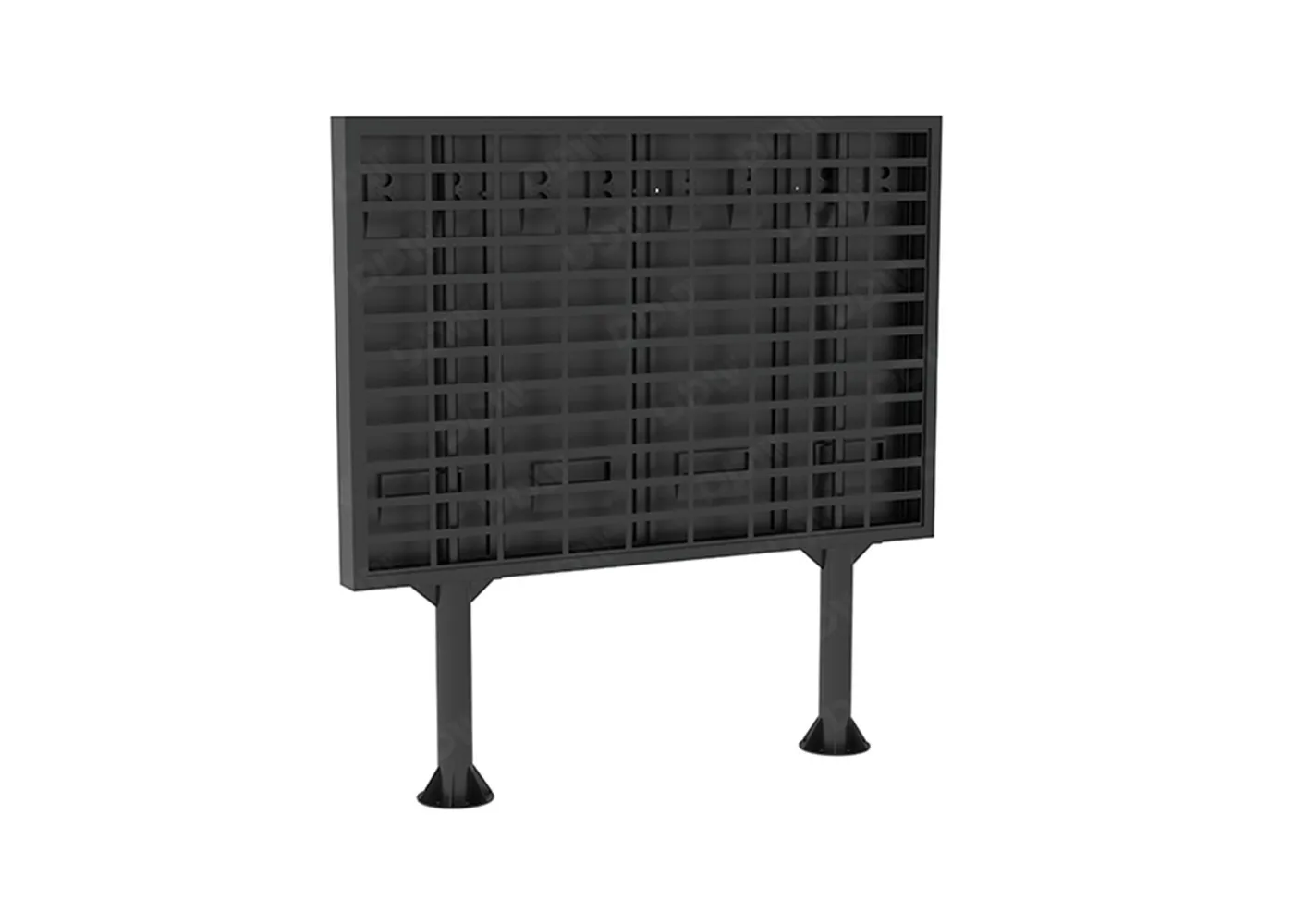

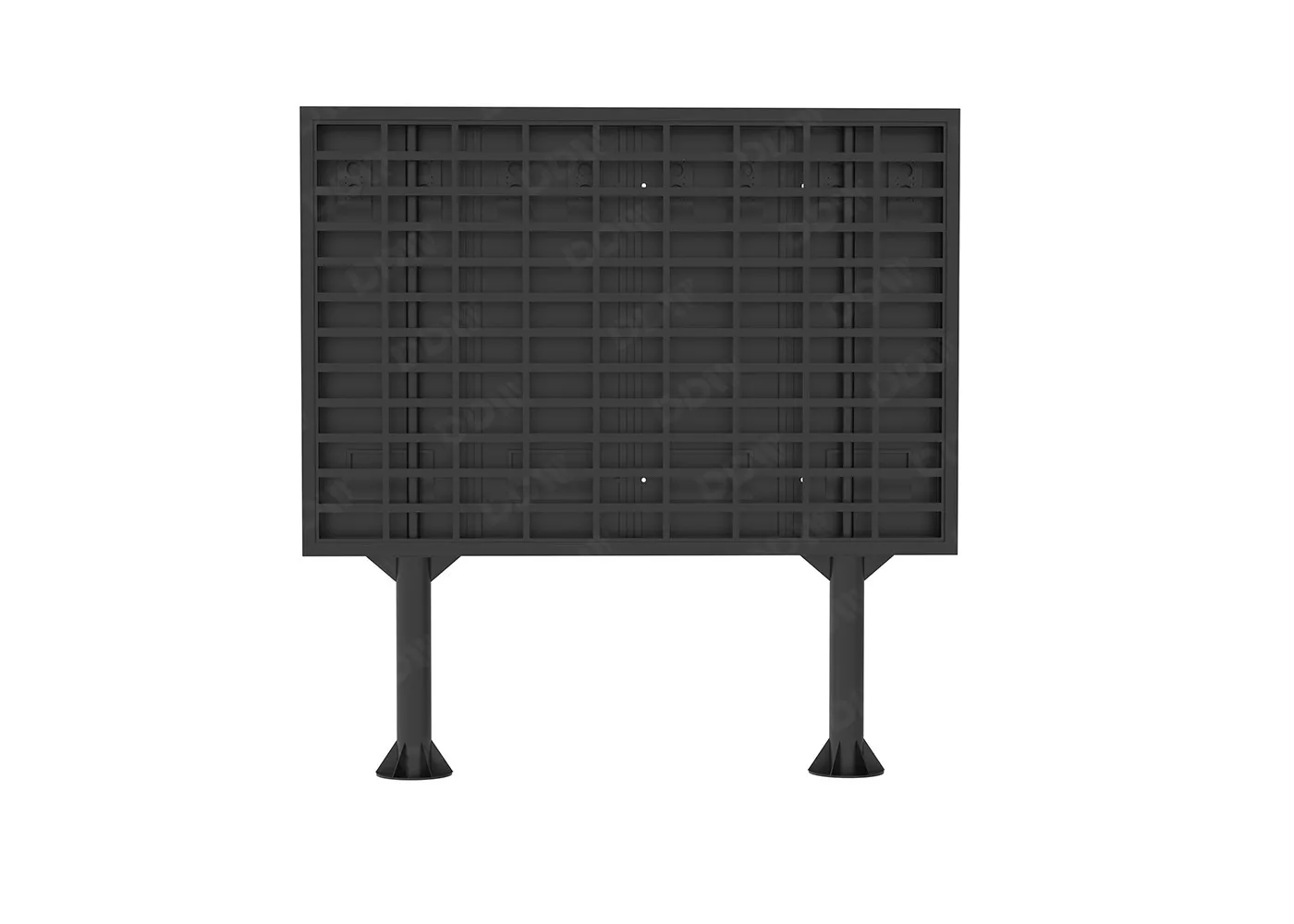

Rear maintenance of iron cabinet with internal cooling fan.
| Model | 2.5 | P3 | P4 | P5 | P6 | P8 | P10 |

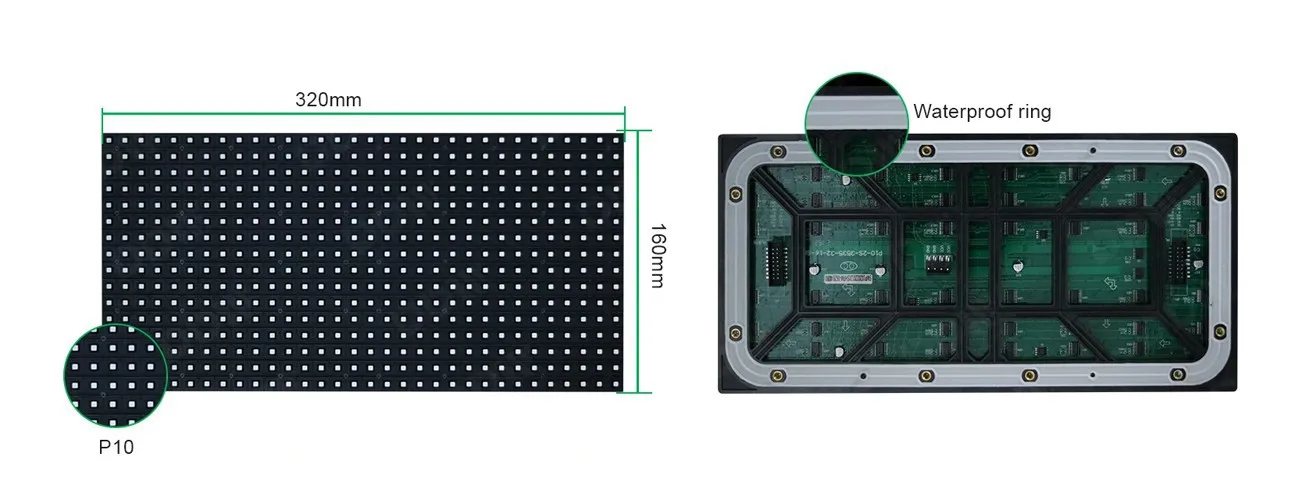

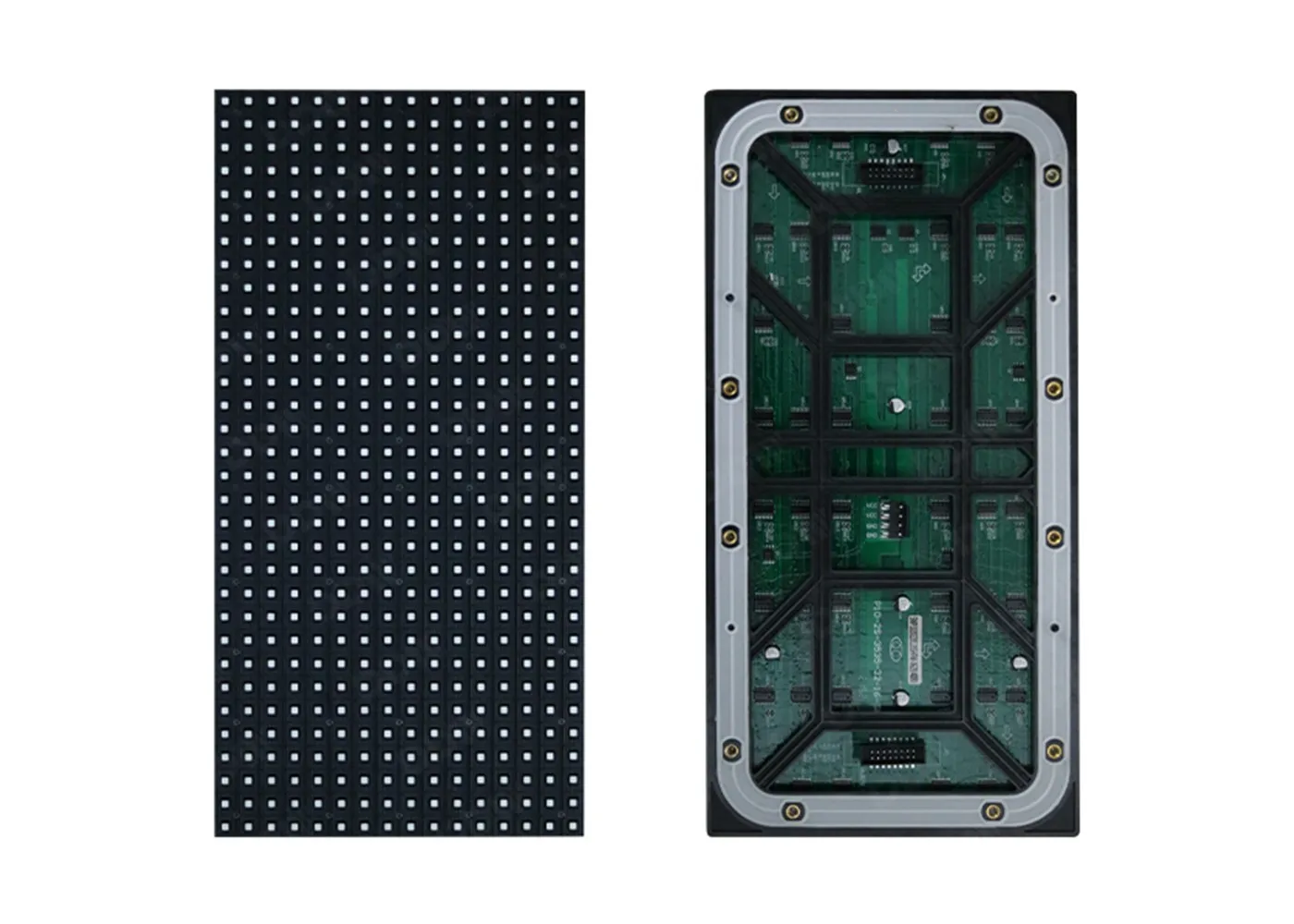

| Module size(mm) | 192×192 | 192×192 | 320×160 | 320×160 | 192×192 | 320×160 | 320×160 |
| Module resolution (dot) | 64×64 | 64×64 | 80×40 | 64×32 | 32×32 | 40×20 | 32×16 |
| Scanning | 1/16S | 1/16S | 1/20S | 1/8S | 1/8S | 1/5S | 1/2S |
| SMD | 1G1R1B | 1G1R1B | 1G1R1B | 1G1R1B | 1G1R1B | 1G1R1B | 1G1R1B |
| Maintenance | Back | Back | Back | Back | Back | Back | Back |
| Installation | Back | Back | Back | Back | Back | Back | Back |
| Cabinet size(mm) | 960×960 | 960×960 | 960×960 | 960×960 | 960×960 | 960×960 | 960×960 |
| Density(dot/㎡) | 160000 | 111111 | 62500 | 40000 | 27777 | 15625 | 10000 |
| Brightness(cd/㎡) | 4200-4500 | 4200-4500 | 5000-6500 | 5000-6000 | 5000-6000 | 4000-5000 | 6000-7500 |
| Max. Power Consumption | 1000 | 1000 | 900 | 800 | 800 | 800 | 1000 |
| Average Power Consumption | 350 | 350 | 300 | 400 | 300 | 300 | 500 |
| Cabinet weight (kg/m²) | 40kg | 40kg | 40kg | 40kg | 40kg | 40kg | 40kg |
| Cabinet material | Iron | Iron | Iron | Iron | Iron | Iron | Iron |
| IP rate | IP 65 | IP 65 | IP 65 | IP 65 | IP 65 | IP 65 | IP 65 |
| Grayscale | 10000:1 | 10000:1 | 10000:1 | 10000:1 | 10000:1 | 10000:1 | 10000:1 |
| Refresh rate(hz) | 1920-3840 | 1920-3840 | 1920-3840 | 1920-3840 | 1920-3840 | 1920-3840 | 1920-3840 |
| Frame change frequency | 50/60hz | 50/60hz | 50/60hz | 50/60hz | 50/60hz | 50/60hz | 50/60hz |
| Horizontal viewing angle | >140° | >140° | >140° | >140° | >140° | >140° | >140° |
| Vertical viewing angle | >140° | >140° | >140° | >140° | >140° | >140° | >140° |
| Best viewing distance | >2.5m | >3m | >4m | >5m | >6m | >8m | >10m |
| Input Voltage | AC110V – AC220V | AC110V – AC220V | AC110V – AC220V | AC110V – AC220V | AC110V – AC220V | AC110V – AC220V | AC110V – AC220V |
| Module Max. current | 4.5-5.5 | 4.5-5.5 | 5.5-7.5 | 5.5-7.5 | 3.5-5.5 | 5.5-7.0 | 8.0-10 |
| Temperature-operating | ﹣10℃～60℃ | ﹣10℃～60℃ | ﹣10℃～60℃ | ﹣10℃～60℃ | ﹣10℃～60℃ | ﹣10℃～60℃ | ﹣10℃～60℃ |
| Humidity-operating | 10%～90% | 10%～90% | 10%～90% | 10%～90% | 10%～90% | 10%～90% | 10%～90% |
| Life span (H) | ≥100,000 | ≥100,000 | ≥100,000 | ≥100,000 | ≥100,000 | ≥100,000 | ≥100,000 |
| MTBF (H) | >10,000 | >10,000 | >10,000 | >10,000 | >10,000 | >10,000 | >10,000 |
