QDCOB SERIES
No color difference
COB Packaging Technology
Ultra Fine Pixel Pitch
High Contrast & Deep Black
High Refresh Rate
Wide Viewing Angle
Front Maintenance Design
Silent & Energy Efficient
Seamless Splicing

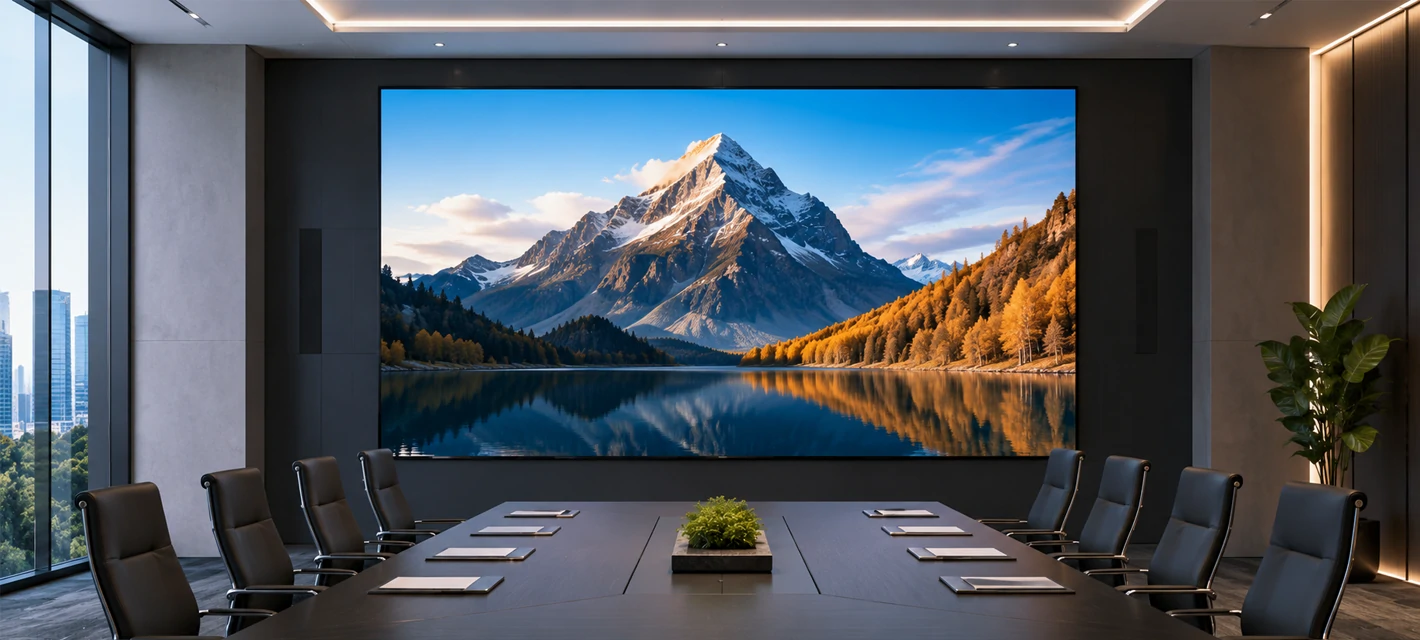

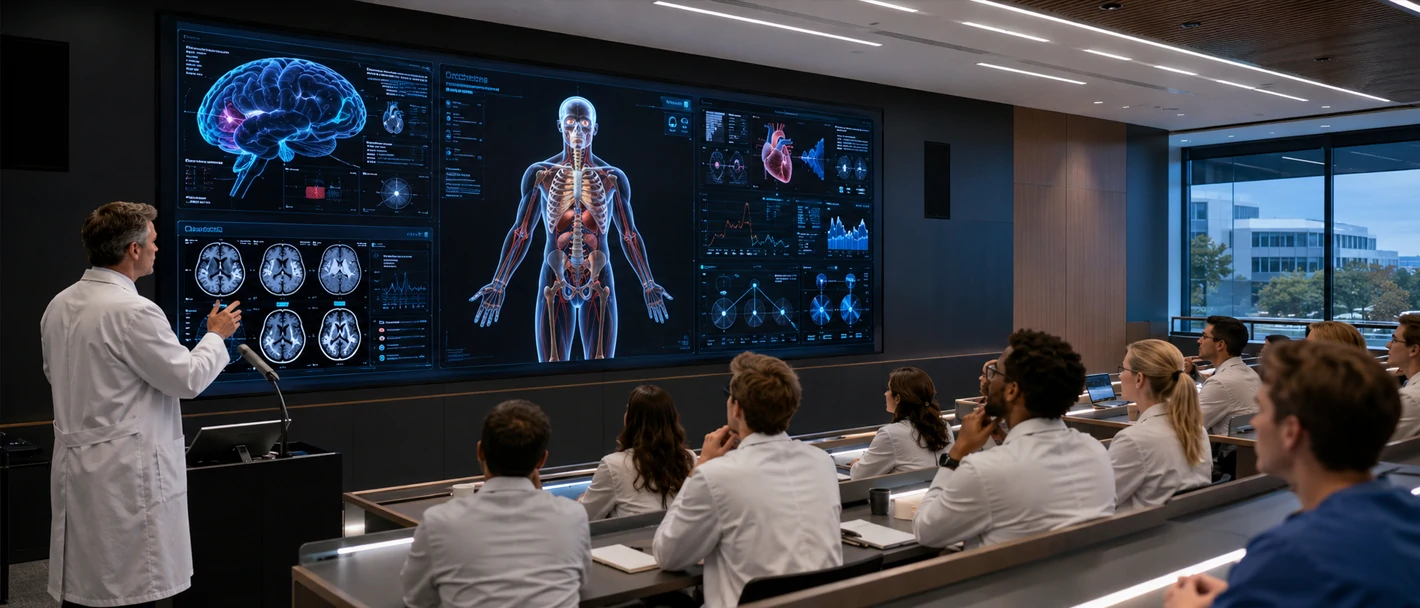

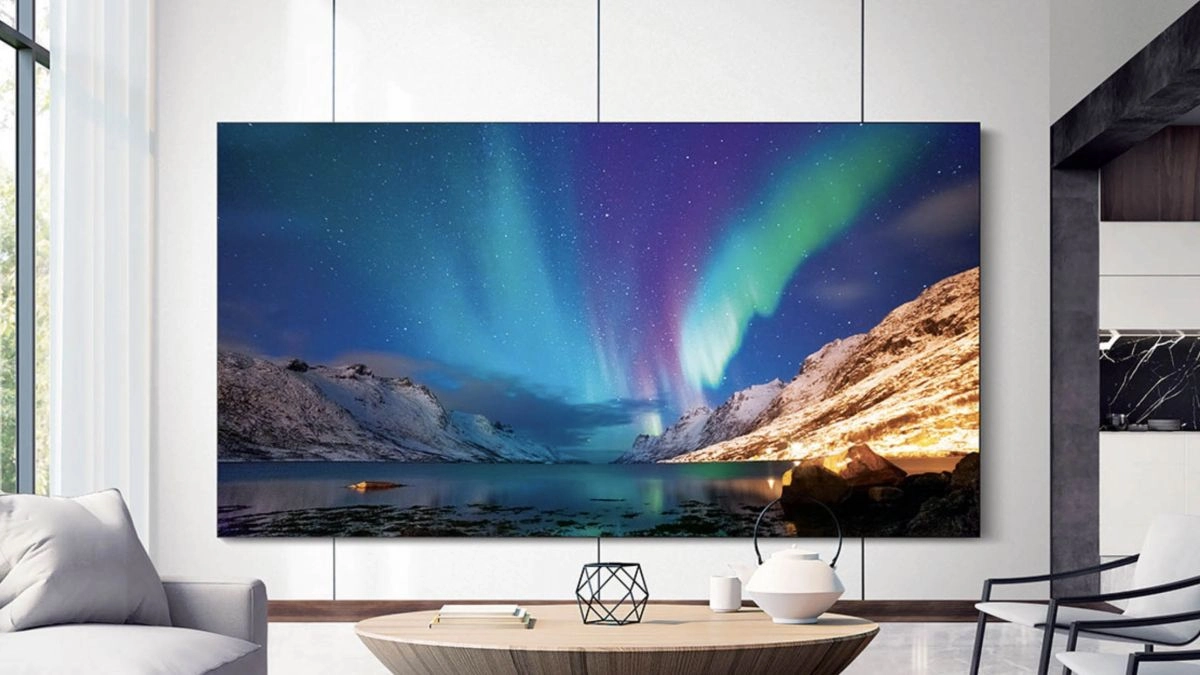

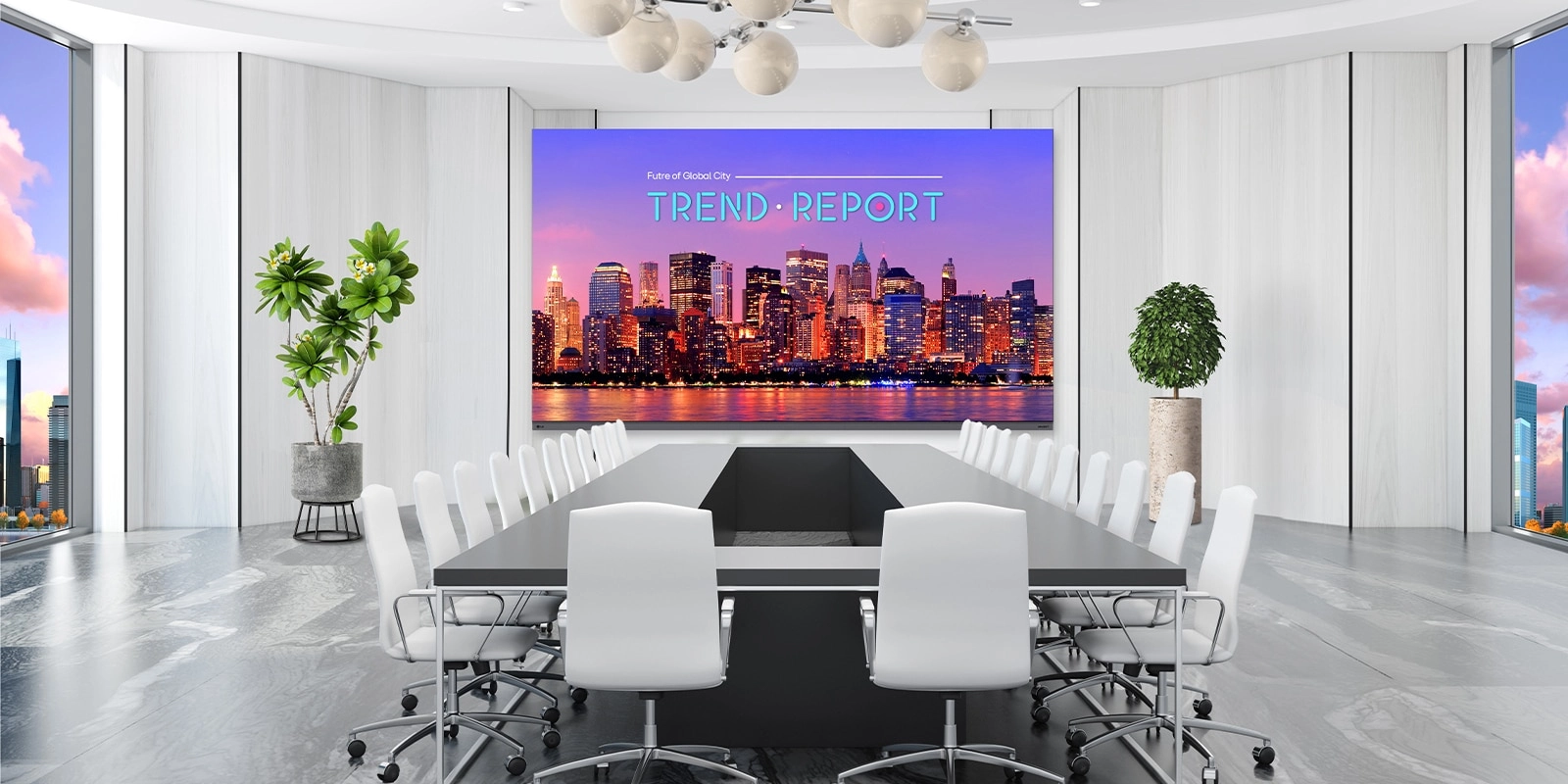

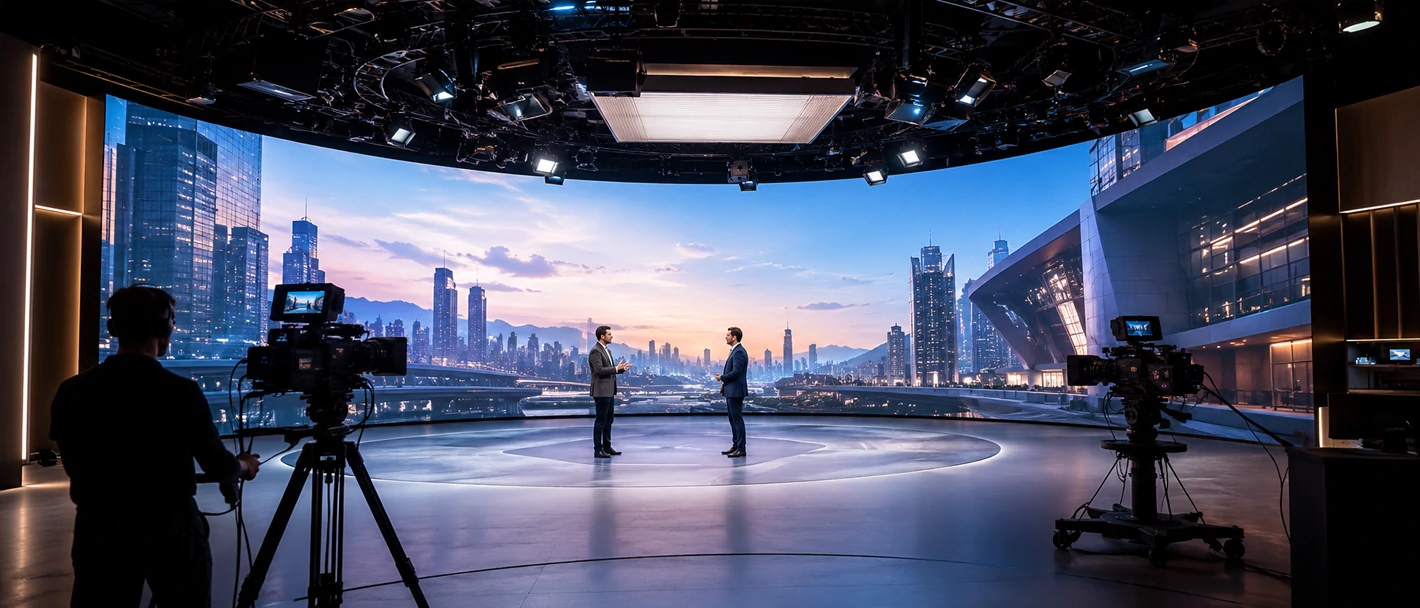

Application Scenario
QDCOB series
No Color Deviation
Surface Waterproof
Arsenic-Free System
Front Maintenance
High Color Accuracy
Energy Conservation
QDCOB SERIES
Quantum Dot COB LED Display
170 ° ultra wide viewing angle
NO COLOR DEVIATION
QDCOB SERIES
No color deviation at all angles, color temperature change less than 200K 15 times better than traditional screens.
OTHER
BETTER COLOR STABILITY
Eliminate color deviation caused by uneven screen temperature and current
NEW ARSENIC-FREE ENVIRONMENTAL STANDARDS
3840Hz / 7680Hz High Refresh Rate
Provides smoother and more stable visuals, helping reduce flicker, scan lines, and moiré during filming or live broadcasting.
Next-Generation Visual Technology.
Advanced visual technology delivers better color, smoother images, eye protection, and energy-efficient performance.
Ink Color Consistency
The surface is made of high light transmittance coating material with consistent ink color,Higher brightness and better heat dissipation

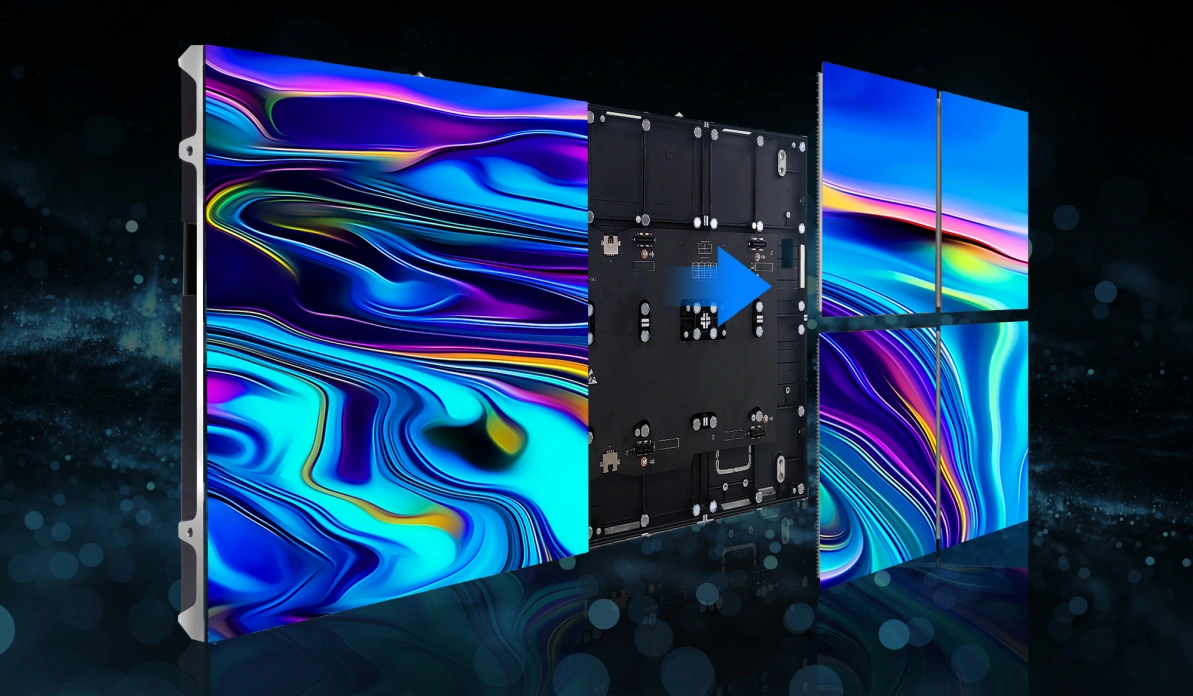

FULL FRONT MAINTENANCE
The full front maintenance design of DCOB series LED display allows for easy maintenance of the LED module, power supply, and receiving card from the front.
Energy-Saving Design
Compared with conventional COB LED displays, QDCOB can reduce power consumption by around 30%, helping lower long-term operating costs.
Ultra-Slim & Lightweight Cabinet
The cabinet size is 600×337.5×32mm, with a weight of about 3.8kg, saving installation space and creating a cleaner indoor display appearance.
WIDER COLOR GAMUT
The monochromatic light produced by quantum dot materials can cover almost all natural colors seen by the human eye.And can provide more saturated colors, so it can reach 100% Rec
Product Parameter
Click and long-press on the form to swipe left or right.
| Pixel Pitch (mm) | P0.78 | P0.9375 | P1.25 | P1.5625 | |
| Module resolution | 205x230 | 160x180 | 120x135 | 96x108 | |
| Module size (mm) | 150x168.75 | ||||
| Cabinet resolution | 820x460 | 640x360 | 480x270 | 384x216 | |
| Cabinet size (mm) | 600x337.5x32 | ||||
| Cabinet weight (kg) | 3.8 | ||||
| Pixel density (dots/m²) | 1508800 | 1137777 | 640000 | 409600 | |
| Cabinet flatness (mm) | ≤0.15 | ||||
| Single-point brightness correction | yes | ||||
| Single-point color correction | yes | ||||
| Brightness (nits) | 600-1000 | ||||
| Color temperature (K) | 3000-10000 adjustable | ||||
| Viewing angle | 170°/170° | ||||
| Chroma uniformity | ±0.003 | ||||
| Frame rate (Hz) | 50&60 | ||||
| Refresh rate (Hz) | 3840/7680 | ||||
| Center distance deviation | ＜3% | ||||
| Brightness uniformity | ≥97% | ||||
| 40 ° C/RH90% test | Through testing | ||||
