| SpecsApplications | Indoor 500*500(mm) | Outdoor 500*500(mm) | ||||||||
| Pixel Pitch | 1.56 | 1.95 | 2.6 | 2.604 | 2.976 | 3.91 | 2.604 | 2.976 | 3.91 | |
| Lamp Types | SMD1212 | SMD1515 | SMD1515 | SMD1515 | SMD1515 | SMD2121 | SMD1415 | SMD1415 | SMD1921 | |
| Scan | 1/40S | 1/32S | 1/24S | 1/16S | 1/21S | 1/16S | 1/12s | 1/14s | 1/11s | |
| Module size(mm) | 250*250 | |||||||||
| Module Resolution(Pixels/pcs) | 160*160 | 128*128 | 96*96 | 96*96 | 84*84 | 64*64 | 96*96 | 84*84 | 64*64 | |
| Module weight(kg) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.7 | 0.7 | 0.7 | |
| Cabinet size(mm) | 500*500 | |||||||||
| Cabinet resolution(Pixels/pcs) | 320*320 | 256*256 | 192*192 | 192*192 | 168*168 | 128*128 | 192*192 | 168*168 | 128*128 | |
| Cabinet Weight(kg) | 8 | 8 | 8 | 8 | 8 | 8 | 8.8 | 8.8 | 8.8 | |
| Per cabinet Module quanity(pcs) | 4 | |||||||||
| Pixel density(Pixels/m²) | 409600 | 262144 | 147456 | 147456 | 112896 | 65536 | 147456 | 112896 | 65536 | |
| Material | Die-casting aluminum | |||||||||
| Real Brightness(cd/m²) | 1000 | 1000 | 1000 | 1000 | 1200 | 1000 | 6000 | 5000 | 5000 | |
| Grey grade | 16bit | |||||||||
| Refresh rate | >=7680Hz | |||||||||
| Input Voltage | AC100-240V, 50/60Hz | |||||||||
| Power Consumption(Max.W/m²) | around 560 | |||||||||
| Power Consumption(Ave.W/m²) | around 280 | |||||||||
| IP rating(Front/Rear) | IP54 | IP65 | ||||||||
| Arc angle | ±10° | |||||||||
| Operating temperature | -20℃ ~ +45℃ | |||||||||
| Operating humidity | 10% ~90%RH | |||||||||
| Storage temperature | -10℃ ~ +40℃ | |||||||||
| Storage humidity | 10% ~60%RH | |||||||||
| Lifespan (Hrs) | ≥100000 | |||||||||
D SERIES
D SERIES
D SERIES
D SERIES
D SERIES

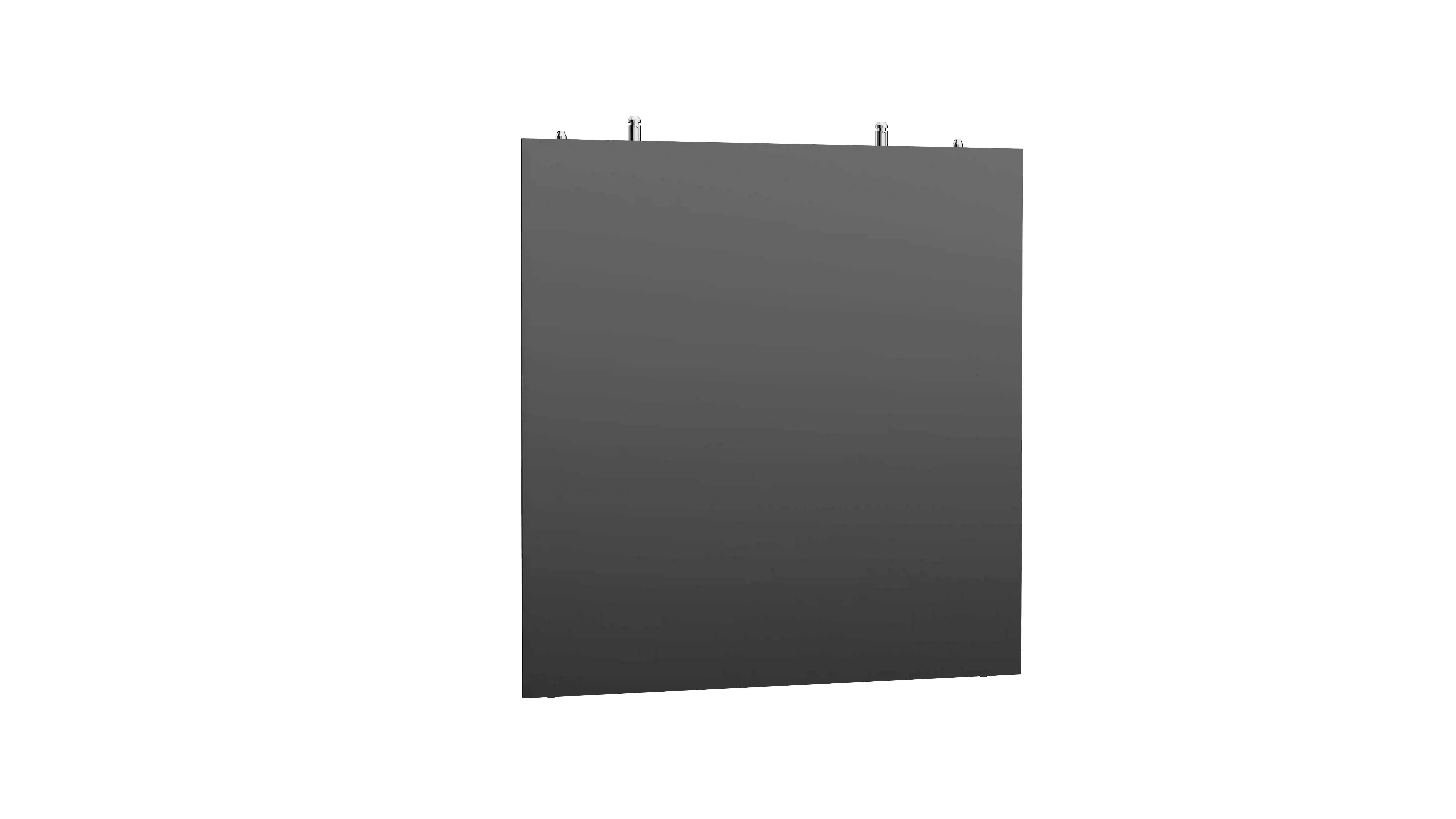

500x500mm rental LED cabinet for flat or curved stages, P1.56/P1.95/P2.604/P2.97/P3.91 pixel pitch options, SMD and GOB protection.
D Series Rental LED Screen Key Features
Tag:
D Series is DDW Display’s high-end rental LED screen for concerts, touring, exhibitions, churches and outdoor stage production. The 500x500mm cabinet supports flat, curved and 90 degree installations, with P1.56 to P3.91 pixel pitch options, SMD/GOB protection, 7680Hz refresh, front and rear maintenance, IP65 outdoor protection and optional power-sharing backup for more reliable live-event operation.
Best for: concert stages, touring productions, exhibition booths, broadcast events, churches, festivals and rental companies that need fast setup, stable performance and premium image quality.

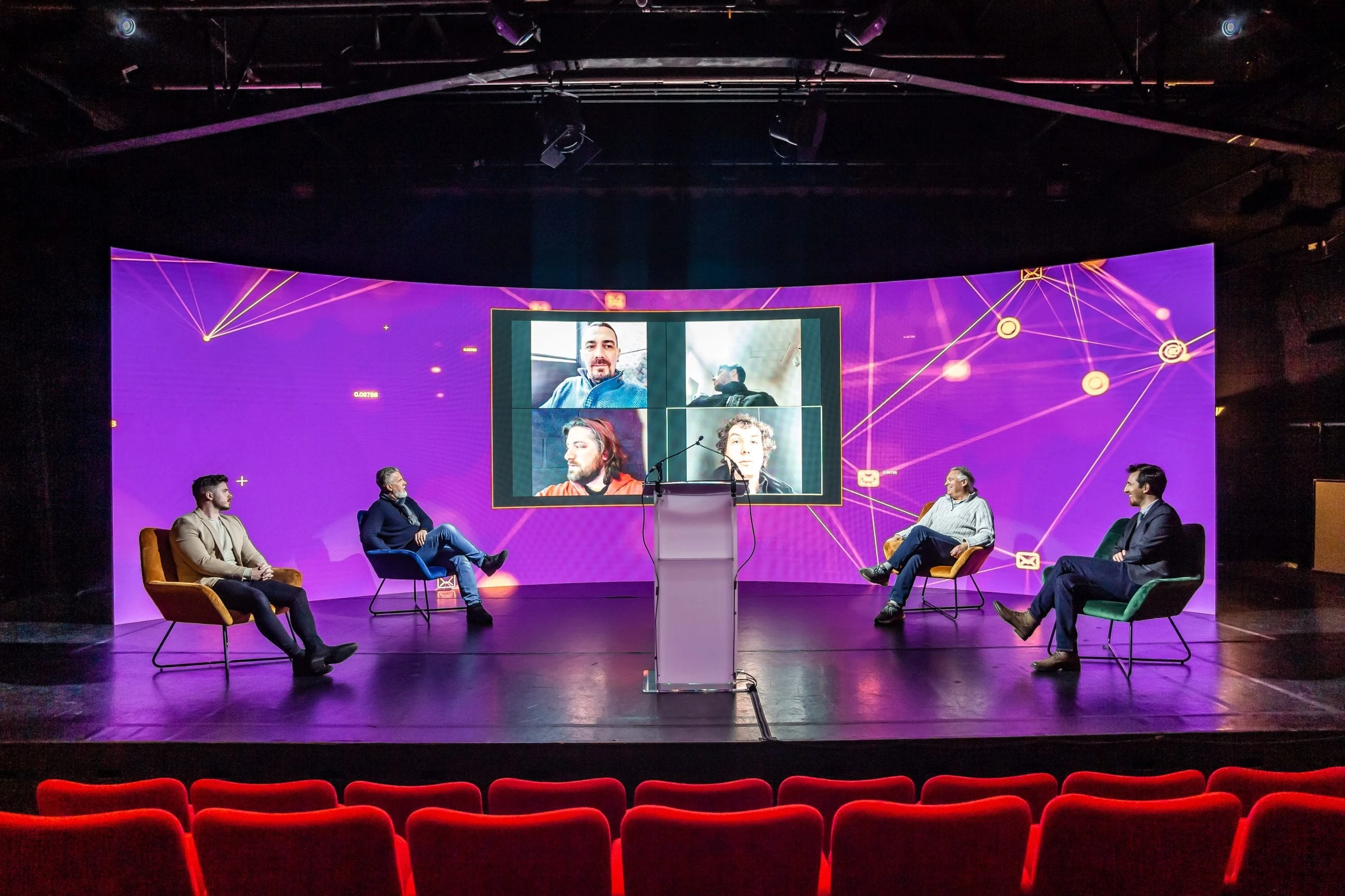

Event, Stage and Touring Applications

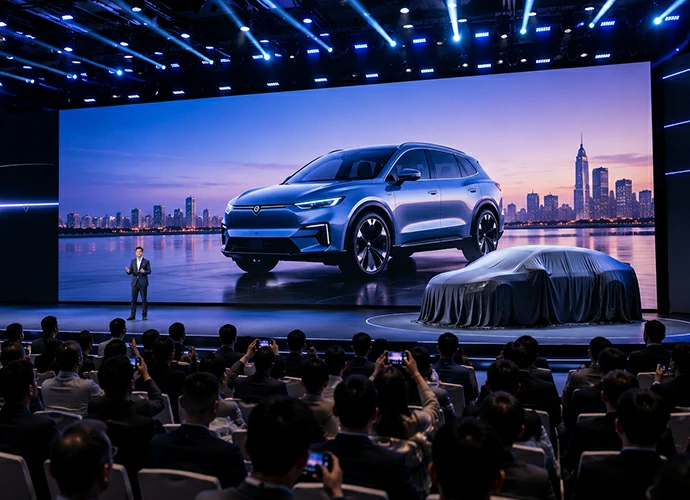

Press Conference
Church

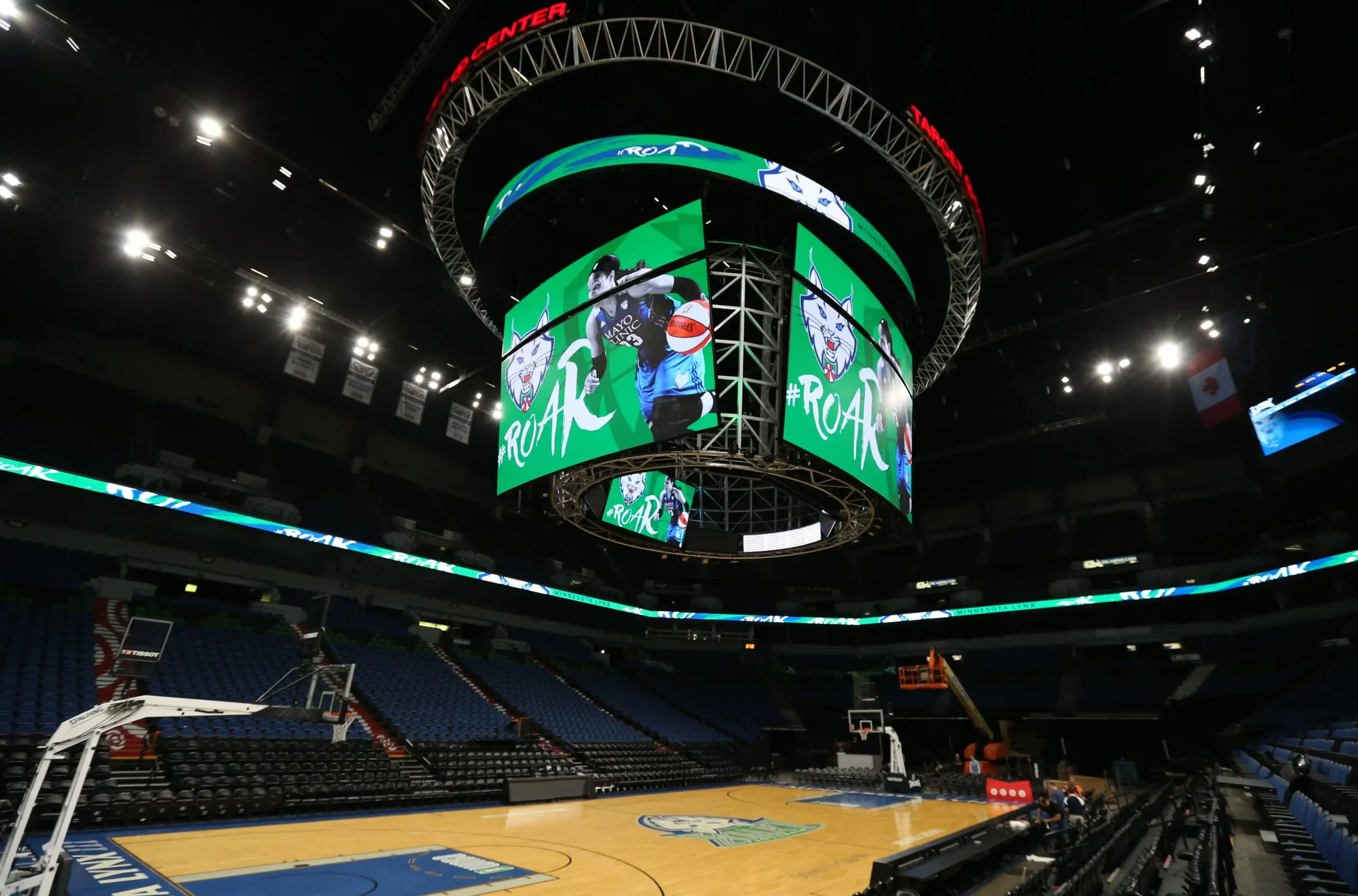

Sports event

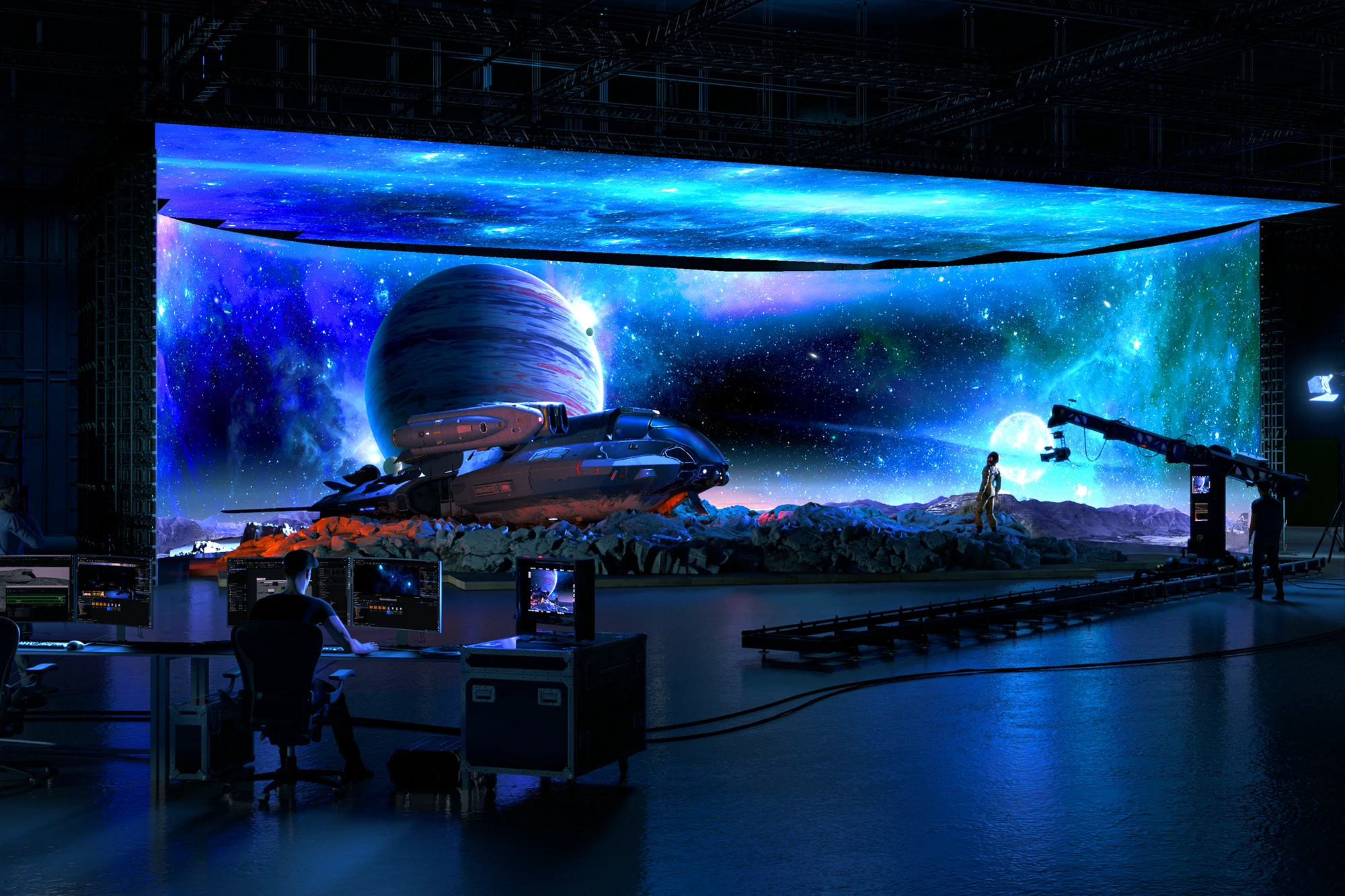

Virtual shooting
Music Festival
Live broadcast
Reliable Rental LED Display for Live Events
IP65 waterproof
Curved &Right angle available

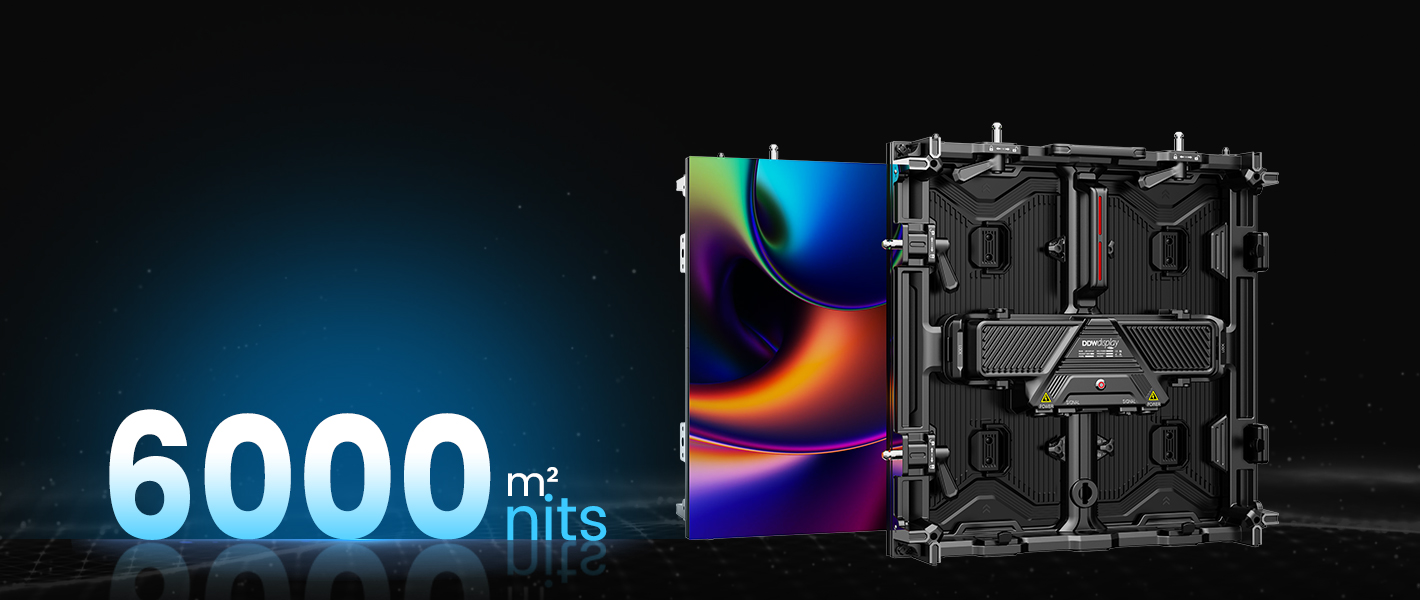

6000nits high brightness
Front Rear maintenance
High end design
Dual backup signal power supply (Optional)
D Series Rental LED Screen
Pixel Pitch
P1.56 P1.95 P2.604 P2.97 P3.91
Cabinet size
500*500mm
Module size
250*250mm
Weight
8kg(indoor)/8.8(outdoor)kg
Brightness
800-1200cd/m2(indoor) 4500-6000cd/m2(outdoor)
Refresh rate
7680Hz
High-End Rental LED Display for Stage Production
- 7680Hz High Refresh
- 5000nits High brightness
- V0 Flame Retardant
Why Rental LED Screens Are Growing in Event Production
Rental LED screens are increasingly used for concerts, corporate events, exhibitions, houses of worship and outdoor festivals because they deliver bright, scalable visuals with faster installation than fixed display systems. D Series is designed for rental teams that need repeatable setup, high refresh performance and reliable operation across indoor and outdoor venues.
500x500mm Rental LED Cabinet Design

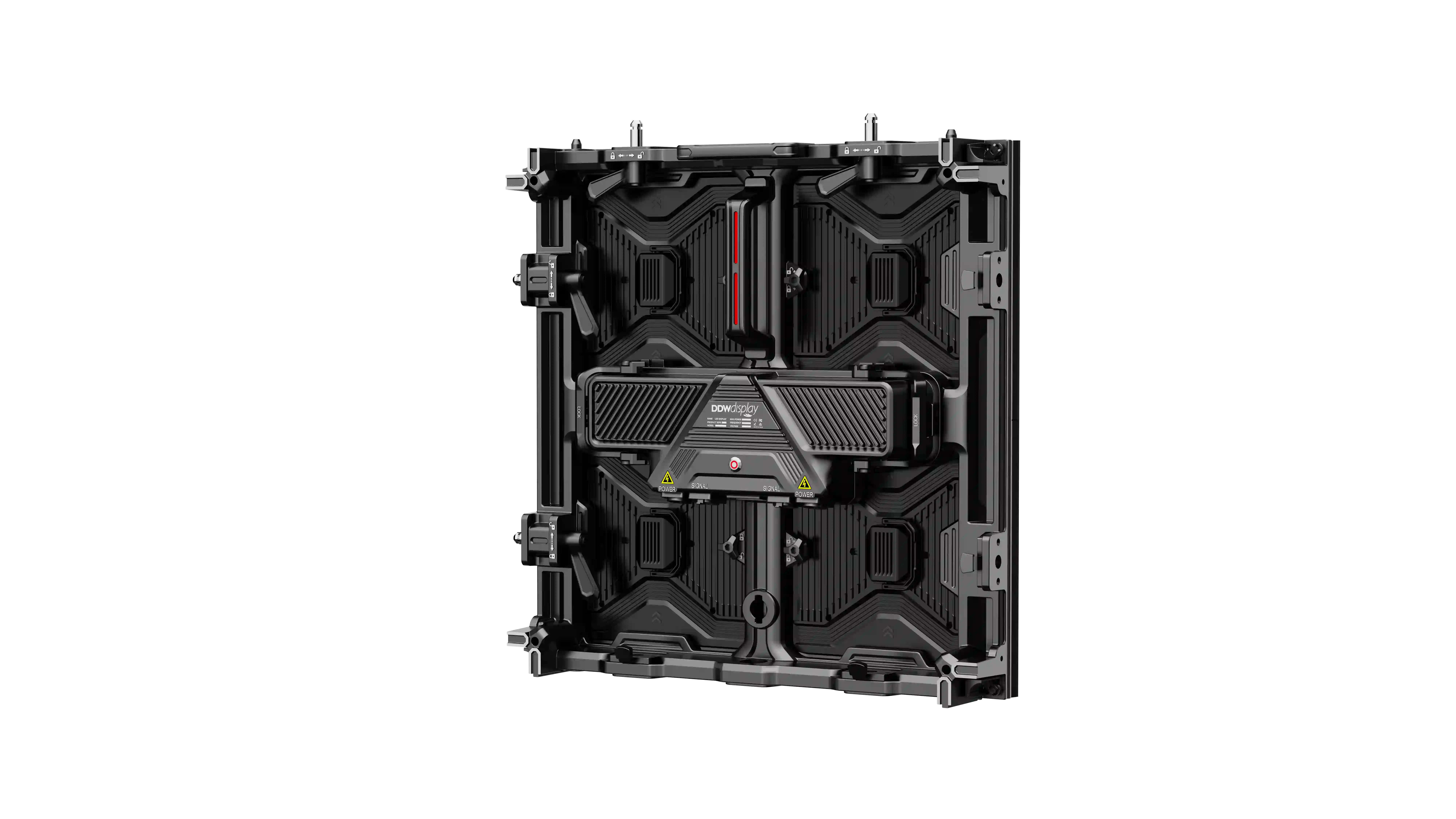

The D Series cabinet is engineered for repeated rental use, with ergonomic handles, fast locks, magnetic LED modules, installation knobs, detachable power and signal box, and precise alignment for flat, curved and right-angle builds.
V-0 Flame-Retardant Cabinet Materials
Selected cabinet materials use V-0 flame-retardant design for improved safety, heat resistance and stable operation in demanding event environments.

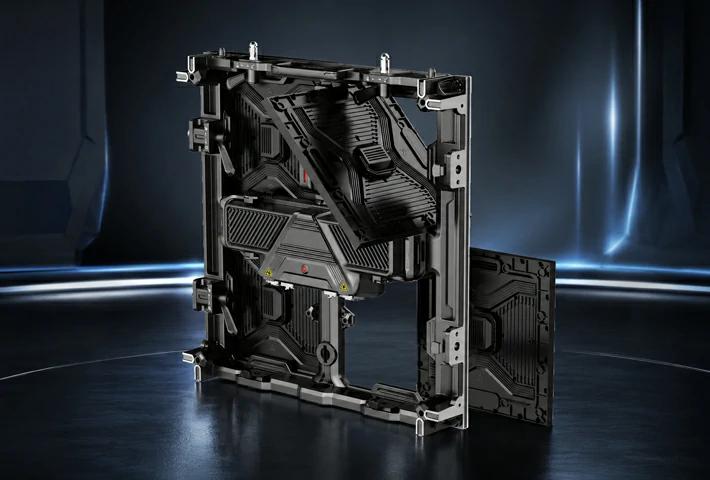

Front and Rear Serviceable LED Module Design
Power-Sharing Backup for Live Event Reliability
With optional power-sharing backup, adjacent cabinets can continue supplying output when a power box, power cable or aviation connector fails, helping the screen keep displaying normally during live events.
Power Failure Backup Logic
Continuous Display During Live Events
Next-Generation Rental LED Visual Performance
High Refresh, High Brightness, Reliable Operation
Advanced visual technology helps deliver smoother motion, improved color, eye comfort and energy-efficient performance for premium rental LED screen projects.
01

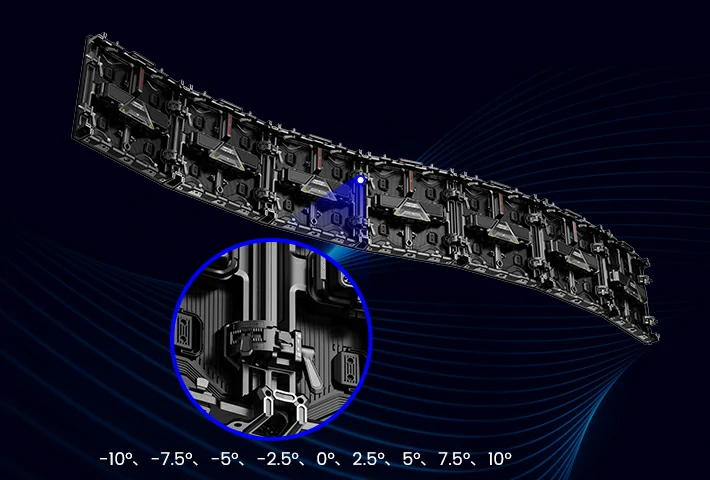

CURVED SHAPE
Exclusive customized buckle lock, can help design various curved shapes.
02
FRONT AND REAR MAINTENANCE
Strong magnetic design with handle screws, easy to assemble and disassemble for both indoor and outdoor conditions.
03
HIGH PRECISION DESIGN
Die cast aluminum sheet metal on both sides strengthens the cabinet, making it less prone to deformation,high precision cabinets design,ultra-high flatness of led screen
04
7680Hz High Refresh
High refresh-rate and grayscale for professional live visuals.
Multiple LED Lamp Options: SMD and GOB
High Brightness for Indoor and Outdoor Stages
Indoor brightness can reach up to 1000 cd/m2, while outdoor configurations can reach up to 6000 cd/m2 for daylight event visibility.
Modular Design for Faster Rental Maintenance
Standardized accessories and modular components make setup, service and replacement easier for rental teams.
IP65 Waterproof Protection for Outdoor Events
IP65 protection helps resist water, dust, corrosion and high-temperature conditions in outdoor stage and touring applications.

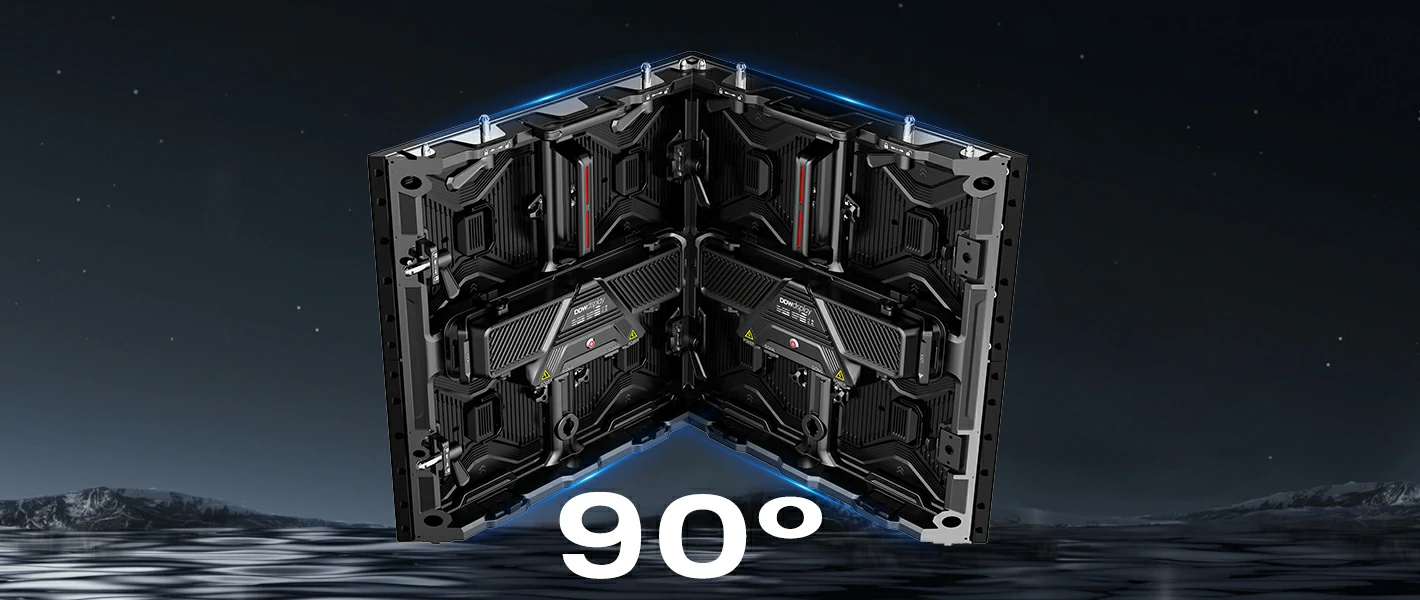

90 Degree Splicing for Creative Stage Corners
Custom 45 degree beveled cabinets allow two panels to form a clean 90 degree corner for immersive stage and booth designs.
Corner Protection for Rental Transport and Setup
The four-corner guard design helps protect LED modules during transportation, installation, operation and dismantling.

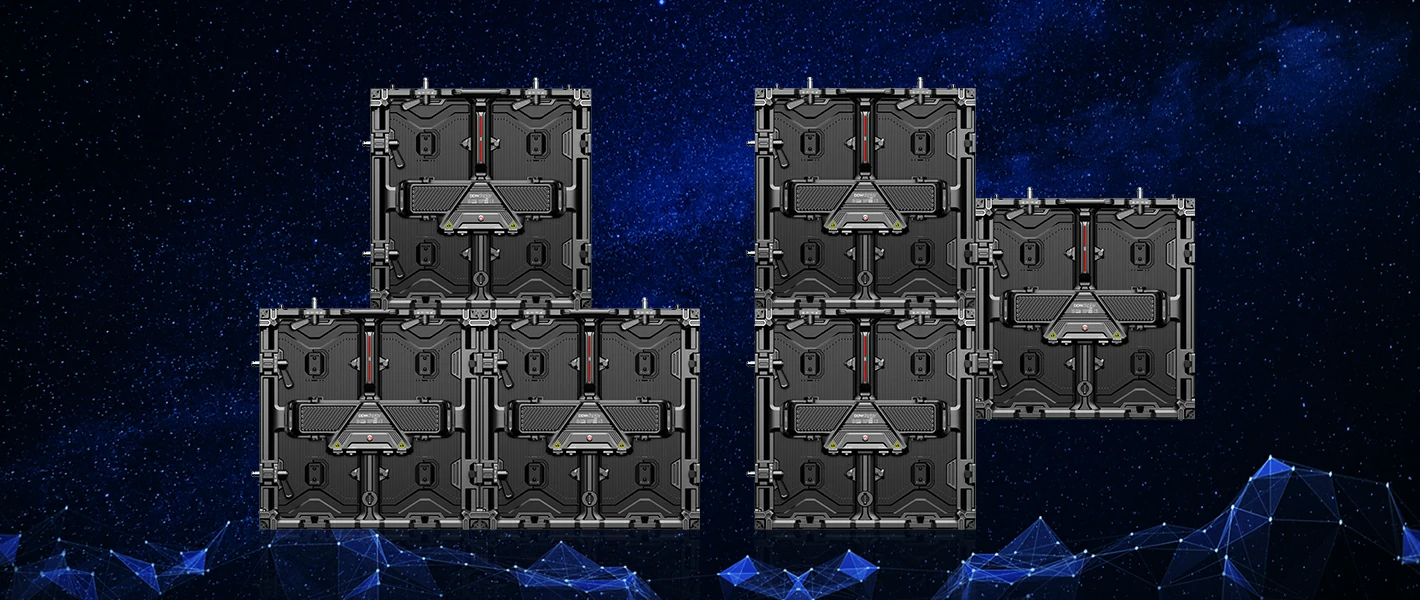

Creative Flat, Curved and Right-Angle Installation
D Series can build flat LED walls, curved backdrops, right-angle corners and other creative event display shapes.
Stable Operation with Signal and Power Backup Options
Dual signal backup and an independent power box design help improve operating stability during long show runs and touring projects.

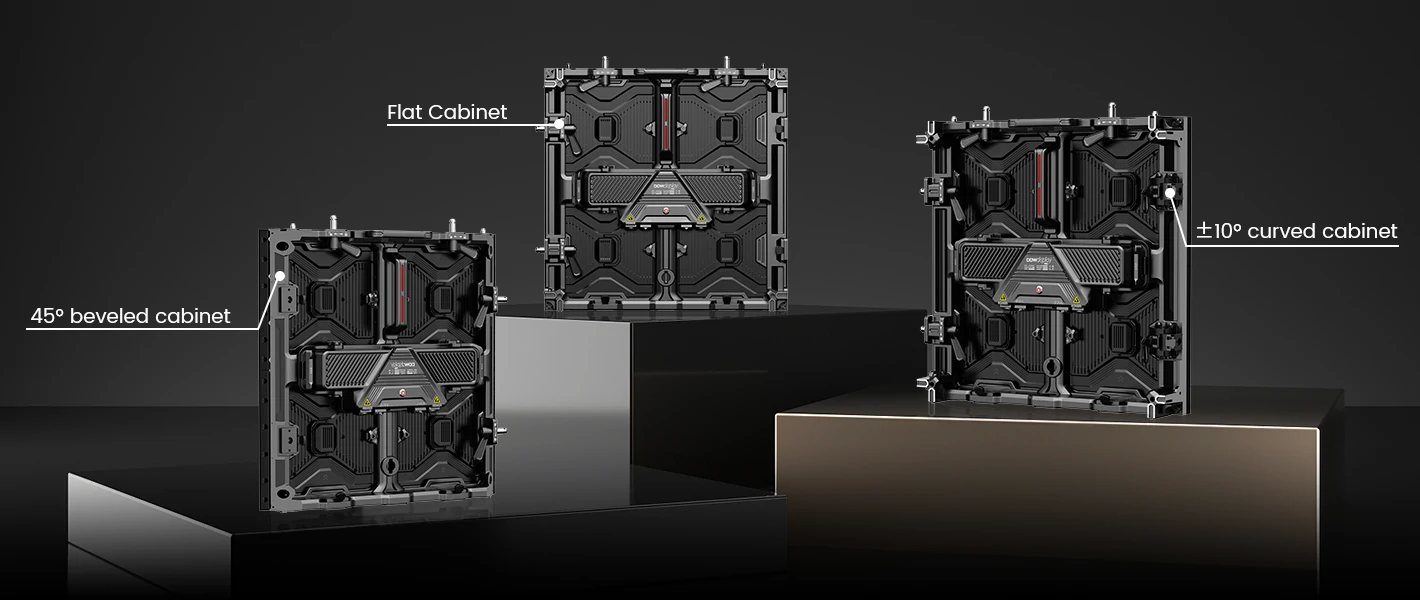

Flat Cabinet Option for Seamless LED Walls
D Series Product Parameters
Swipe the specification table left or right to view all D Series models, pixel pitches and technical parameters.
