VPX-W4-4U Video Wall Processor PIP POP with iPad Preview

It's a high performance video processing workstation with pure hardware architecture for spectacular video wall displaying which can be employed in fields including education and research, government announcement, information publishing, exhibition and show, controlling and commanding center, security monitoring, etc. Advanced image processing technologies such as high definition video signal collecting, real time and high resolution digital image processing. It also employs large-capacity, high-speed FPGA and CrossPoint switch to ensure the real-time processing of all input signal and the consistency of the data, leading to no image delay, discretization, frame loss, which guarantee excellent video displaying.

Features

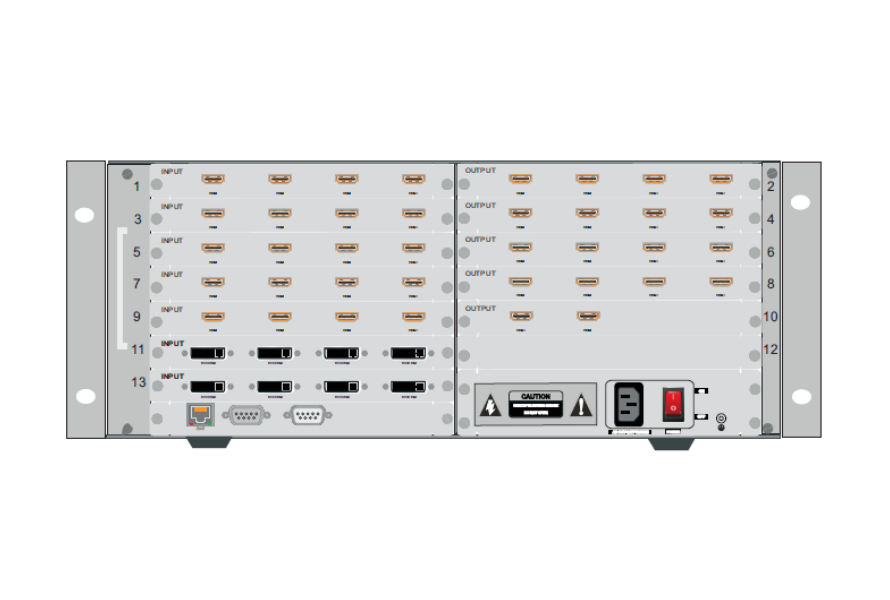

VPX-W4-4U
Feature Description
  • - 4U modular chassis
  • - 8 input slots + 5 output slots
  • - Supports to open 4 windows on screen
  • - Supports PIP, cross-screen, pure-hardware design and IP input
  • - Supports up to Video wall groups management
  • - Supports the PC software/ APP/ RS232 control
  • - Supports scrolling text and background image(*need optional function card)
  •

Descriptions

All-in-One — Simple design, yet complex integration
Note: For the RJ45 preview card, please see the features as below: Support 64 channels signals preview Support to plug multiple preview cards Supports 8 channels preview with 30Hz Supports 64 channels preview with 10Hz 1 preview card will take 1 output slot


Specifications

Input slots number

8 slots, Up to 32 inputs(1-card 4-port)

Output slots number

5 slots, Up to 18 outputs(1-card 4-port)

Control

RS232, LAN, WEB GUI for Scenes

Dimension

410*310*178mm

Weight

15kg

Power Supply

100VAC–240VAC 50/60Hz

Consumption

950W

Working Humidity

10%-90%

Temperature

-10℃-50℃

Storage

-20℃-75℃

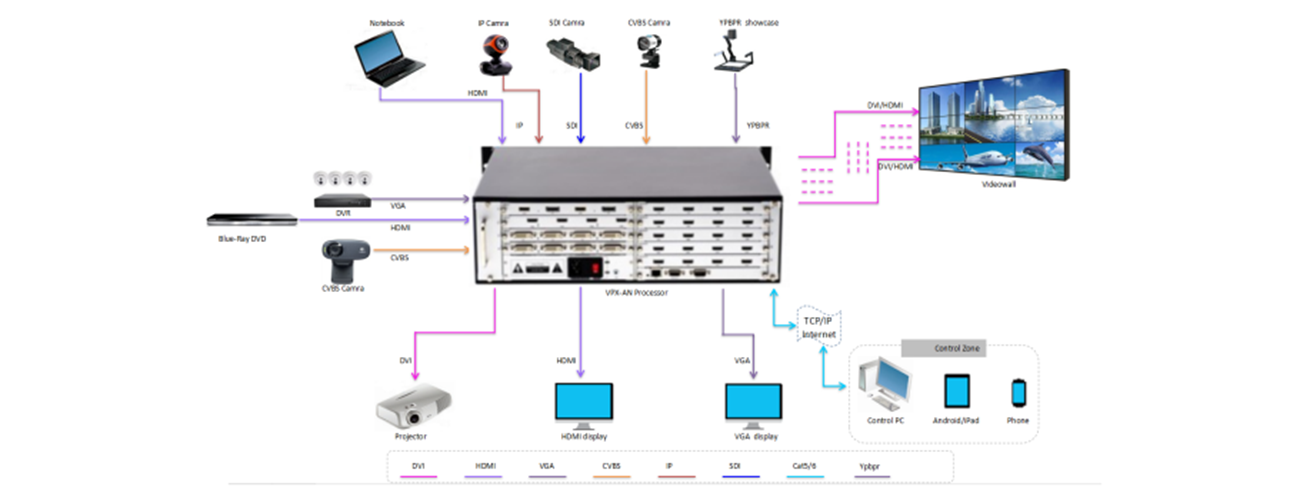

Diagram
