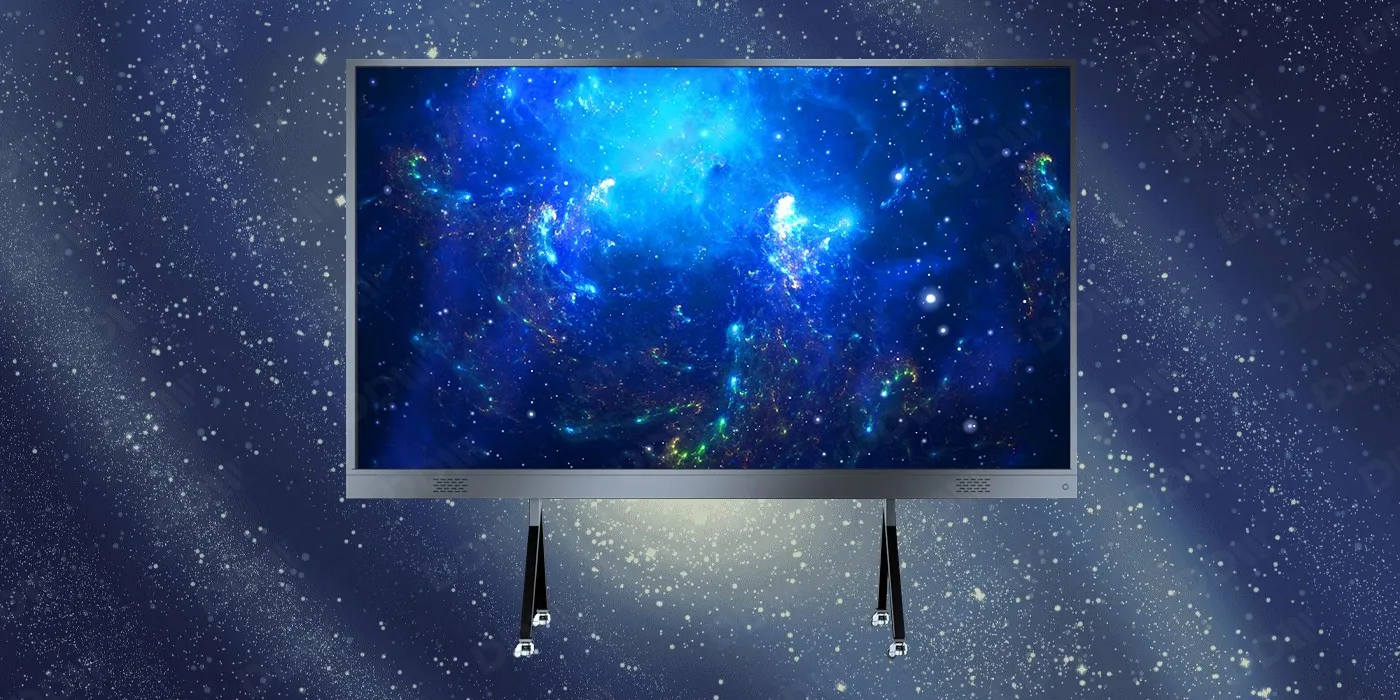

CA series All in One LED screen TV

CA series All in One LED screen TV

LED conference all-in-one machine is a super-large intelligent seamless splicing screen with excellent screen body technology, and a new generation of multi-functional display products combined with efficient conference system. Support multi-party video communication, information broadcasting, collaborative whiteboard, wireless projection, and combine high-quality 2K/4K/8K intelligent large-screen display terminals to bring a safe, reliable, convenient and efficient, low-threshold, easy-to-use and easy-to-deploy ultimate video experience

inquiry Download Brochure

Features

Advantages

Video

Parameters

Installation

Specifications

Accessories

Features

3840 Hz

Wide Viewing Angles

Common Cathode Design

High Strength Structure

Magnetic Suction Installation

Front Maintenance

Easy to move

Infrared Touch

Advantages

Feature Description

- UHD full HD, intelligent brightness
- The interface is simple and easy to operate, and the installation is simple and easy to use.
- One-button start, wireless screen projection, USB plug and play;
- Simple and generous appearance, rich external interfaces
- Die-cast aluminum design, seamless border less

Video

Parameters

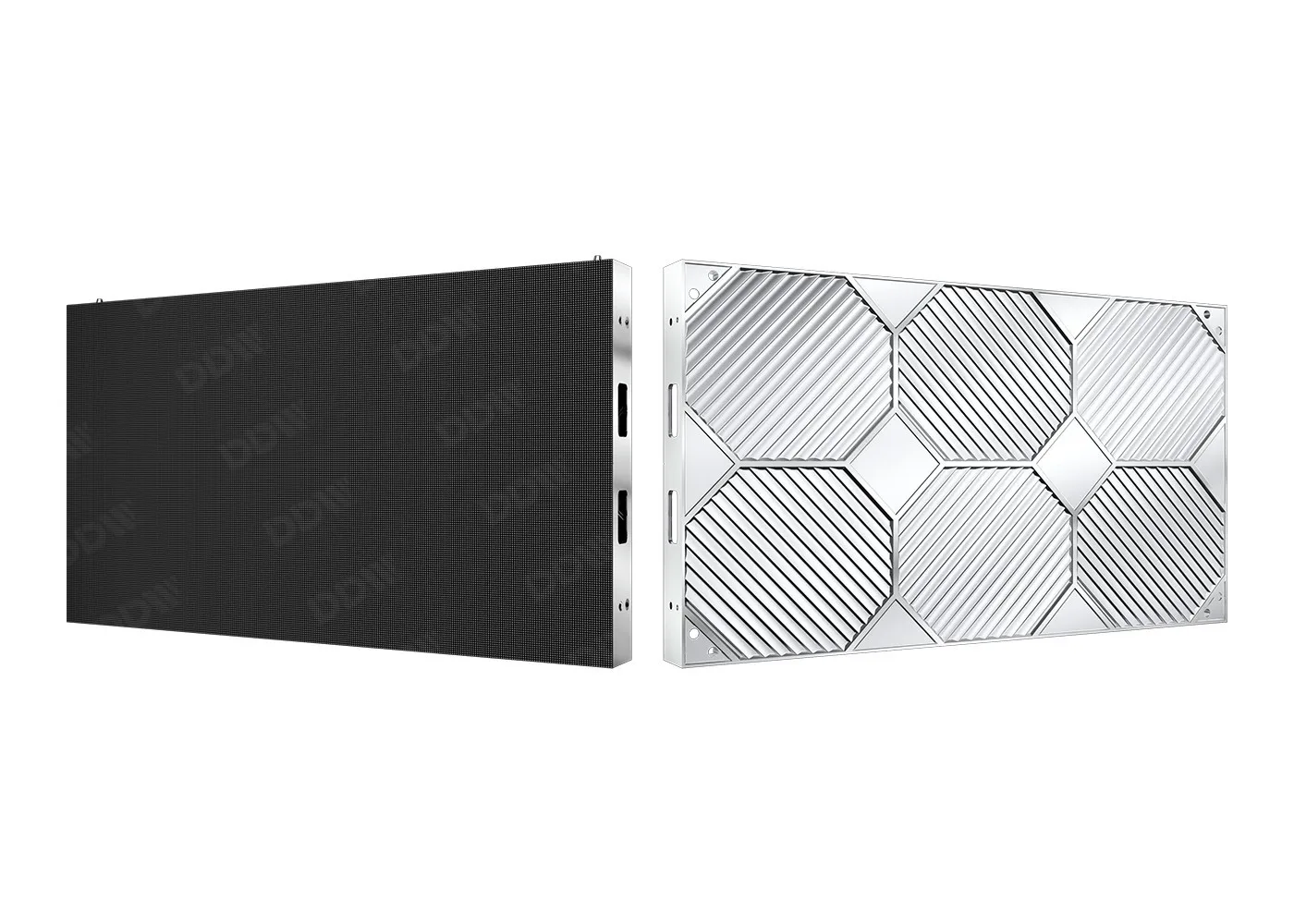

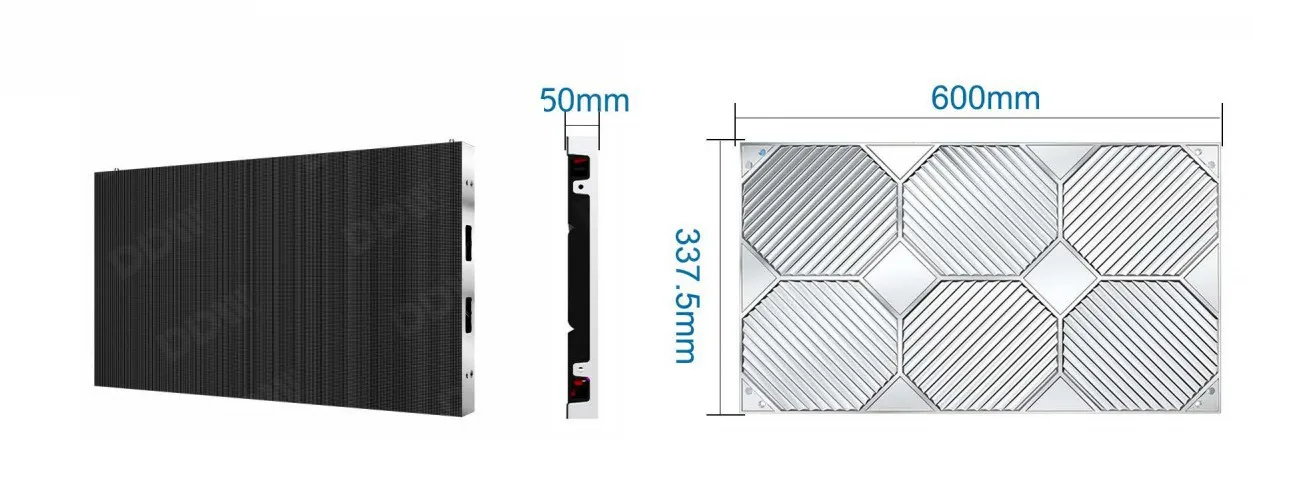

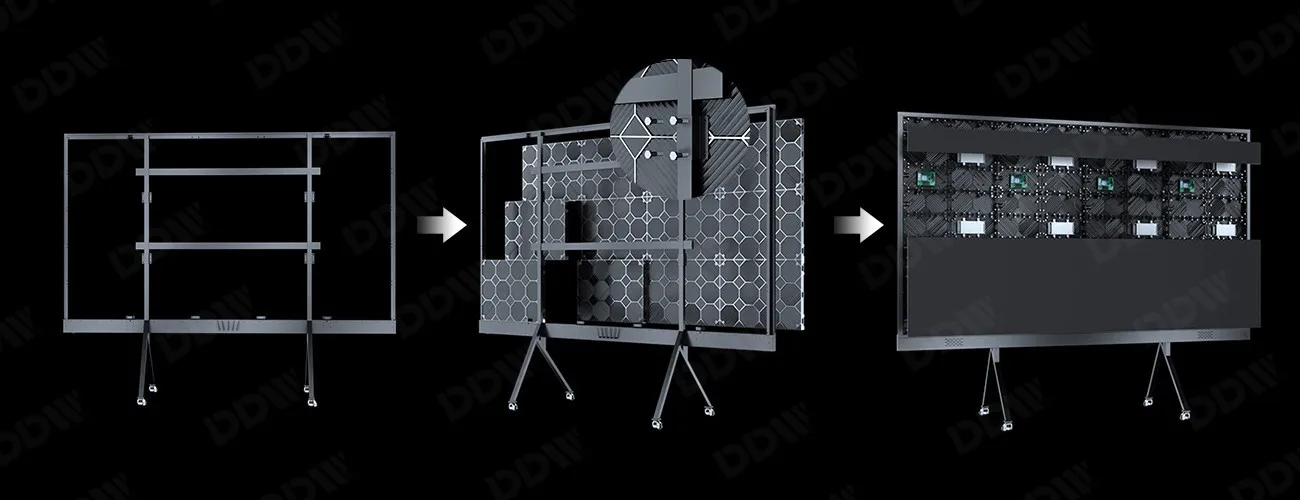

Standardized Cabinet Design

Can be quickly and seamlessly spliced into a large screen

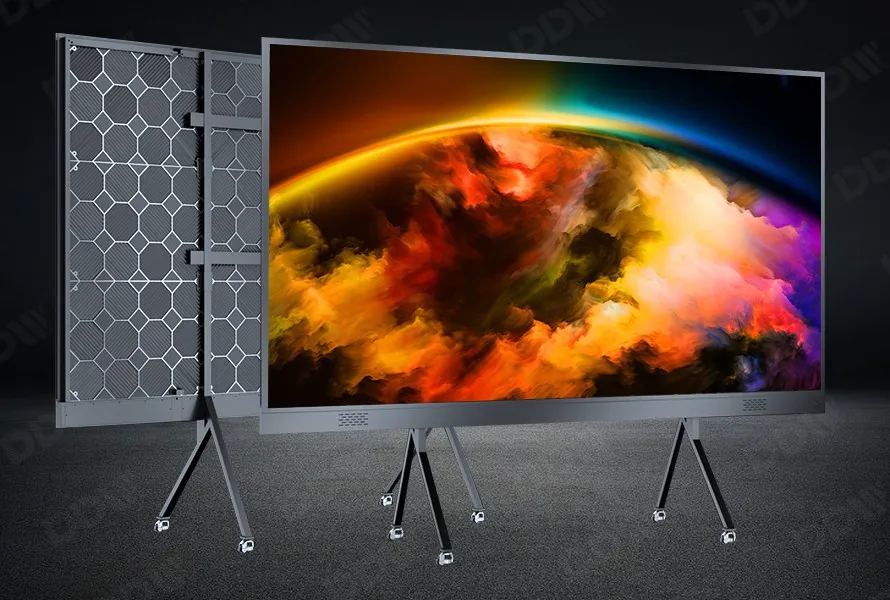

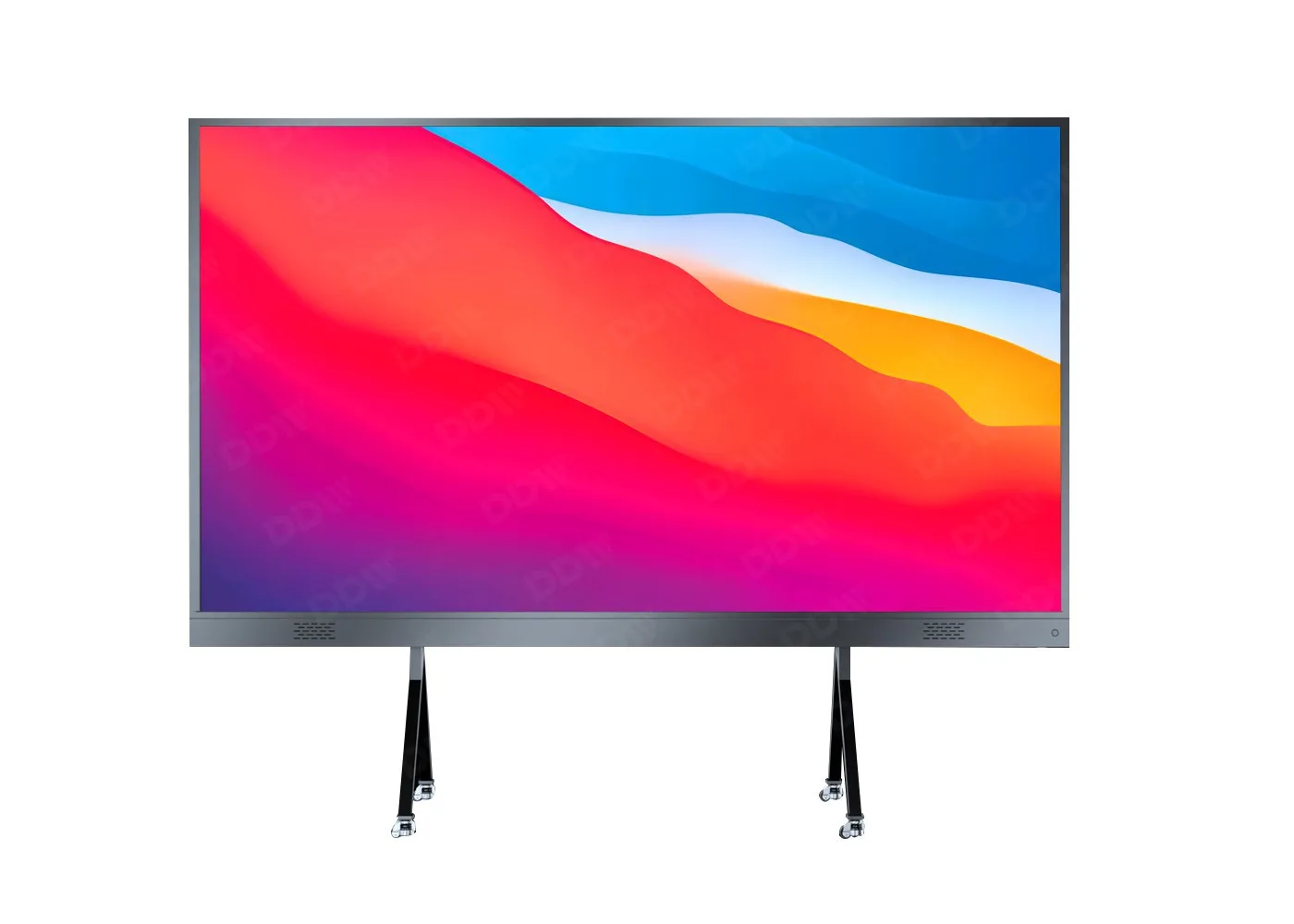

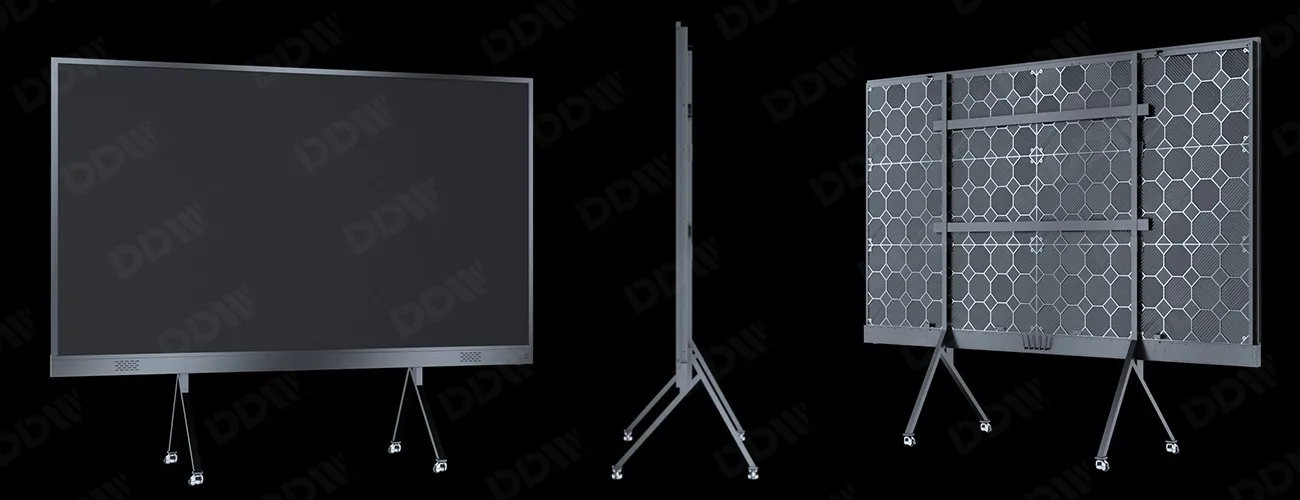

Simple and generous appearance

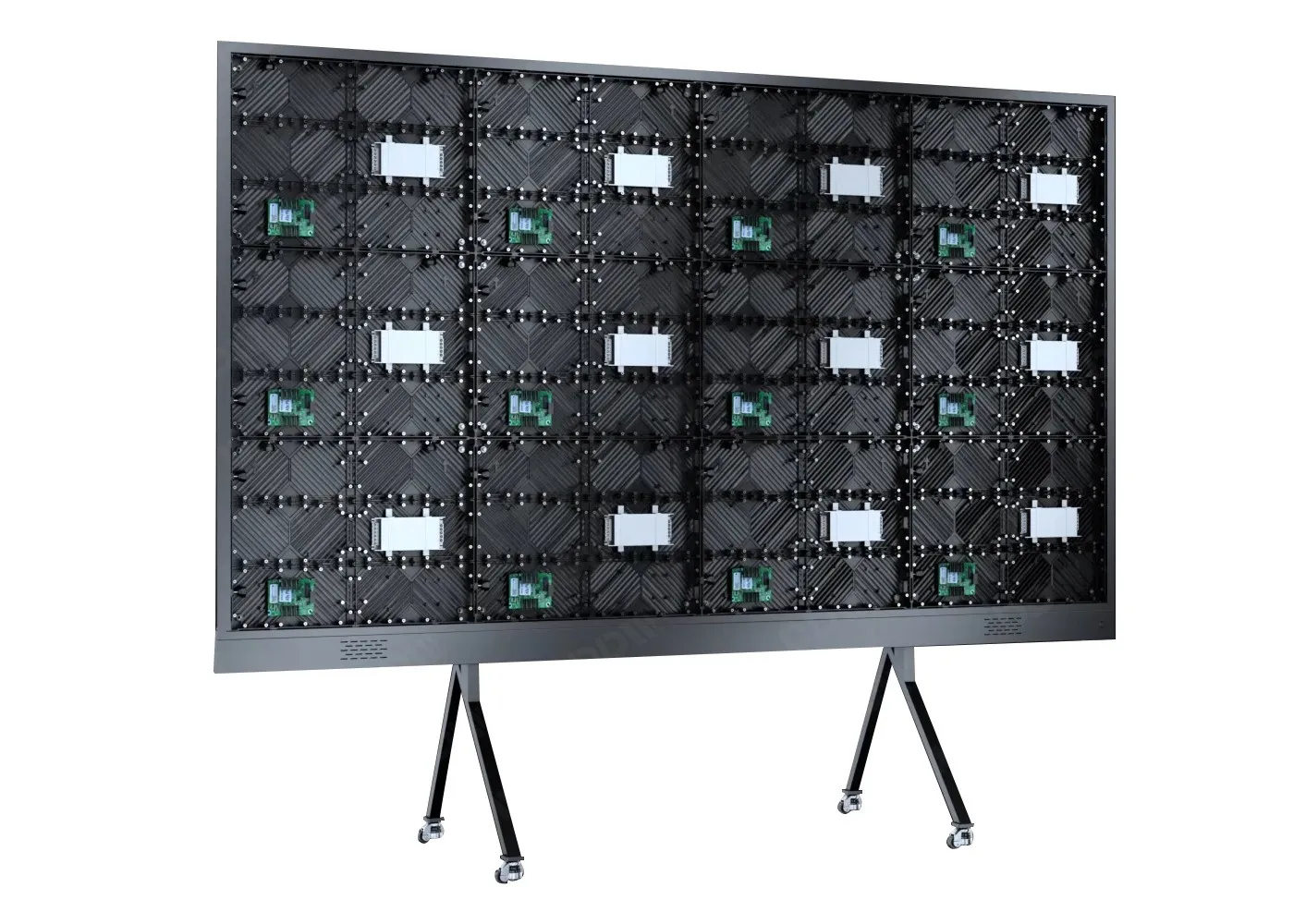

Simple and firm support design,four universal wheels are equipped as standard, with unlimited movement

Installation

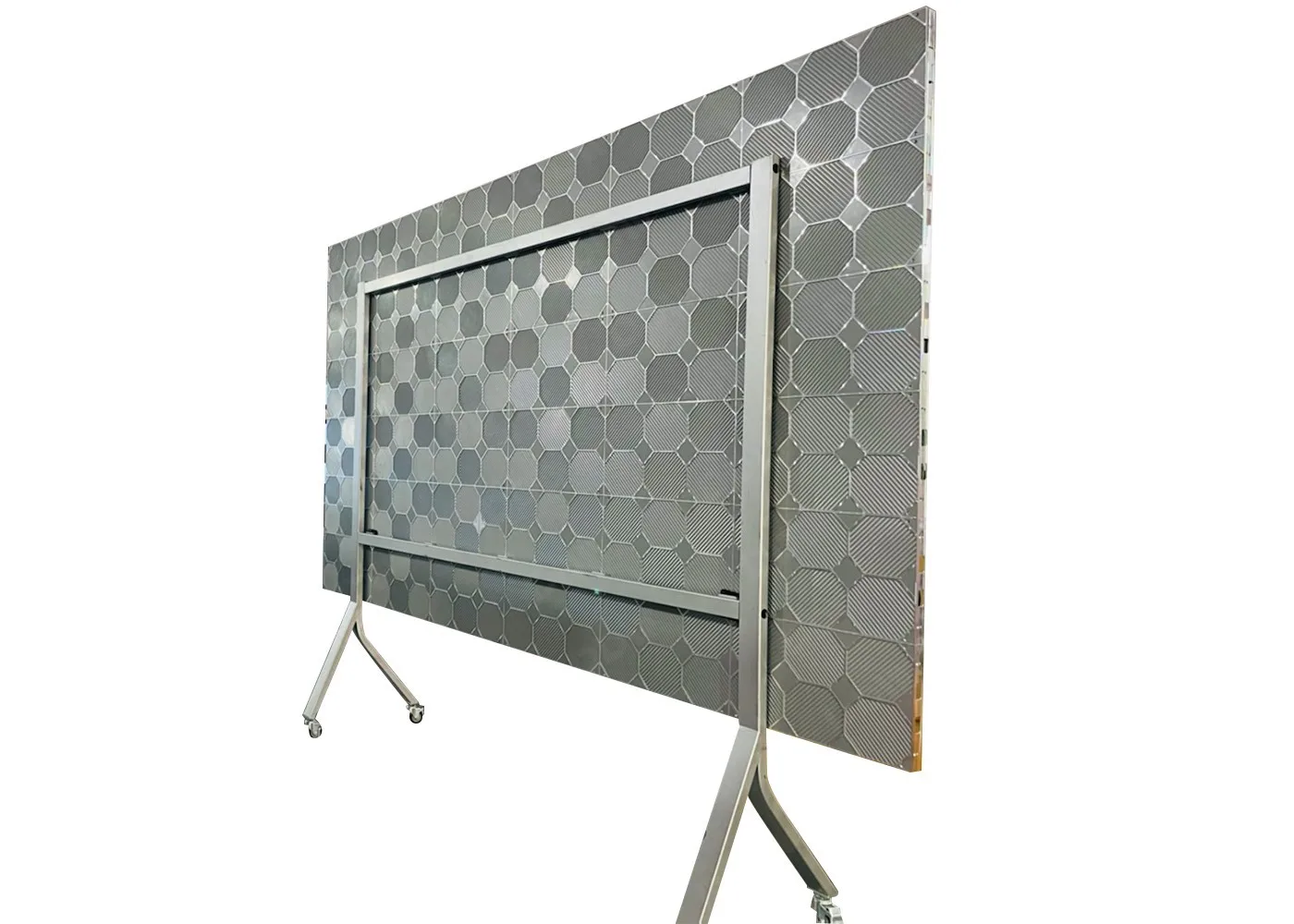

Aluminum profile support

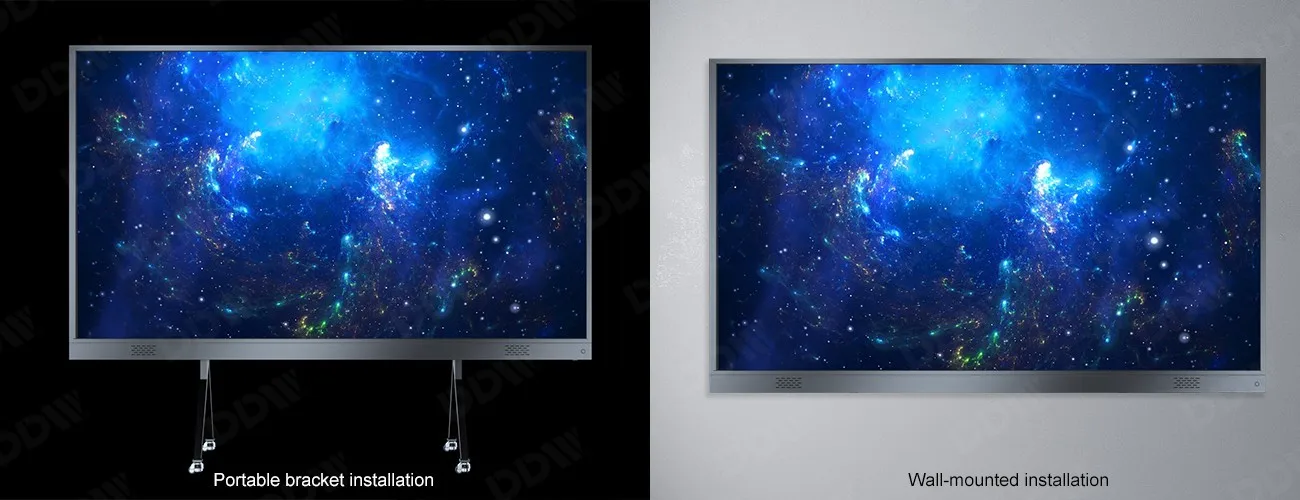

Various installation mode

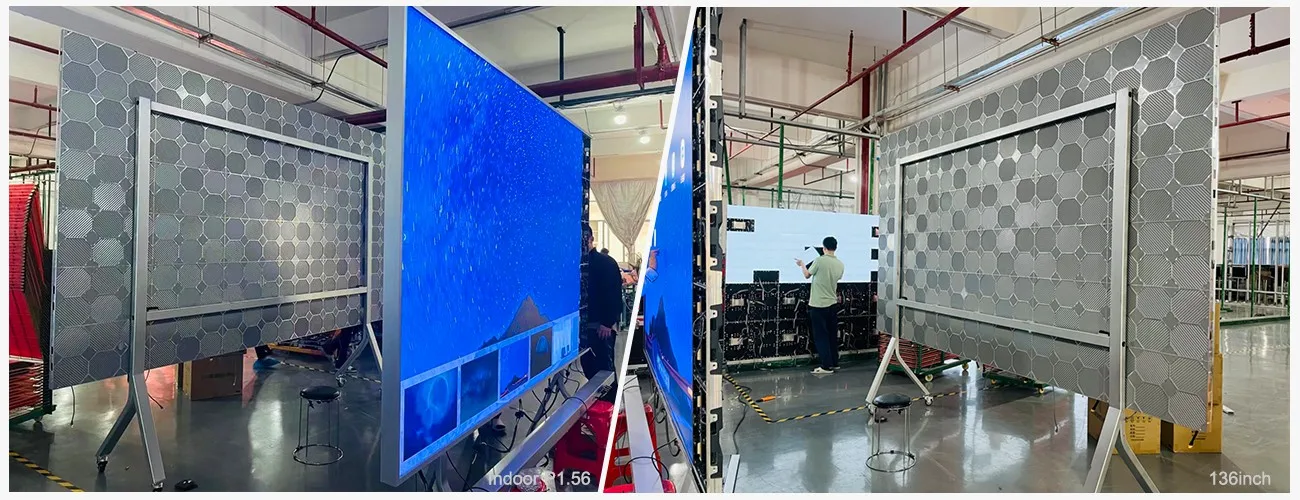

Aging test

Specifications

	P1.25 110inch	P1.56 136inch	P1.87 165inch
Product dimensions（mm)	2450150065	3008*1791.5	3608*2129
Display size（mm)	2400X1350	3000X1687.5	3600X2025
Display resolution	1920*1080	1920*1080	1920*1080
Installation mode	Wall hanging or standing	Wall hanging or standing	Wall hanging
Protection level	IP35	IP35	IP35
Peak power（W)	1600	1800	2500
Average power consumption(W)	800	1200	1670
Weight(kg)	100	120	145
Refresh rate（Hz)	3840	3840	3840
Angle of view	140°	140°	140°
Contrast ratio	5000:1	5000:1	5000:1
Color temperature	2000-9500	2000-9500	2000-9500
White Balance BrightnessCD/㎡	200-400	200-400	200-400
Operating System	Android	Android	Android
Audio Speaker	20W	20W	40W
Ai remote control	Infrared or Bluetooth	Infrared or Bluetooth	Infrared or Bluetooth
Supply Voltage	220V	220V	220V
Border Color	Silver or black	Silver or black	Silver or black
Touch function	Infrared touch	Infrared touch	/
Video conferencing	Support/PB30	Support/PB30	Support/PB30
Extended function	HDMI and USB	HDMI and USB	HDMI and USB

Accessories

Sending box

Power Supply

LED suction cup

Mounting accessories

Signal cable

Power cable

Movable power cabinet

Flight case

Related Products

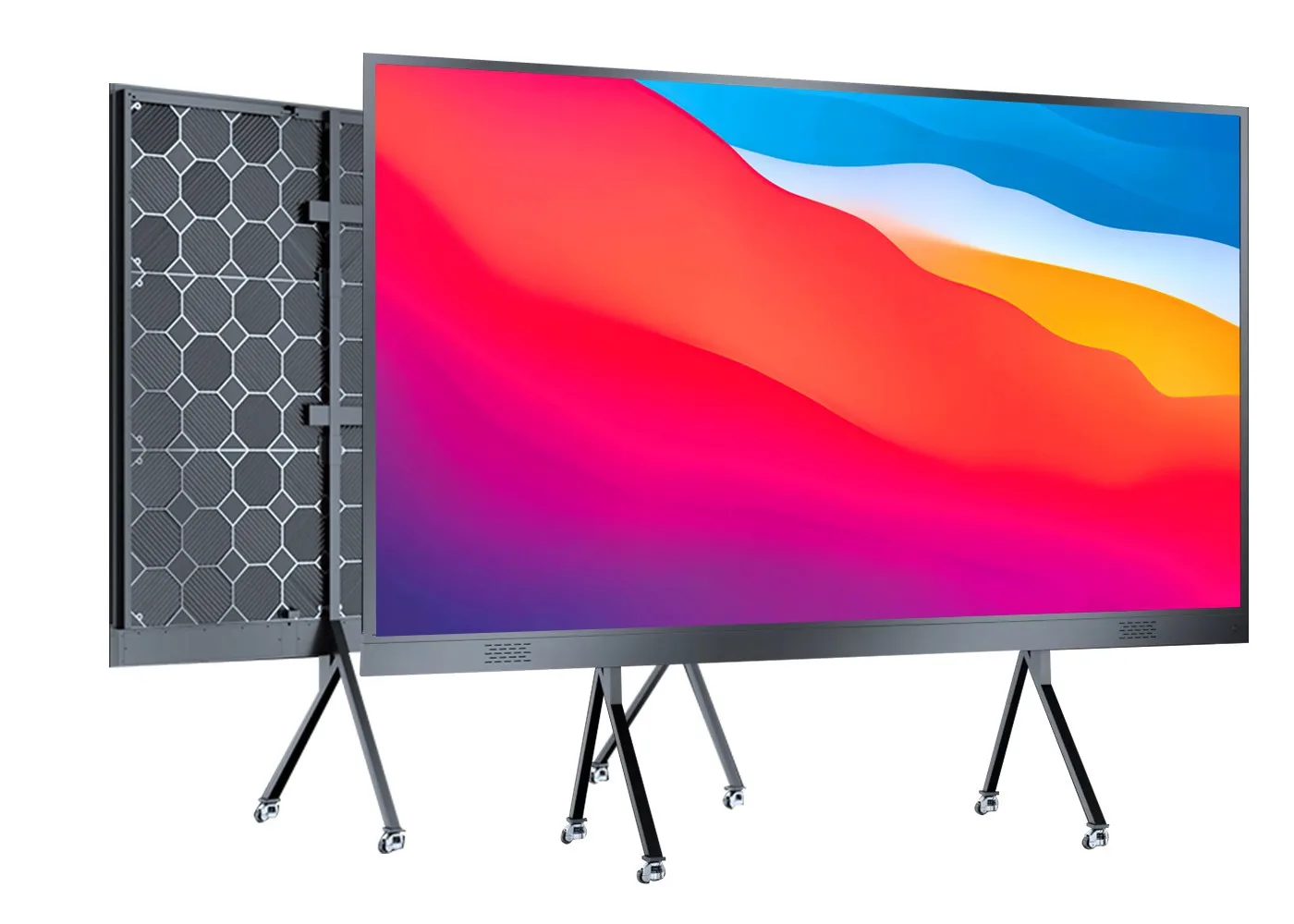

HT series Ultra fine HD LED screen

P0.93 P1.25 P1.56 1.87 600x337.5, support power backup, system backup, flash storage and EMC. support front maintenance, fixed installation and ceiling installation.

Learn More>

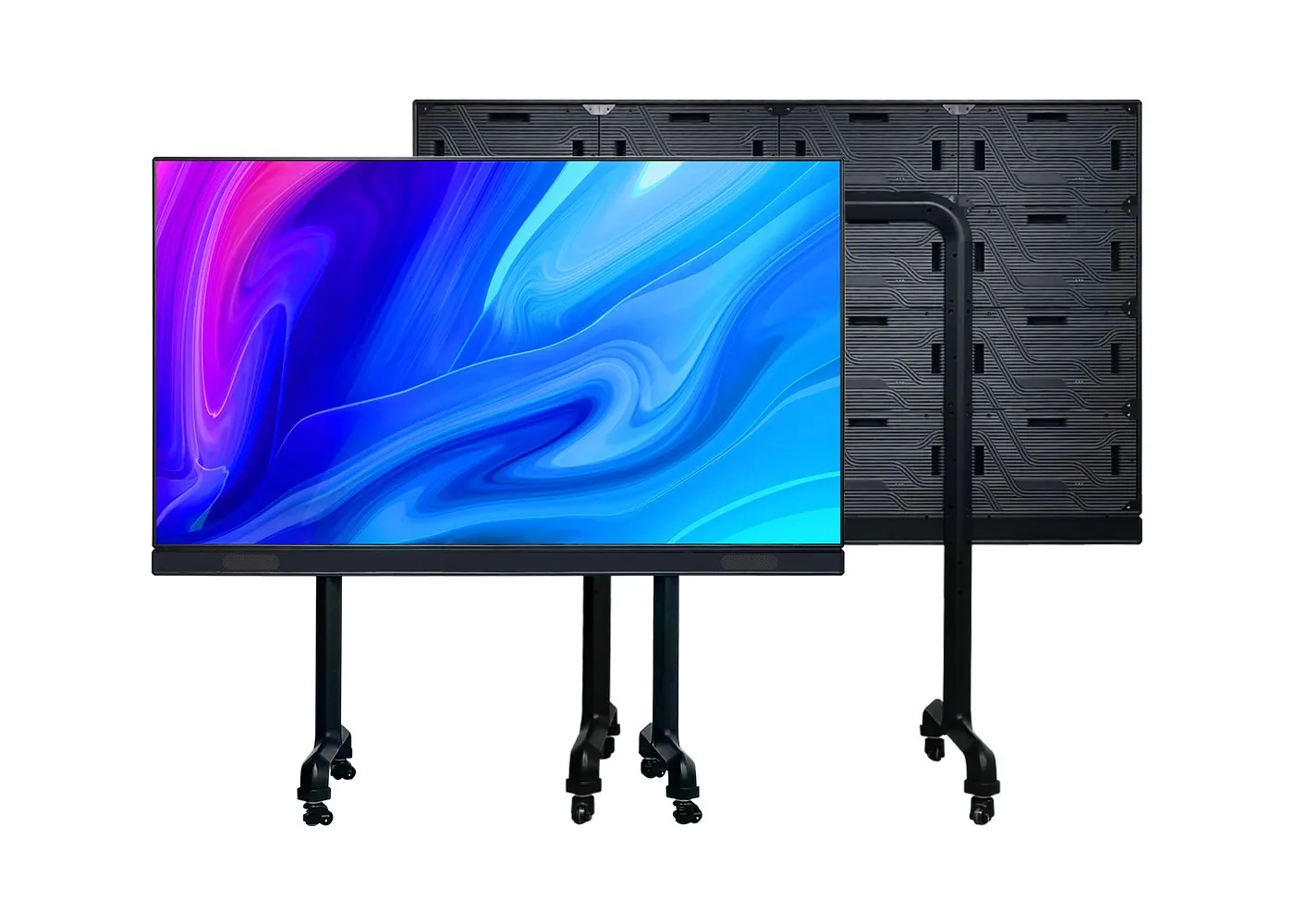

CB series All in One LED TV
