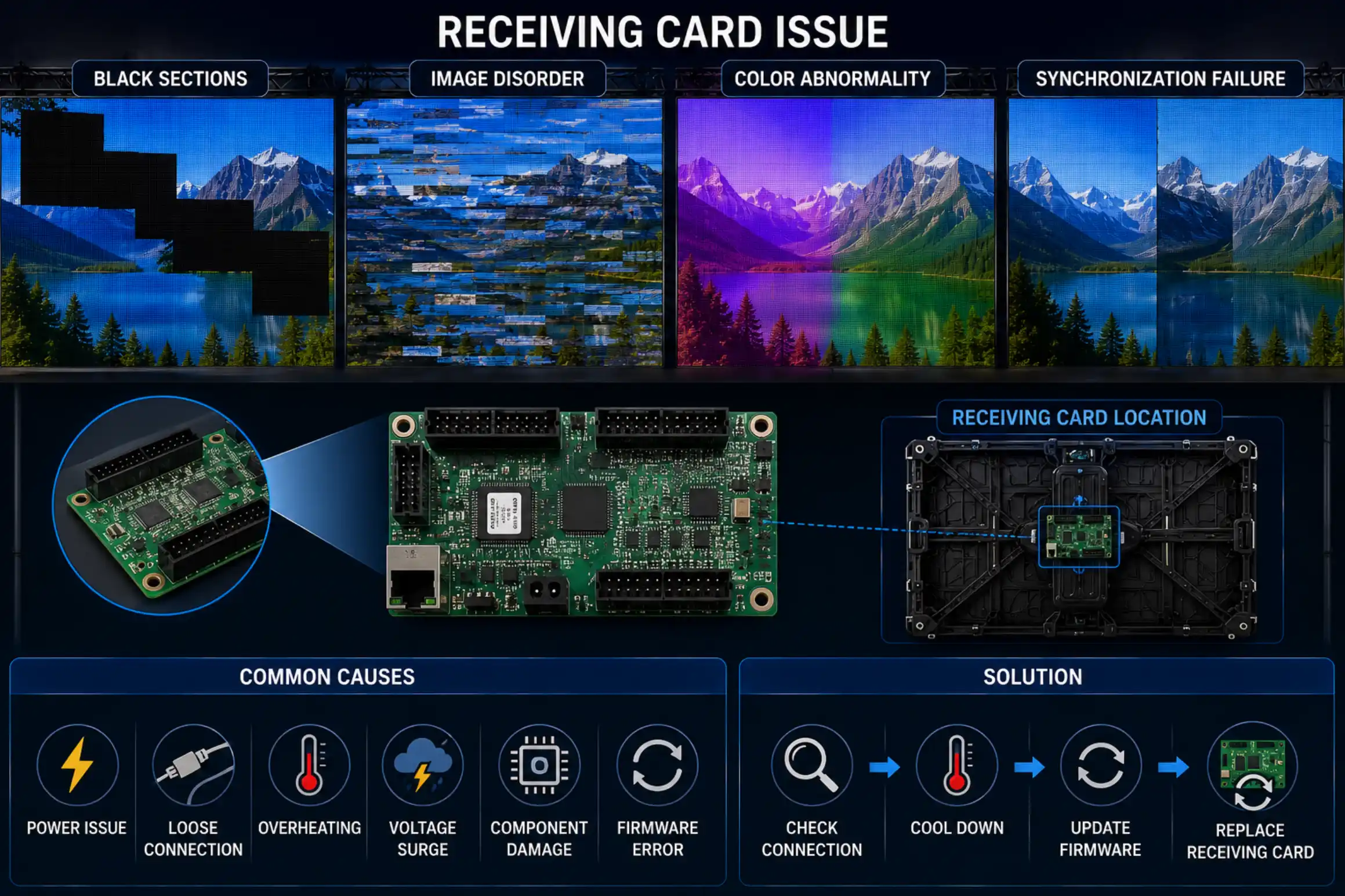

Receiving cards are responsible for processing image data inside LED displays.
If receiving cards fail, the display may experience:
- black sections
- image disorder
- color abnormality
- synchronization failure
Why Receiving Cards Are So Important
Receiving cards act as the communication bridge between:
- control system
- video processor
- LED modules
Even minor instability may affect large display areas.
Why Improper Configuration Creates Problems
Receiving card issues are not always hardware failures.
Incorrect settings may also cause:
- abnormal grayscale
- image tearing
- mapping errors
- refresh mismatch
This is especially common during:
- system upgrades
- rental reconfiguration
- processor replacement
DDW Engineer Notes
Many troubleshooting attempts fail because technicians immediately replace hardware without first checking configuration logic.
Professional diagnosis should always separate:
- hardware failure
from - software configuration issues
