Outdoor Pixel Pitch Guide

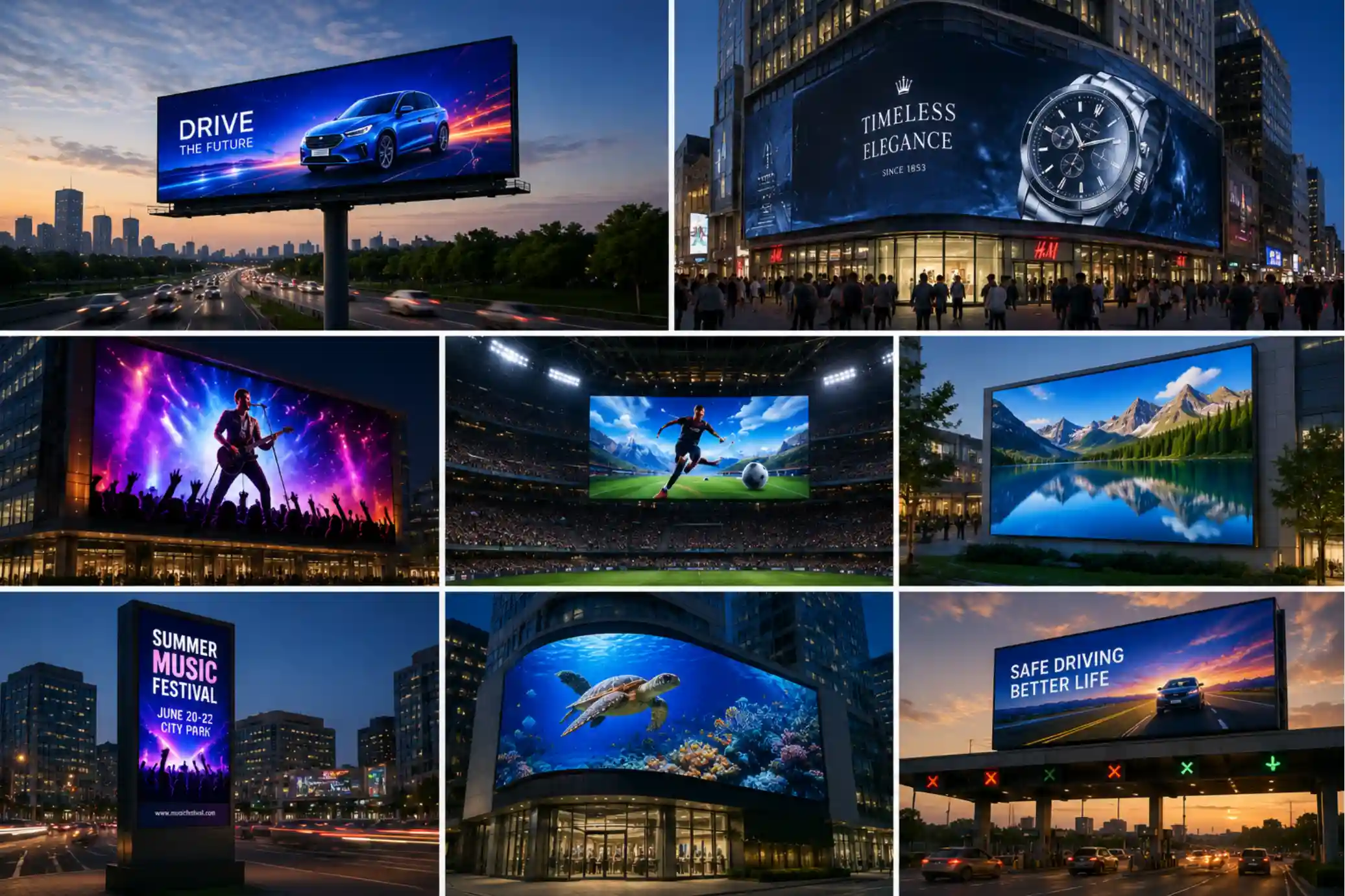

Outdoor LED projects follow very different logic compared with indoor installations.
In most outdoor applications, viewers stand much farther away, while environmental conditions become significantly more demanding.
This changes how engineers select pixel pitch.
Why Outdoor Screens Usually Use Larger Pitch
Outdoor displays prioritize:
- high brightness
- long-distance visibility
- waterproof protection
- heat resistance
- structural durability
At long viewing distances, ultra-fine pitch usually provides very limited practical advantage.
For example:
A P10 billboard viewed from 80 meters away may still look extremely clear.
Meanwhile, using P3.9 for the same project could dramatically increase cost without obvious visual improvement.

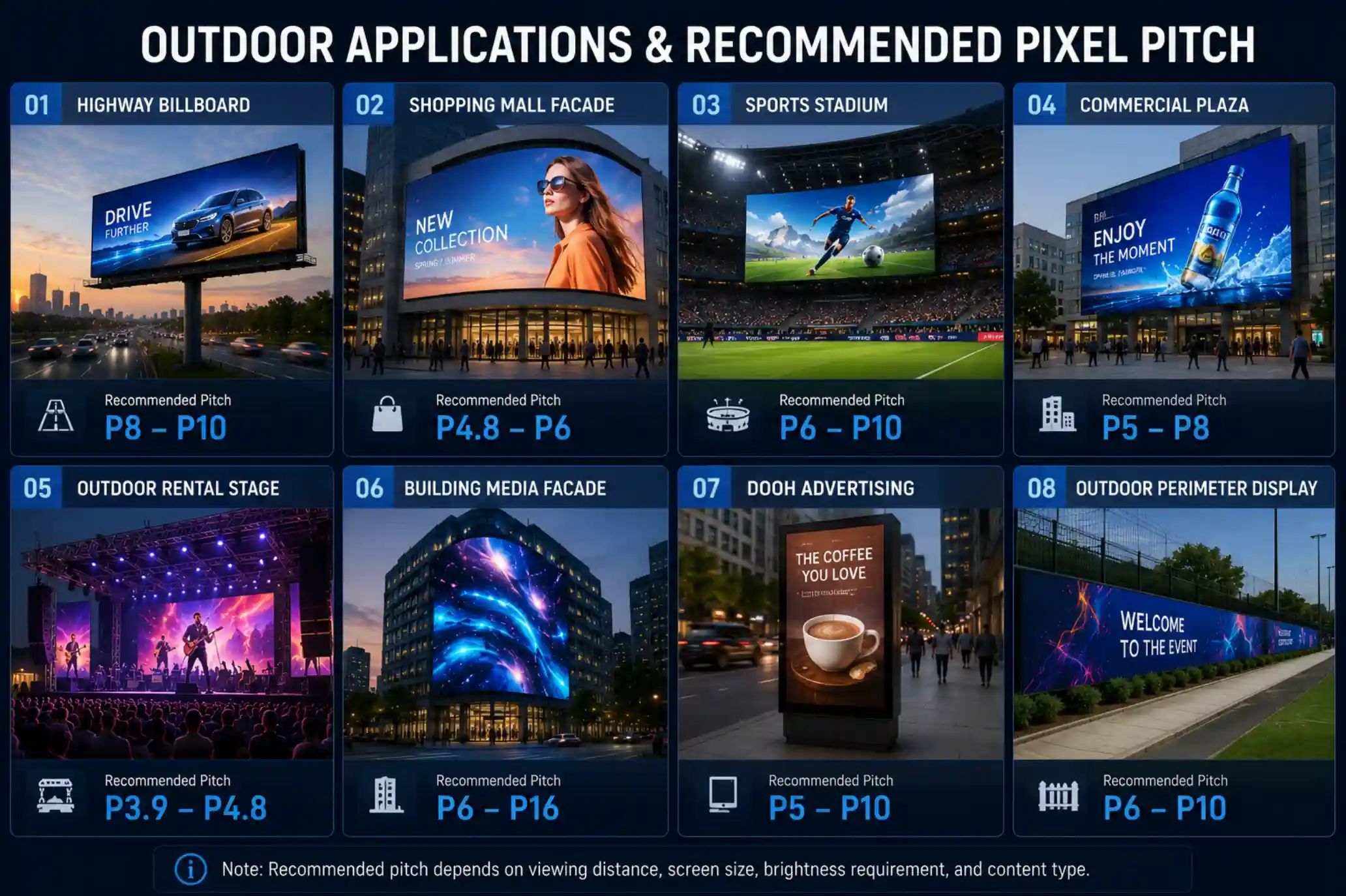

Common Outdoor Pixel Pitch Selection
Outdoor Application | Recommended Pitch |
Highway Billboard | P8–P10 |
Shopping Mall Facade | P4.8–P6 |
Sports Stadium | P6–P10 |
Commercial Plaza | P5–P8 |
Outdoor Rental Stage | P3.9–P4.8 |
Building Media Facade | P6–P16 |
DOOH Advertising | P5–P10 |
Why Brightness Becomes More Important Outdoors
Unlike indoor environments, outdoor LED displays must compete directly with:
- sunlight
- rain
- heat
- dust
- humidity
This is why outdoor projects often prioritize:
- brightness
- IP rating
- cooling performance
- power stability
rather than extremely fine pixel pitch.
In Middle East outdoor projects especially, heat resistance and cabinet ventilation are often more critical than ultra-high resolution.
Outdoor Rental vs Outdoor Fixed Installation
Outdoor rental LED screens usually use:
- 9
- 8
because audiences may still view the screen relatively close during concerts and live events.
Outdoor fixed billboards, however, often use:
- P6
- P8
- P10
because viewers are typically much farther away.
DDW Engineer Notes
One common mistake in outdoor projects is selecting very small pitch simply for marketing purposes.
In reality, outdoor engineering should focus more on:
- visibility under sunlight
- long-term reliability
- waterproof design
- maintenance access
- operating stability
Outdoor LED projects are engineering systems, not only resolution competitions.
